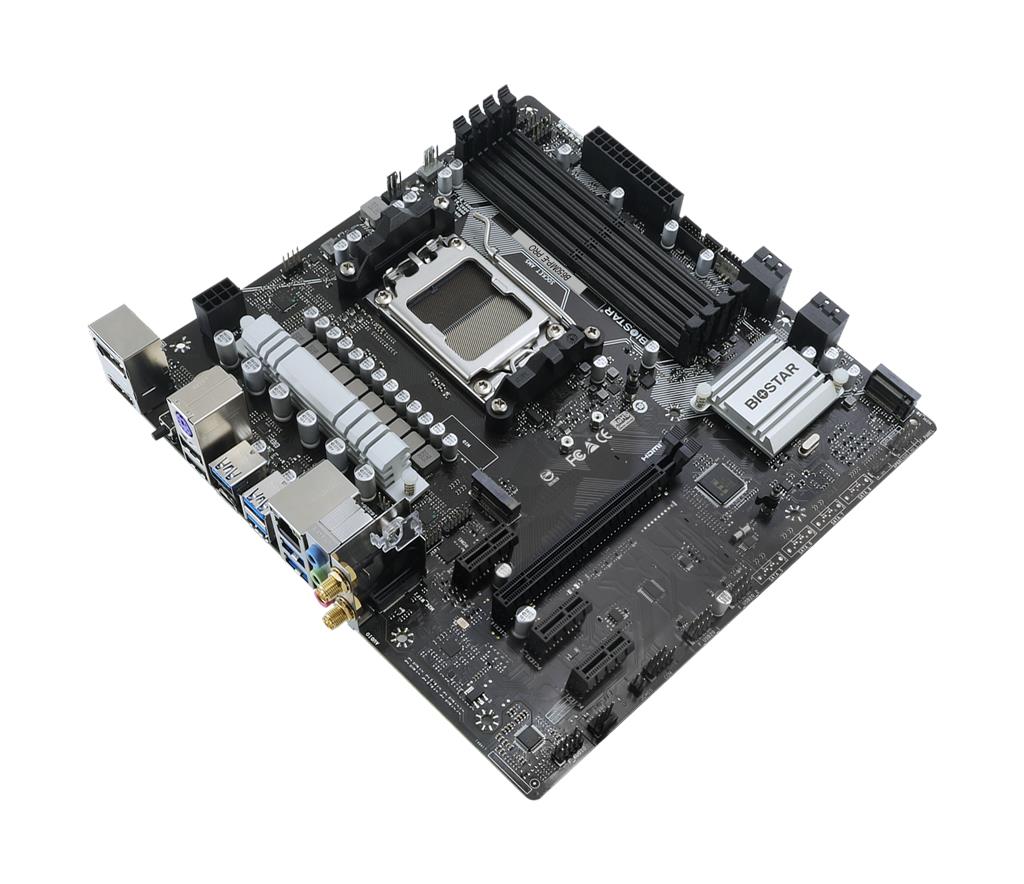

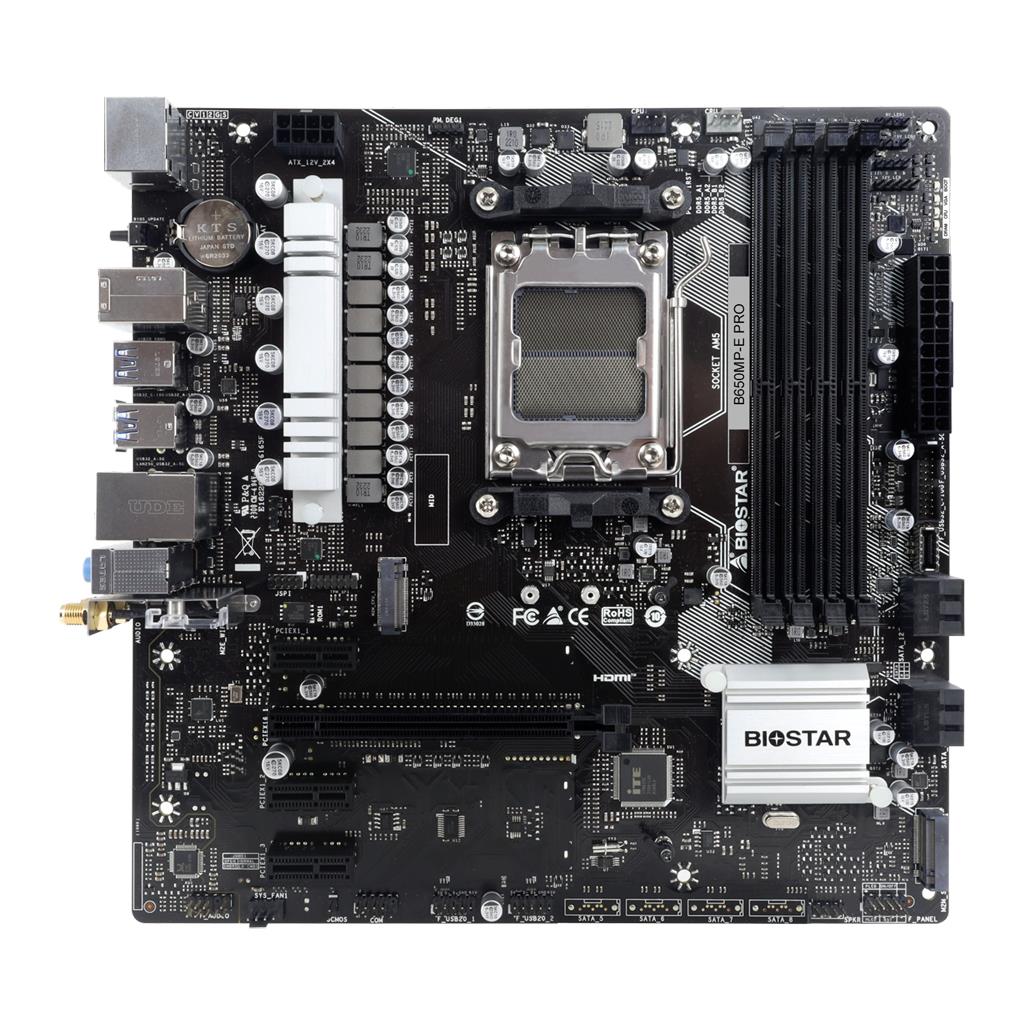

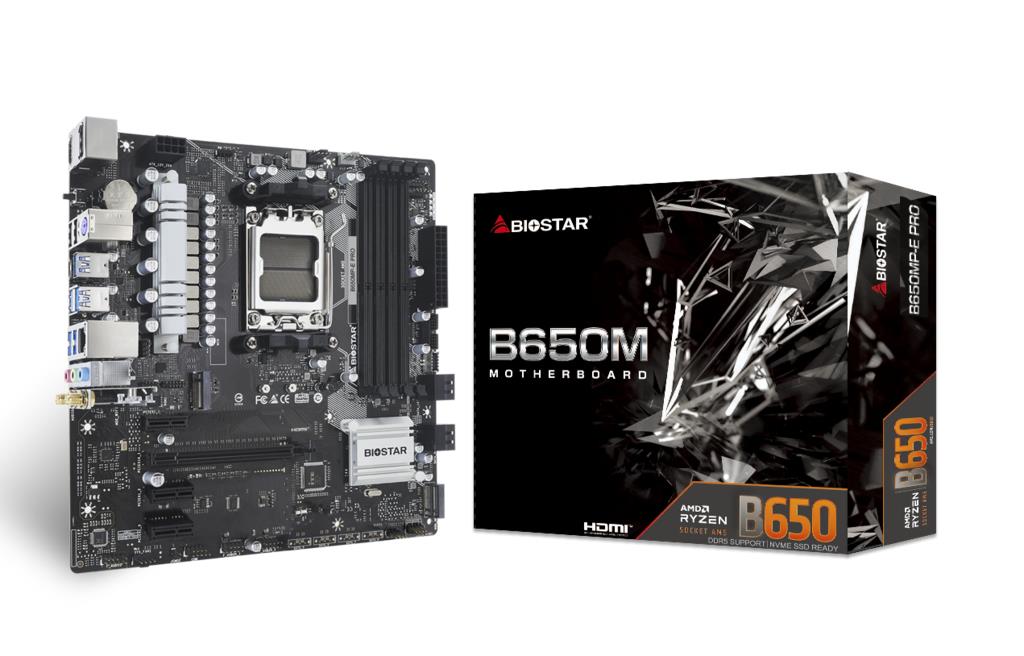

Biostar B650MP-E PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Laost otsas
Laost otsas
| Kaal | 0,49 kg |
|---|---|
| Vendor | BIOSTAR |
| M.2 | 1 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 4.0 1x | 3 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | 1 |
| WiFi antenna port | 2 |
| SATA | Yes |
| SATA 3.0 | Yes |
| Serial | Yes |
| Model | B650MP-E PRO |
| Chipset | AMD B650 |
| Socket | SAM5 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5200/5400/5600/6000 MHz |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004284 cubm |
| Product Net Weight | 0.49 kg |
| Unit Calculated Weight | 1.01 kg |
| Summary | Biostar B650MP-E PRO. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,NVMe,SATA |
| Supported storage drive types | HDD & SSD |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD B650 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 1.x) slots | 2 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| Depth | 244 mm |
| Width | 244 mm |
| Cables included | SATA |
| Drivers included | Yes |
| Manufacturer Code | B650MP-EPRO |
| ELKO Code | 1406908 |
| Warranty | 36 |
