be quiet! PURE BASE 501 Airflow Window White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5″. Width: 231 mm, Depth: 450 mm, Height: 463 mm
6 laos
6 laos
Comfortably compact
Pure Base 501 Airflow Window White is a traditional, timeless and versatile be quiet! ATX case with compact dimensions.
REDUCED TO THE MAX
Classic appearance
Without any distractions, Pure Base 501 Airflow Window White is reduced to excel at its core functions and is aimed at users that appreciate an
unagitated presentation.
PERFECT CASE FAN
Fan blades optimized for high airflow

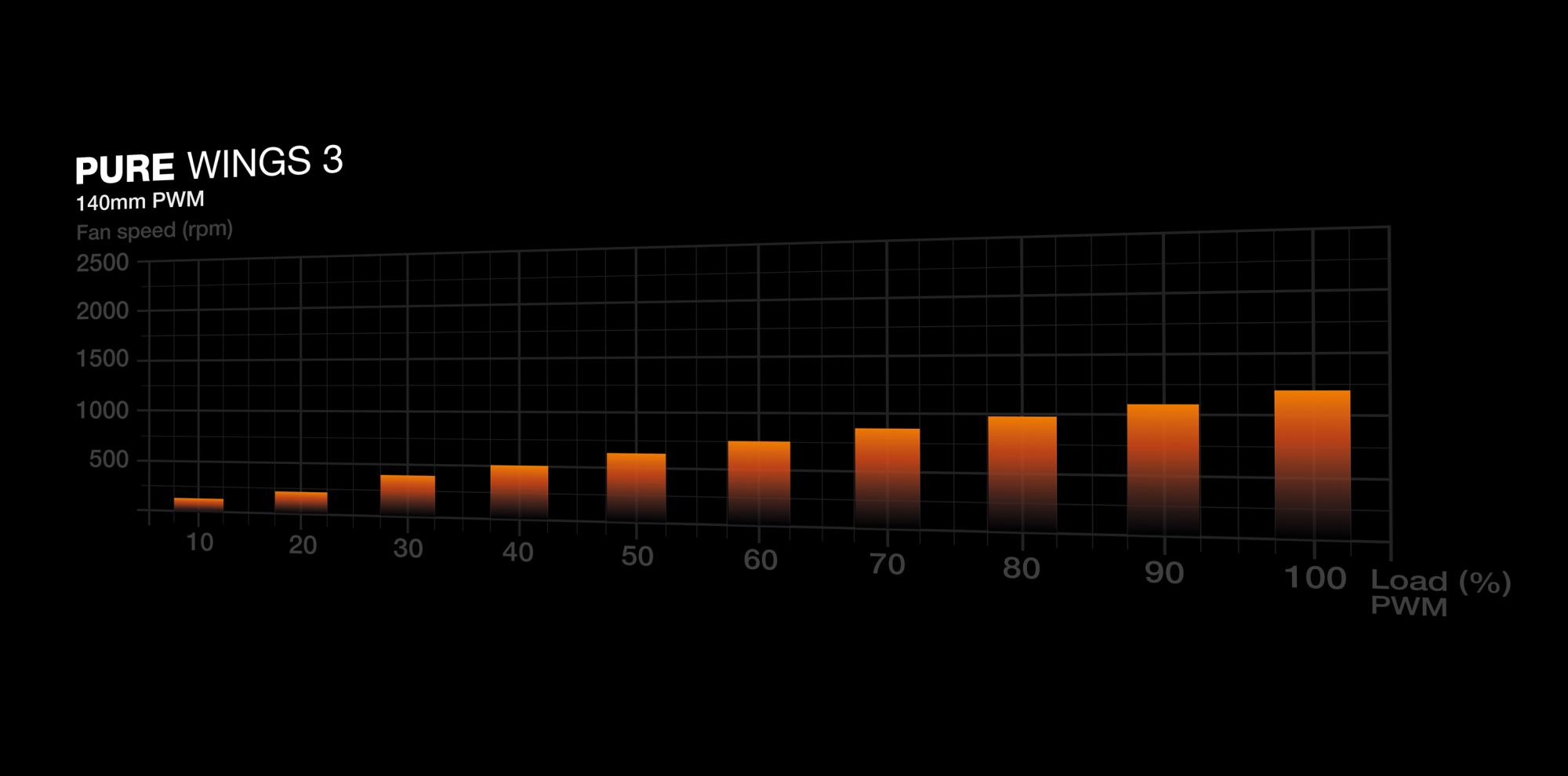

With optimization for maximum airflow, Pure Wings 3 140mm PWM is the perfect choice for Pure Base 501 Airflow Window White. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 140mm PWM White provides the performance that is needed for demanding configurations.
MORE THAN MEETS THE EYE
Generous space for high-end hardware

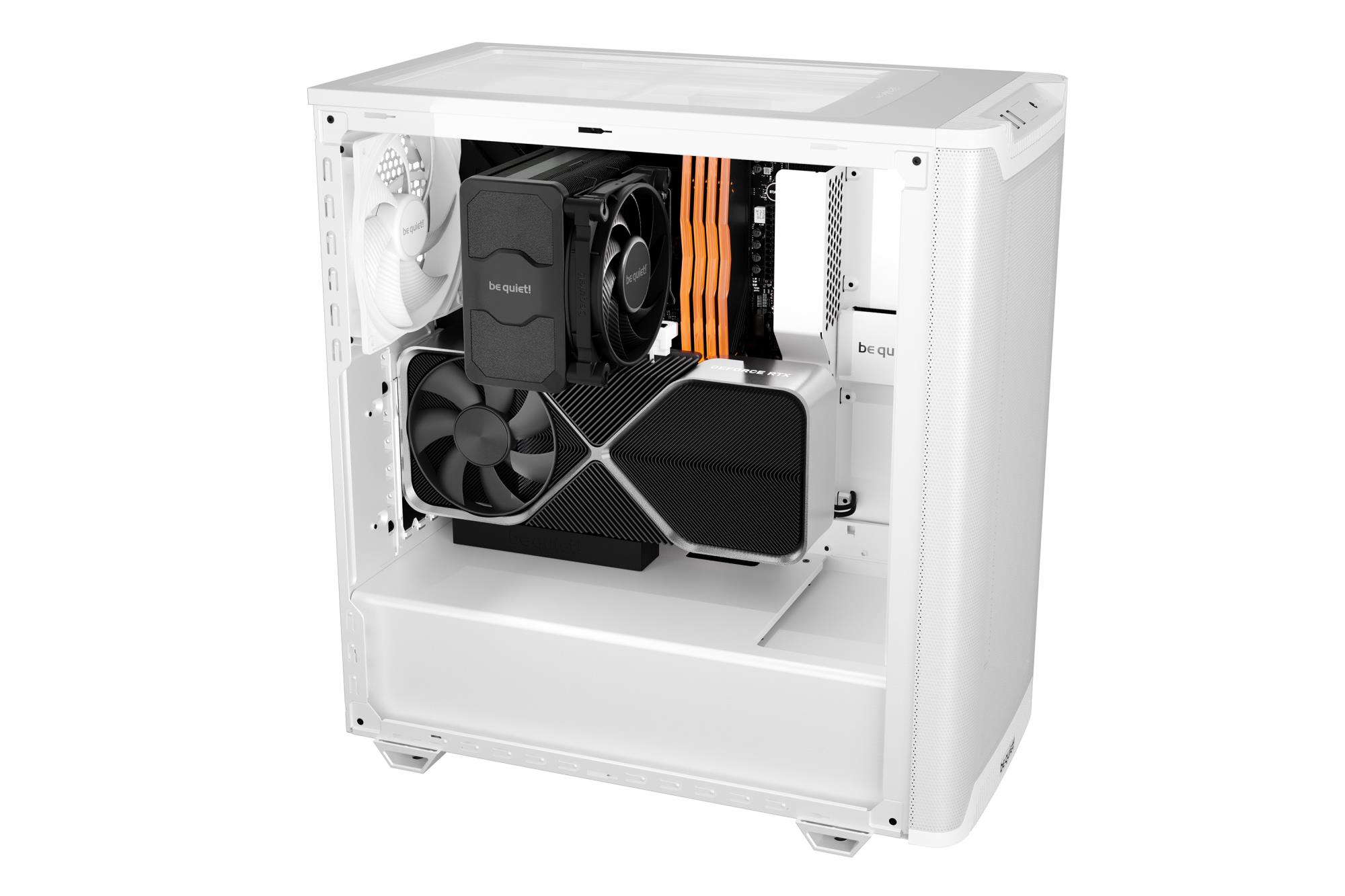

Despite its compact dimensions, Pure Base 501 Airflow Window White offers enough space for high-end graphics cards and large coolers. 3 fans or a radiator up to 360mm can be installed easily at the front, while the top area provides space for up to 2 fans or a radiator up to 240mm.
WAY UP!
With rotatable PCIe slots

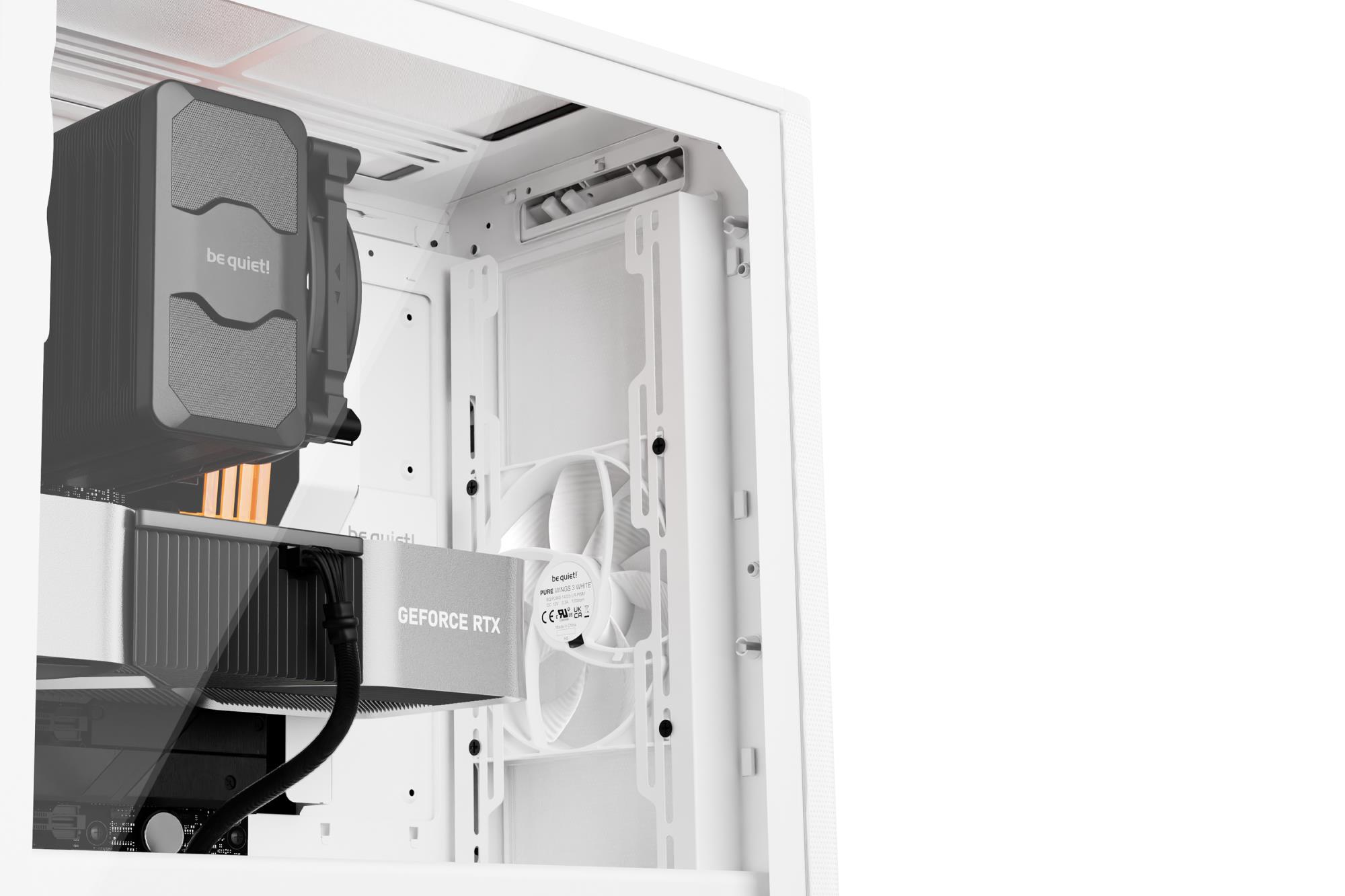

Why not try something else with your GPU? The PCIe slots of the Pure Base 501 Airflow Window White can be rotated 90° for an upright installation of wide high-end graphics cards. The spacing is perfect for the optional be quiet! Riser Cable, whose foam base provides excellent anti-sag support for graphics cards in vertical orientation.
INVENTORY MANAGEMENT
With smart cable routing options
As a compact PC case, Pure Base 501 Airflow Window White optimally uses the offered space. Thanks to cleverly integrated cable routing options, it makes cable management a breeze.
CONNECT WITH ME
State-of-the-art technology for your system
A USB 3.2 Gen. 2 Type C connector and 2 Type A ports on the front I/O port for fast and easy connectivity.
SHOW ME WHAT YOU’VE GOT
A perfect view inside your PC
The high-quality, fully-windowed side panel offers a perfect view of the components inside your Pure Base 501 Airflow Window White. The window is made of tinted and tempered glass with white painted side bars.
| Vendor | BE QUIET |
|---|---|
| Summary | be quiet! PURE BASE 501 Airflow Window White. Form factor: Midi Tower, Type: PC, Product colour: White. Supported power supply form factors: ATX, PS2. Front fans installed: 1x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5". Width: 231 mm, Depth: 450 mm, Height: 463 mm |
| Anti-dust filter | Yes |
| Form factor | Midi Tower |
| Material | Acrylonitrile butadiene styrene (ABS)/Steel/Tempered glass |
| Maximum CPU cooler height | 178 mm |
| Maximum PSU length | 180 mm |
| Number of 2.5" bays | 5 |
| Number of 3.5" bays | 2 |
| Number of expansion slots | 7 |
| On/off button | Yes |
| Product colour | White |
| Reset button | Yes |
| Side window | Yes |
| Supported motherboard form factors | ATX/micro ATX/Mini-ITX |
| Type | PC |
| Power supply included | No |
| Supported power supply form factors | ATX/PS2 |
| Audio input | Yes |
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 1x 140 mm |
| Front radiator sizes supported | 120/140/240/280/360 mm |
| Maximum air pressure | 0.96 mmH2O |
| Maximum airflow | 57.4 cfm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Pulse-width modulation (PWM) support | Yes |
| Rear fans diameters supported | 120/140 mm |
| Rear fans installed | 1x 140 mm |
| Rear radiator sizes supported | 120/140 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 120/240 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Compliance certificates | CE/REACH/RoHS/UKCA |

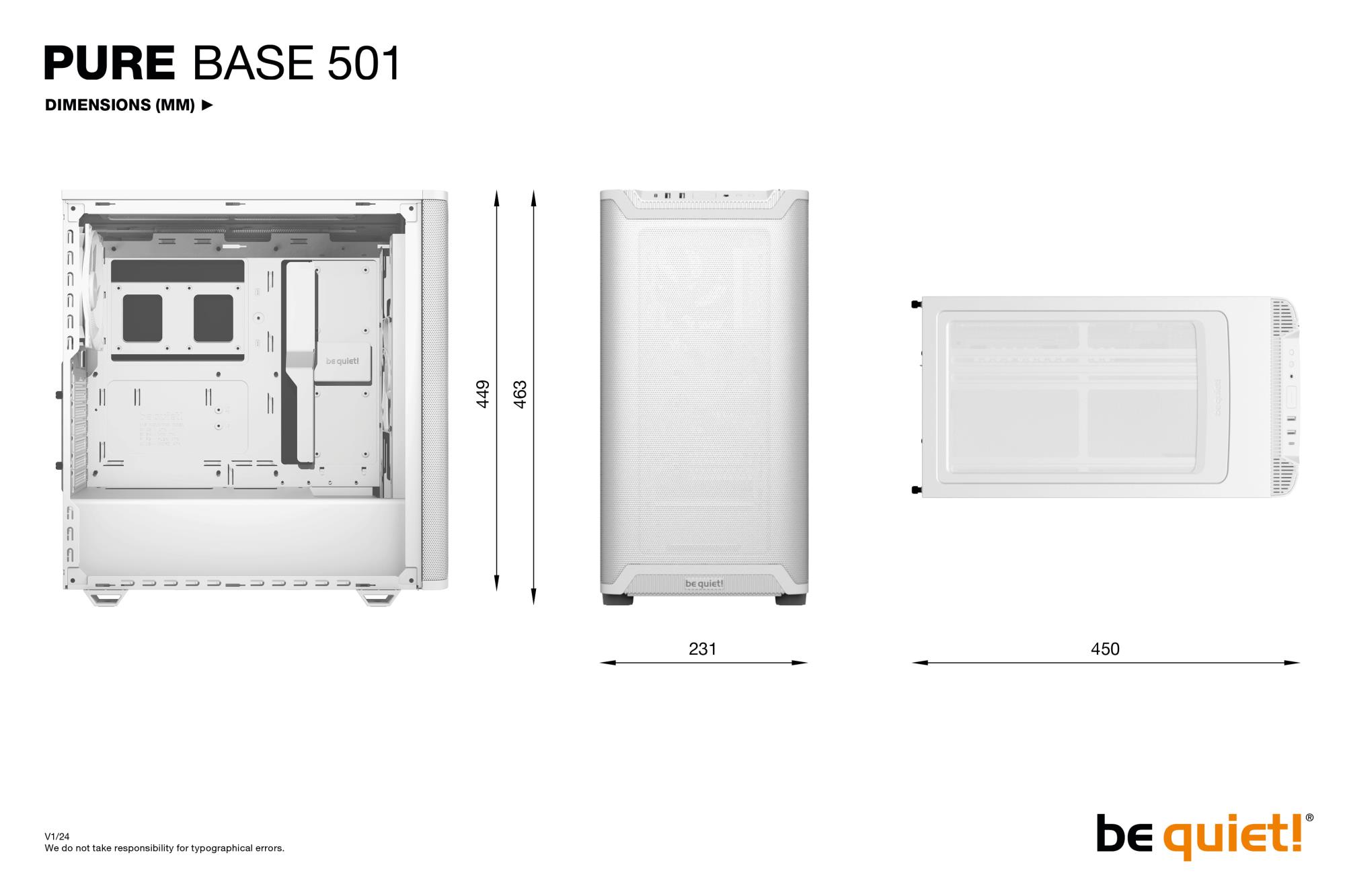

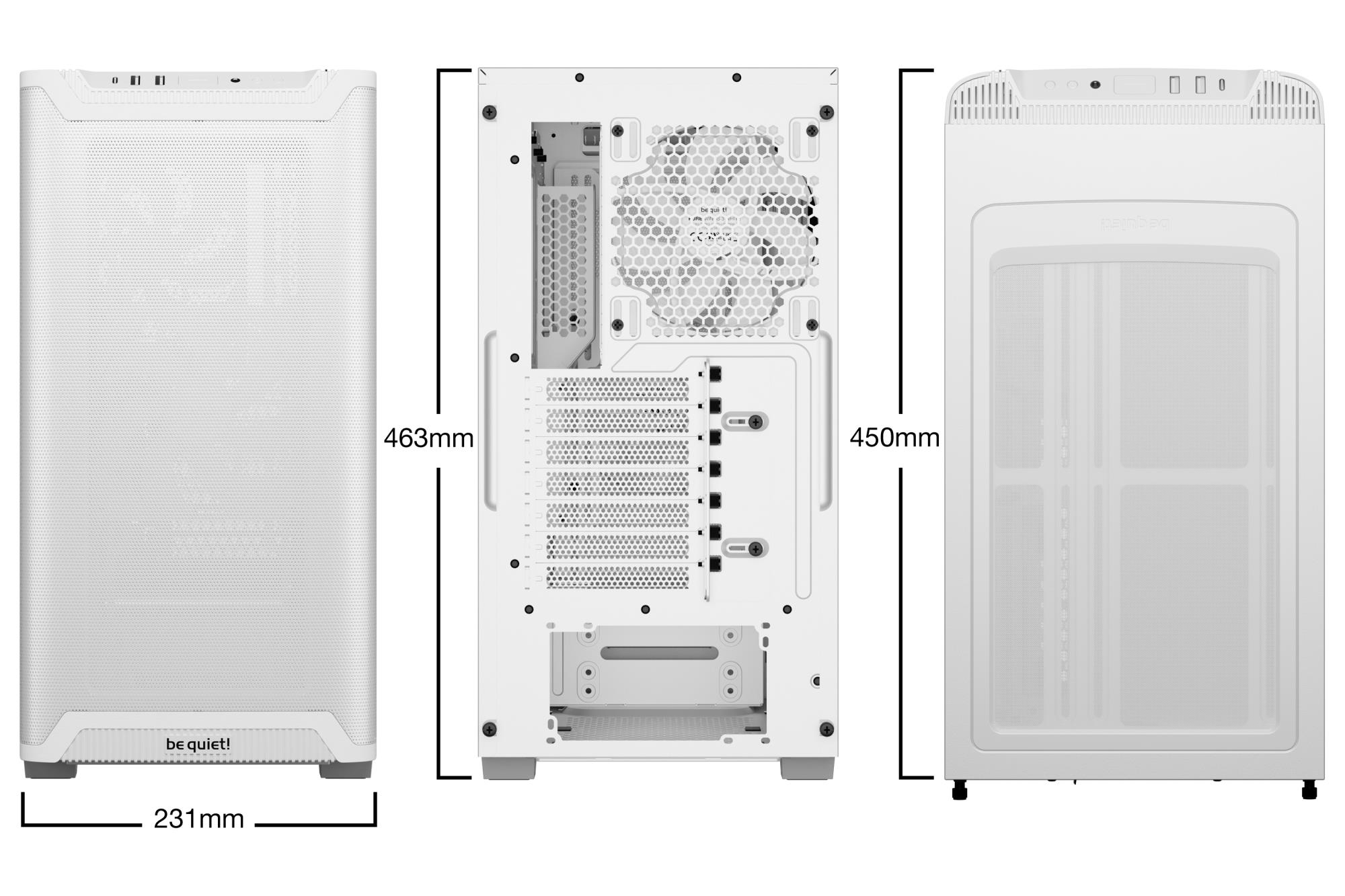

| Depth | 450 mm |
| Height | 463 mm |
| Weight | 7200 g |
| Width | 231 mm |
| Package depth | 518 mm |
| Package height | 503 mm |
| Package weight | 8400 g |
| Package width | 292 mm |
| Model name | BGW75 |
| Model | Pure Base 501 Airflow Window White |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.076/0.07665 cubm |
| Unit Calculated Weight | 8.65 kg |
| Case product features | Transparent panel |
| Cooling & Ventilation System | front 1x Pure Wings 3 140mm PWM White; rear 1x Pure Wings 3 140mm PWM White |
| Manufacturer Code | BGW75 |
| ELKO Code | 1429299 |
| Warranty | 24 |
