| Vendor | BE QUIET |
|---|---|

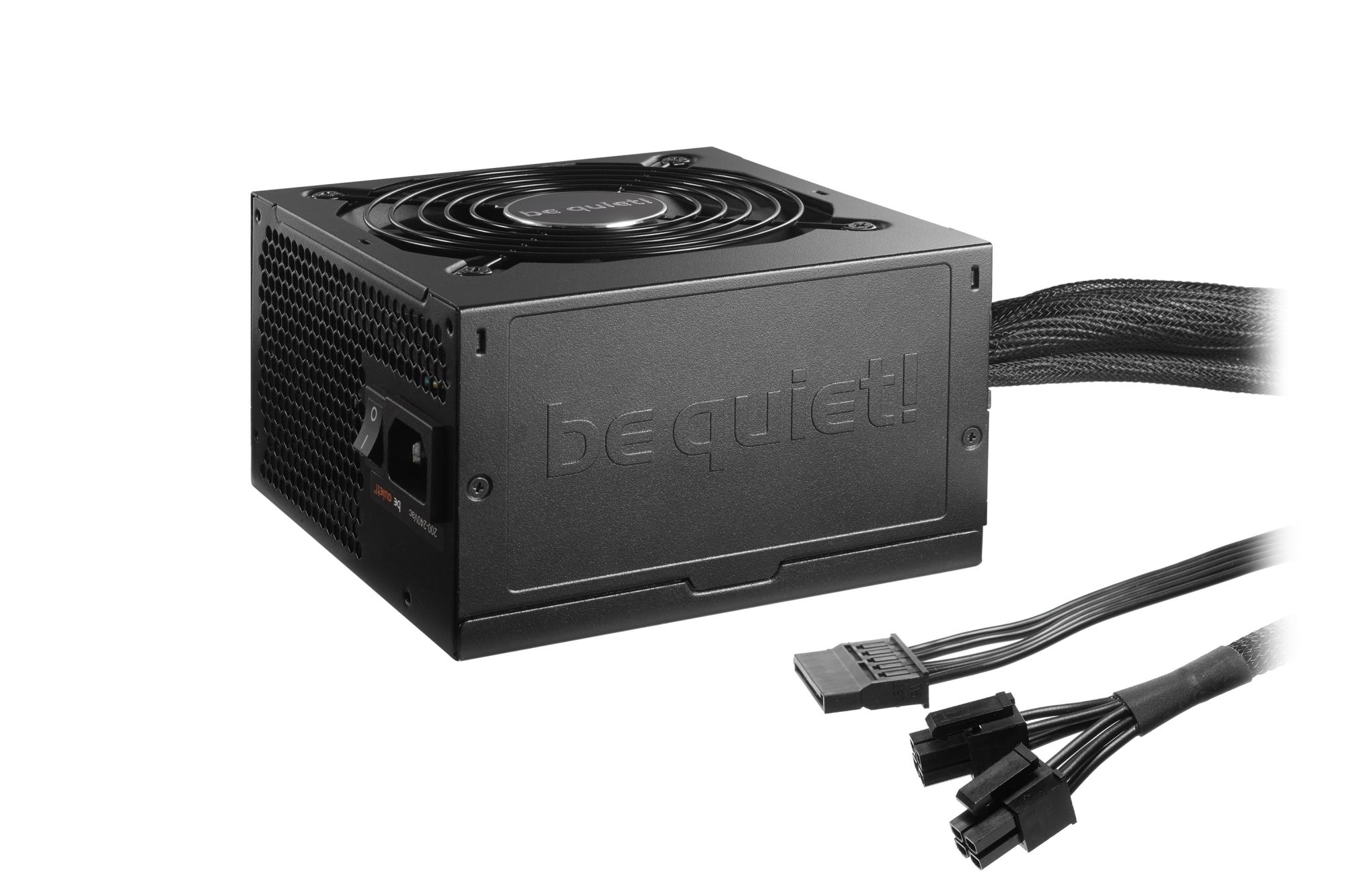

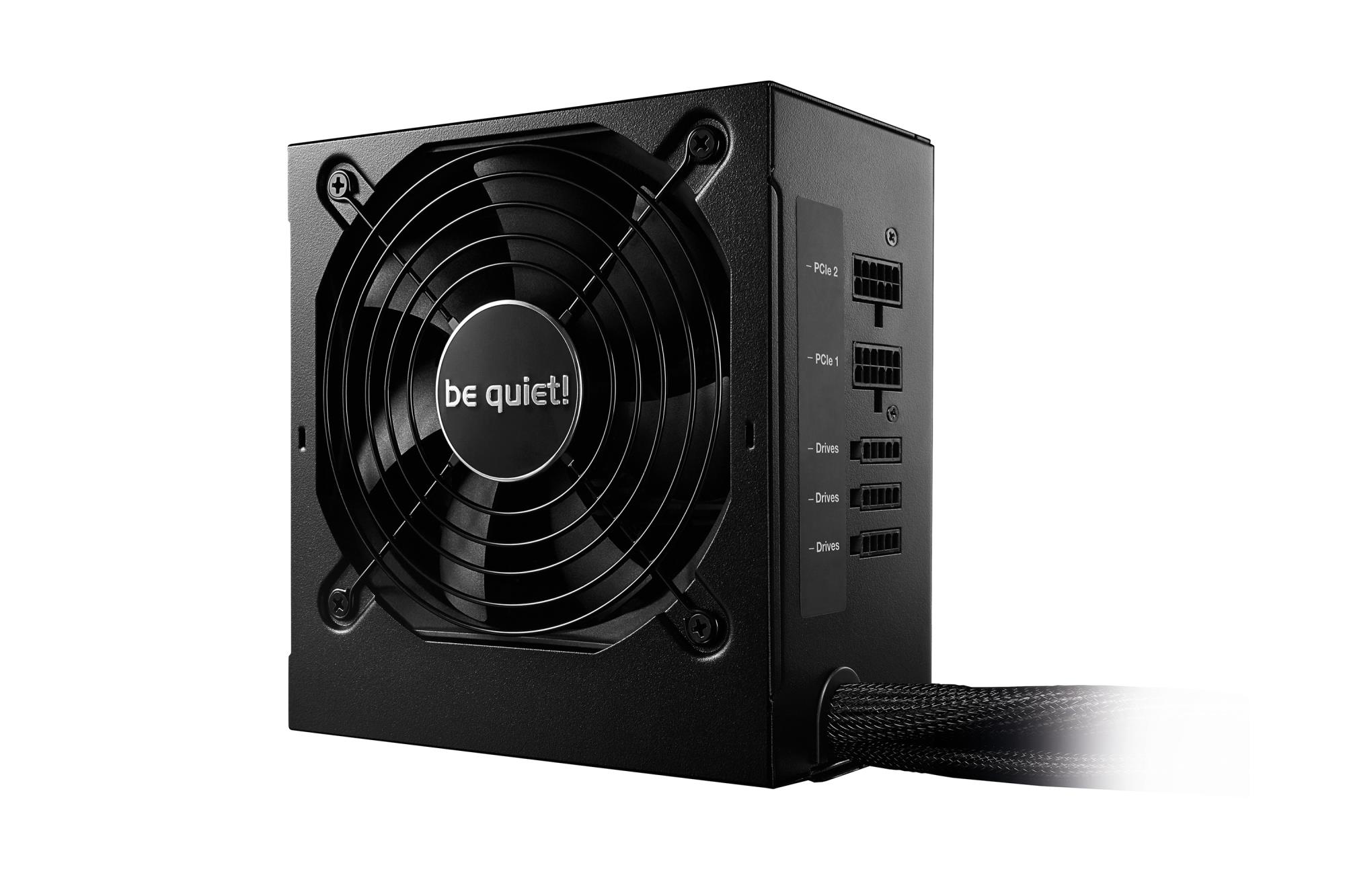

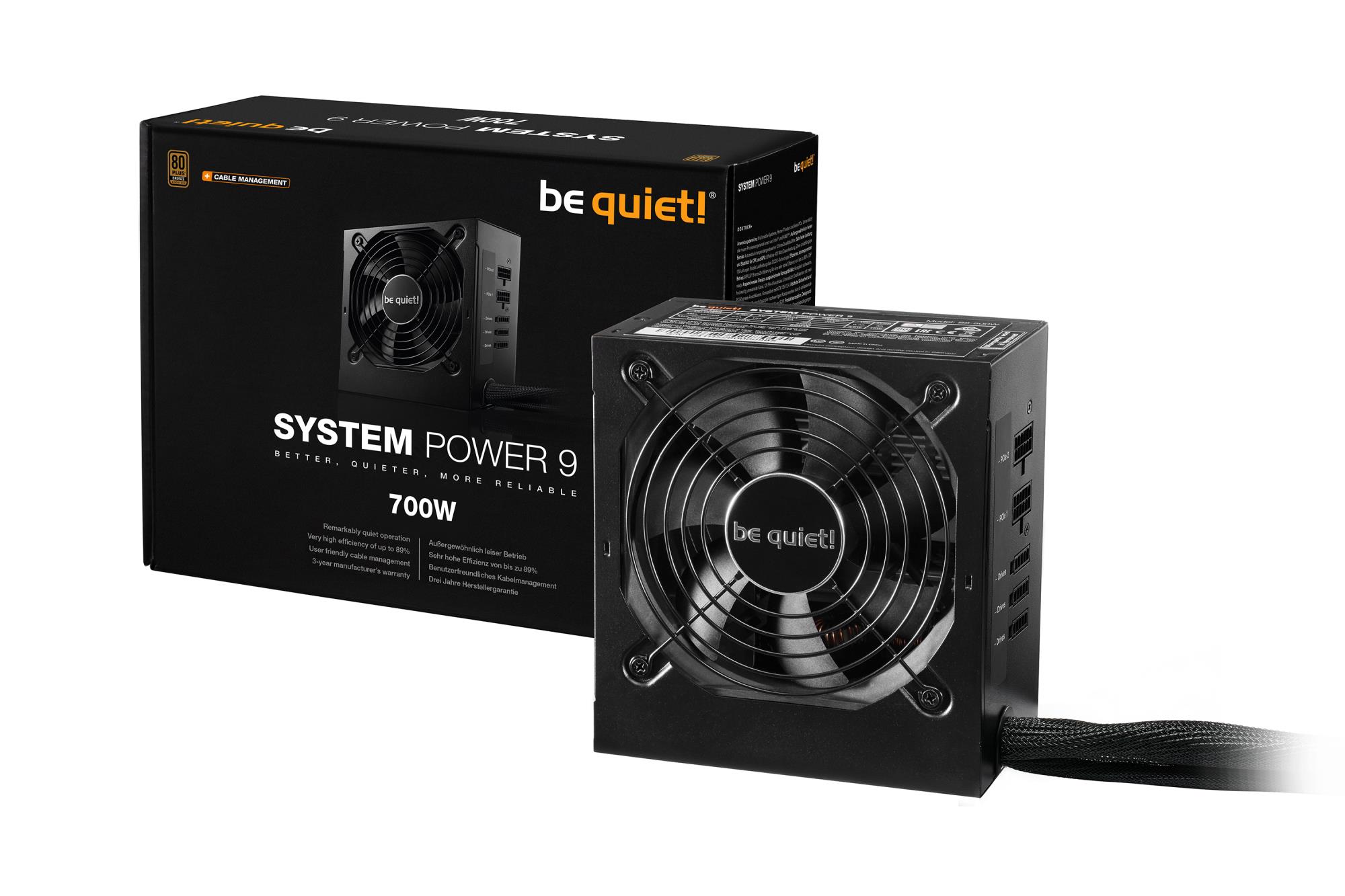

| Summary | be quiet! System Power 9, 700W CM. Total power: 700 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,670 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PCIe, SATA |
| AC input frequency | 50 Hz |
| AC input voltage | 200 – 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 89 % |
| Hold time | 17 ms |
| Input current | 6 A |
| Max output current (+12V1) | 33 A |
| Max output current (+12V2) | 25 A |
| Max output current (+3.3V) | 24 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 700 W |
| Cabling type | Semi-Modular |

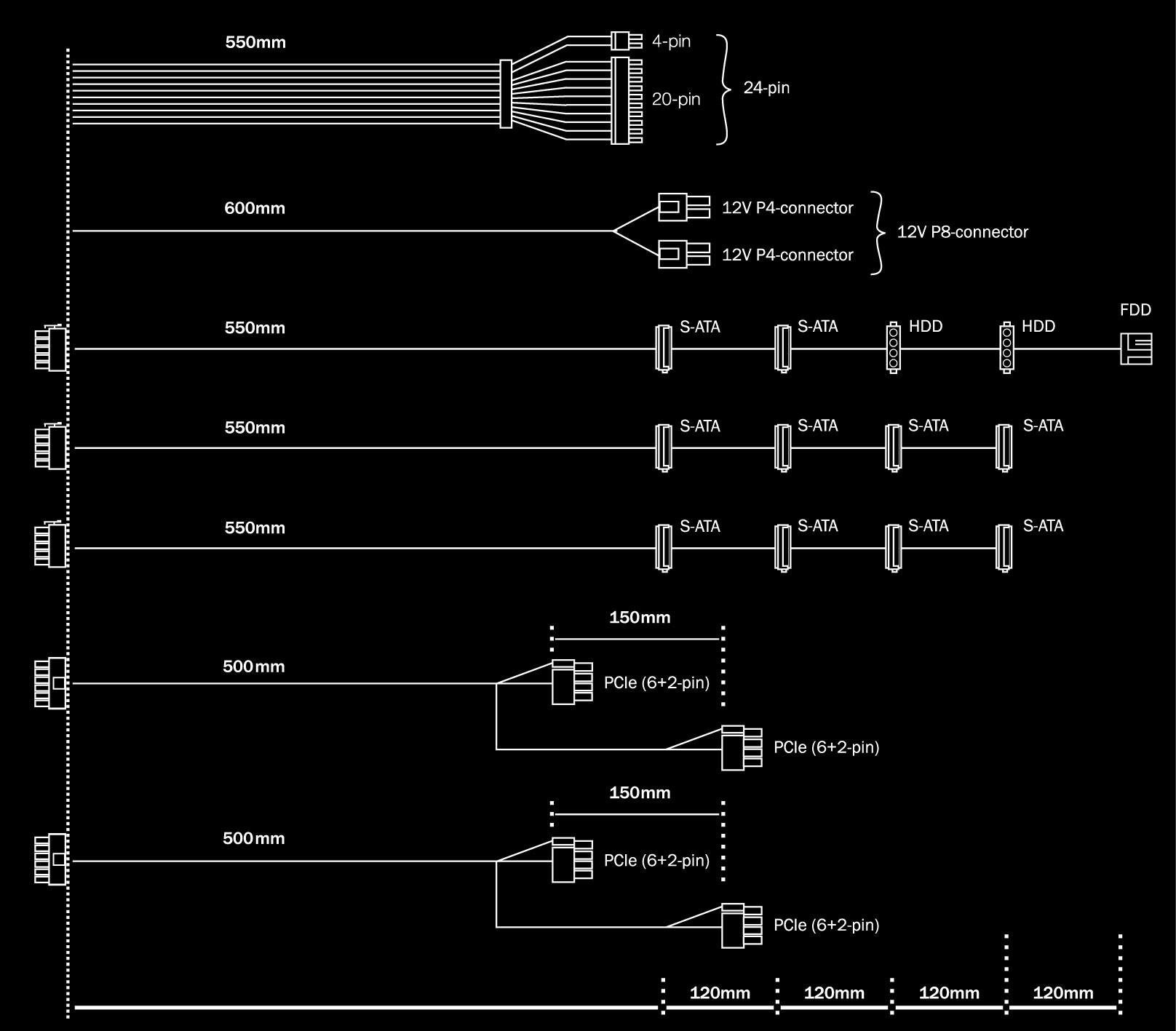

| CPU power cable length | 600 mm |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 550 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 10 |
| PCI Express power cable length | 500 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| SATA power cable length | 550/670 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.51 |
| Bearing technology | Sleeve |
| Compatible products | Intel C6/C7 |
| EPS version | 2.92 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Cables included | PCIe,SATA |
| Certification | CE, CB, TÜV, RCM, CU |
| Compliance certificates | RoHS |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1690 g |
| Width | 150 mm |
| Manual | Yes |
| Package depth | 268 mm |
| Package height | 195 mm |
| Package type | Box |
| Package weight | 2440 g |
| Package width | 97 mm |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 15340 g |
| Master (outer) case height | 556 mm |
| Master (outer) case length | 215 mm |
| Master (outer) case width | 311 mm |
| Products per master (outer) case | 6 pc(s) |

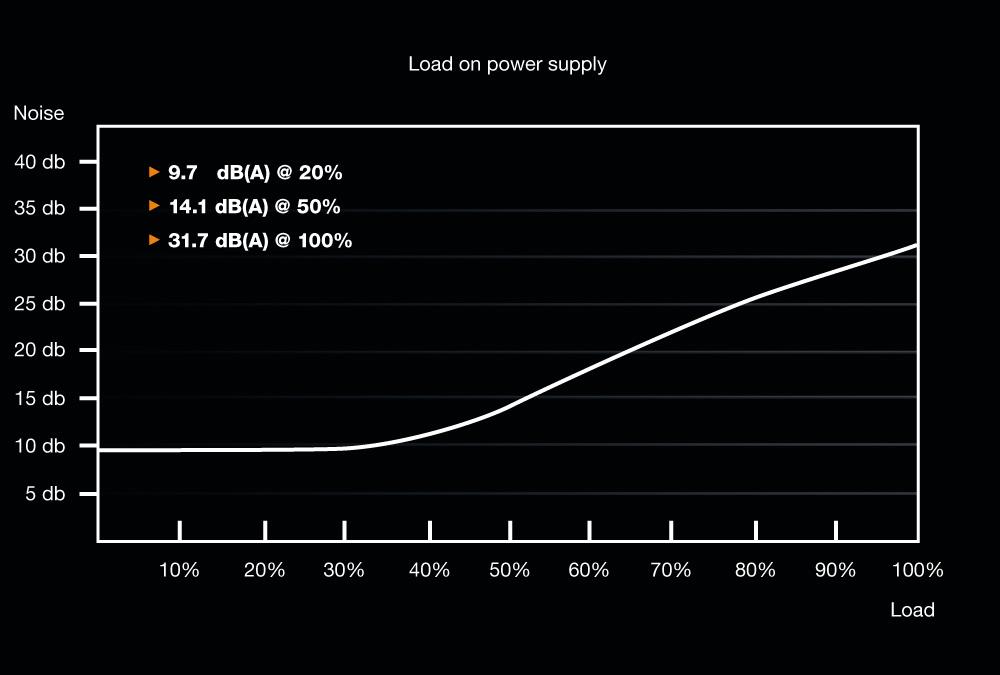

| Noise level (full-load mode, 100%) | 31.7 dB |
| Noise level (quiet mode, 50%) | 14.1 dB |
| Noise level (silent mode, <30%) | 9.7 dB |
| Screws included | Yes |
| Model name | System Power 9 CM |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0054 cubm |
| Unit Calculated Weight | 2.4 kg |
| Manufacturer Code | BN303 |
| ELKO Code | 1382284 |
| Warranty | 24 |
