| Vendor | BE QUIET |
|---|---|
| Manufacturer Code | BN302 |
| ELKO Code | 1382270 |
| Warranty | 24 |

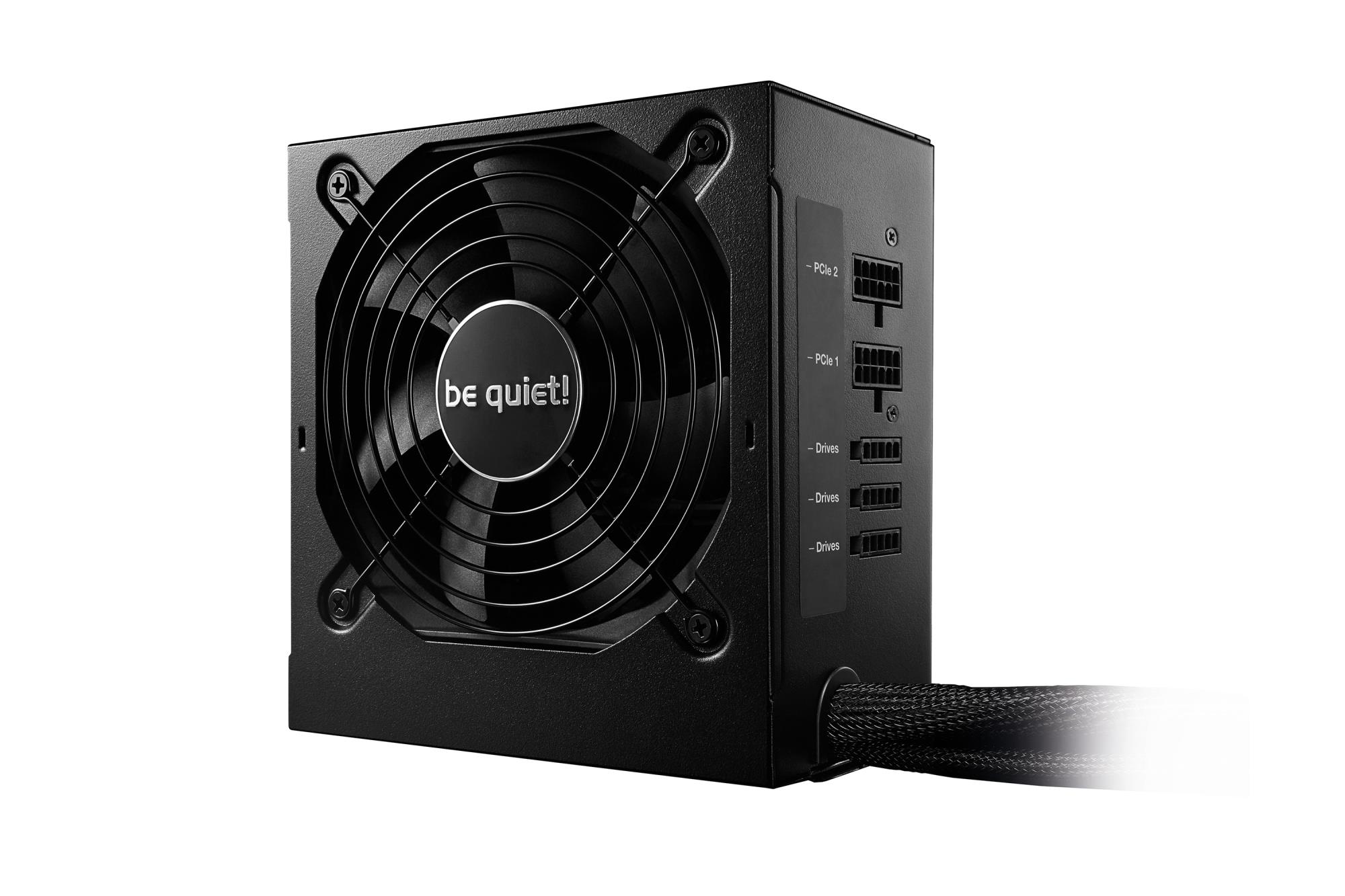

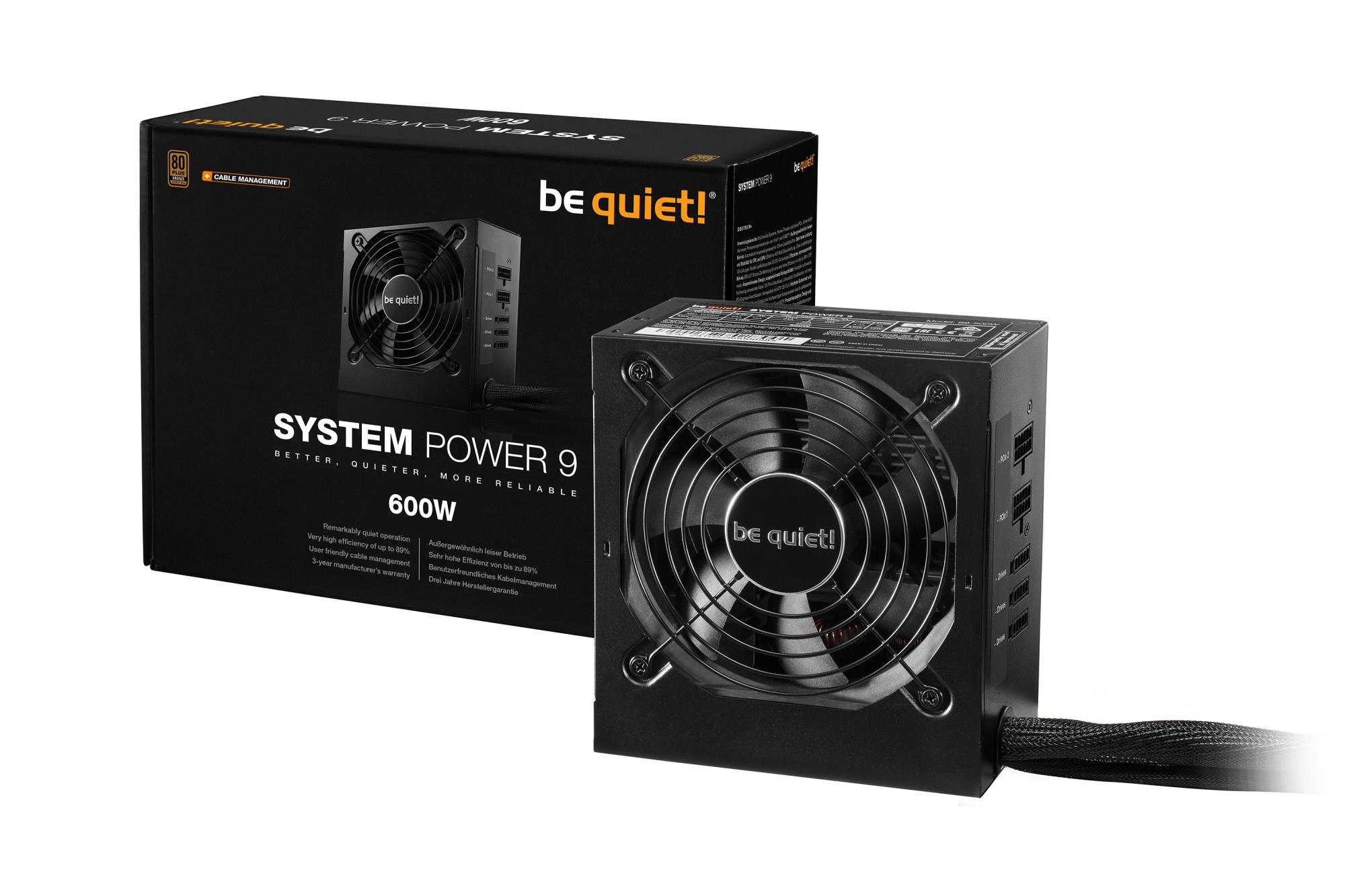

| Summary | be quiet! System Power 9, 600W CM. Total power: 600 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 550,670 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: PCIe, SATA |
| Power — AC input frequency | 50 Hz |
| Power — AC input voltage | 200 – 240 V |
| Power — Combined power (+3.3V) | 120 W |
| Power — Combined power (+5V) | 120 W |
| Power — Combined power (+5Vsb) | 15 W |
| Power — Combined power (-12V) | 3.6 W |
| Power — Efficiency | 89 % |
| Power — Hold time | 17 ms |
| Power — Input current | 6 A |
| Power — Max output current (+12V1) | 28 A |
| Power — Max output current (+12V2) | 22 A |
| Power — Max output current (+3.3V) | 24 A |
| Power — Max output current (+5V) | 15 A |
| Power — Max output current (+5Vsb) | 3 A |
| Power — Max output current (-12V) | 0.3 A |
| Power — Power factor | 0.95 |
| Power — Power Factor Correction (PFC) type | Active |
| Power — Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Power — Total power | 600 W |

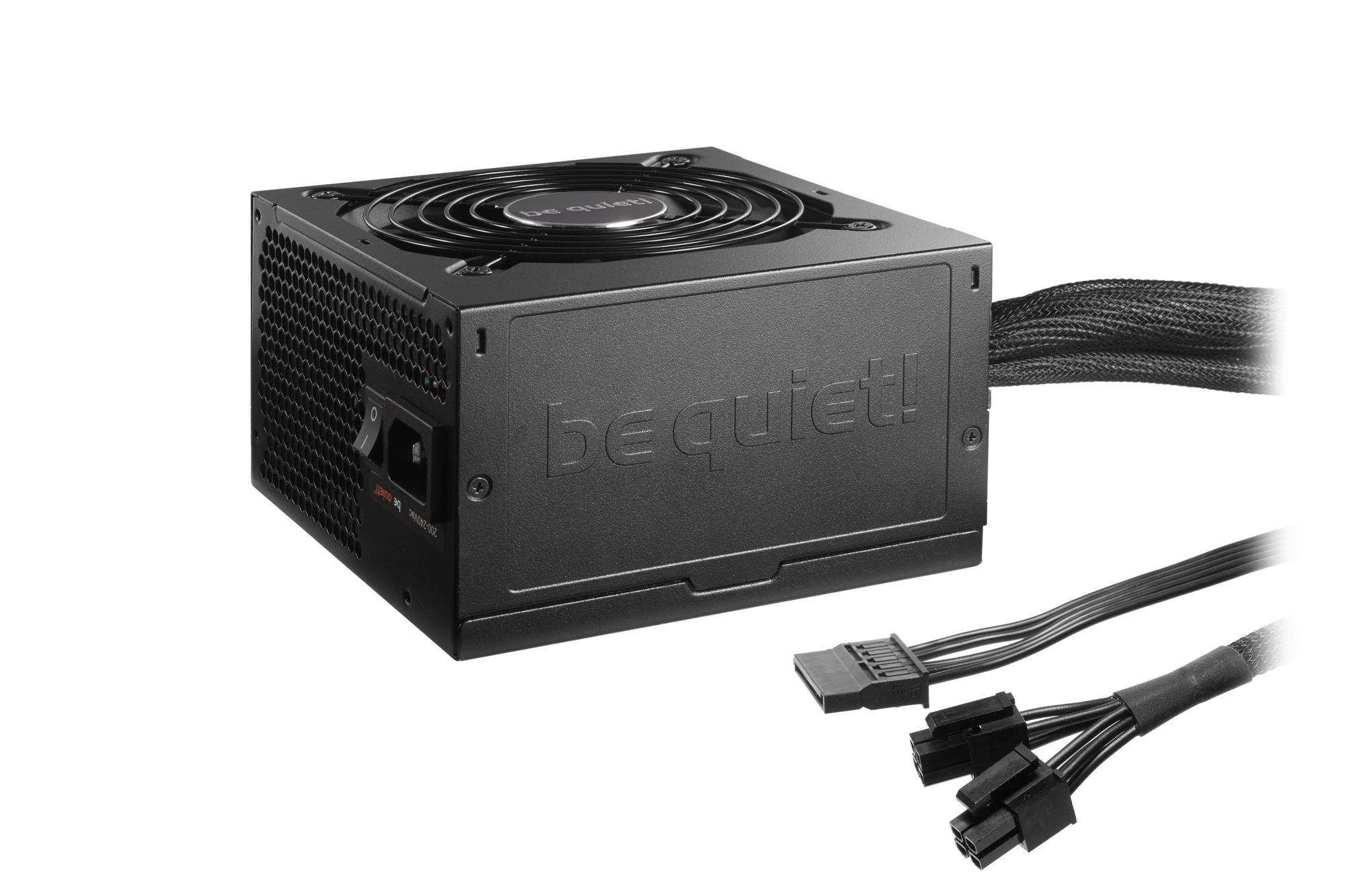

| Ports & interfaces — Cabling type | Semi-Modular |
| Ports & interfaces — CPU power cable length | 600 mm |
| Ports & interfaces — CPU power connector (4+4 pin) | Yes |
| Ports & interfaces — Floppy drive power connector | 1 |
| Ports & interfaces — Motherboard power cable length | 550 mm |
| Ports & interfaces — Motherboard power connector | 20+4 pin ATX |
| Ports & interfaces — Number of PATA power connectors | 2 |
| Ports & interfaces — Number of SATA power connectors | 10 |
| Ports & interfaces — PCI Express power cable length | 500 mm |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 4 |
| Ports & interfaces — SATA power cable length | 550/670 mm |
| Performance — 80 PLUS certification | 80 PLUS Bronze |
| Performance — ATX version | 2.51 |
| Performance — Bearing technology | Sleeve |
| Performance — Compatible products | Intel C6/C7 |
| Performance — EPS version | 2.92 |
| Performance — Power supply unit (PSU) form factor | ATX |
| Performance — Purpose | PC |
| Design — Cooling type | Active |
| Design — Fan diameter | 120 mm |
| Design — Number of fans | 1 fan(s) |
| Design — Product colour | Black |
| Packaging content — Cables included | PCIe,SATA |
| Certificates — Certification | CE, CB, TÜV, RCM, CU |
| Certificates — Compliance certificates | RoHS |
| Weight & dimensions — Depth | 140 mm |
| Weight & dimensions — Height | 86 mm |
| Weight & dimensions — Weight | 1660 g |
| Weight & dimensions — Width | 150 mm |
| Packaging data — Manual | Yes |
| Packaging data — Package depth | 268 mm |
| Packaging data — Package height | 195 mm |
| Packaging data — Package type | Box |
| Packaging data — Package weight | 2420 g |
| Packaging data — Package width | 97 mm |
| Technical details — Sustainability certificates | ENERGY STAR |
| Logistics data — Harmonized System (HS) code | 84733020 |
| Logistics data — Master (outer) case gross weight | 15220 g |
| Logistics data — Master (outer) case height | 556 mm |
| Logistics data — Master (outer) case length | 215 mm |
| Logistics data — Master (outer) case width | 311 mm |
| Logistics data — Products per master (outer) case | 6 pc(s) |

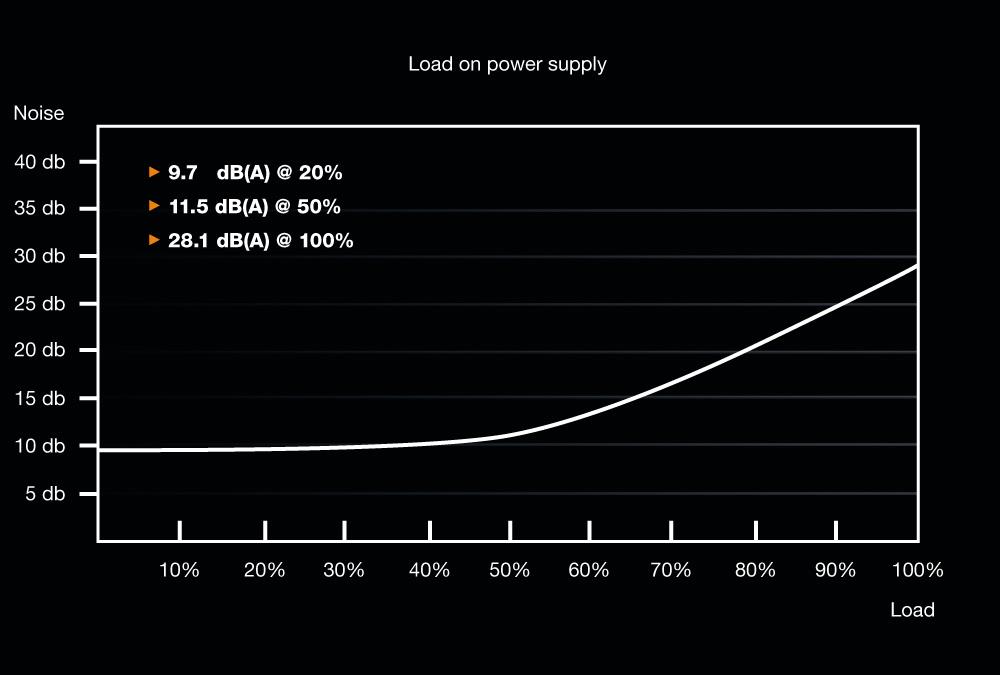

| Other features — Noise level (full-load mode, 100%) | 28.1 dB |
| Other features — Noise level (quiet mode, 50%) | 11.5 dB |
| Other features — Noise level (silent mode, <30%) | 9.7 dB |
| Other features — Screws included | Yes |
| Model name | System Power 9 CM |
