ASUS Dual -RTX5060TI-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Laost otsas
Laost otsas

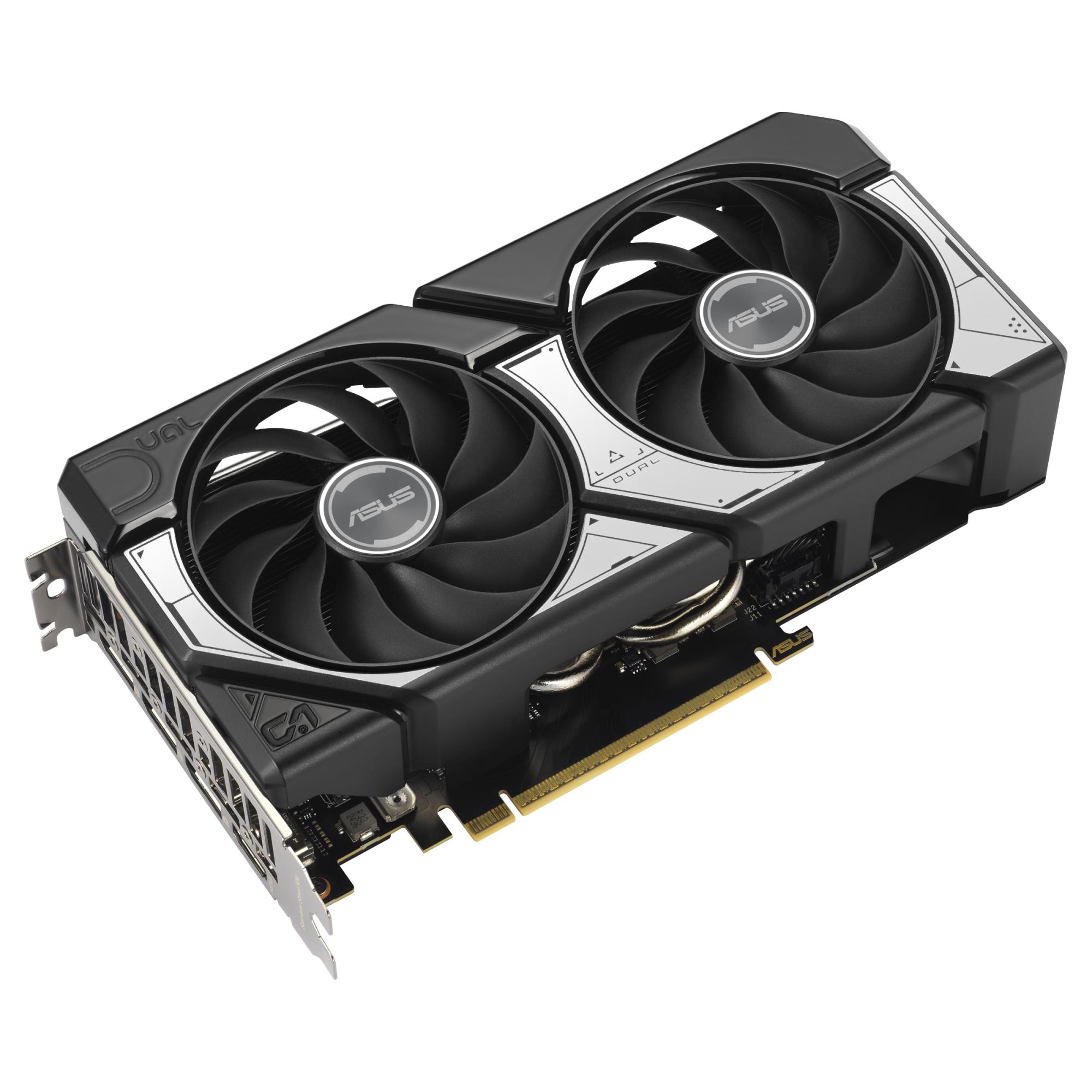

DUAL GEFORCE RTX™ 5060 Ti
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 Ti combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.
Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.
0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.
Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

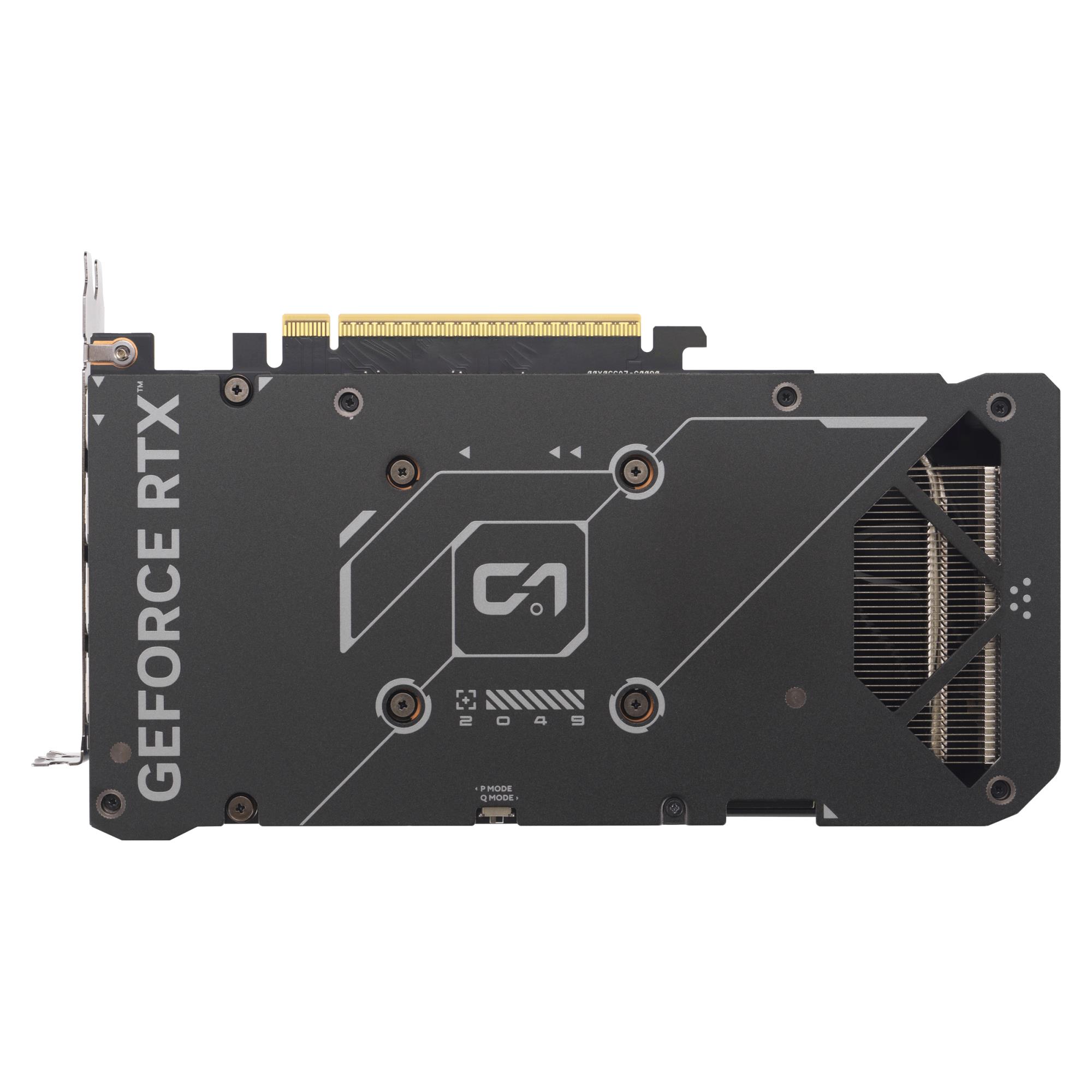

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
| Kaal | 0,6 kg |
|---|---|
| Mõõtmed | 22,9 × 12 cm |
| Vendor | ASUS |
| Summary | ASUS Dual -RTX5060TI-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s) |
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor | GeForce RTX 5060 Ti |
| Graphics processor family | NVIDIA |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Processor boost clock speed | 2602 MHz |
| Processor frequency (OC mode) | 2632 MHz |
| Data transfer rate | 28 Gbit/s |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| DisplayPort version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Interface type | PCI Express 5.0 |
| HDCP | Yes |
| HDCP version | 2.3 |
| NPU performance up to | 759 TOPs |
| OpenGL version | 4.6 |
| Overclocked (OC) edition | Yes |
| TV tuner integrated | No |
| Cooling technology | ASUS Axial-tech |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.5 |
| Product colour | Black/Grey |
| SFF ready | Yes |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Depth | 50 mm |
| Height | 120 mm |
| Length | 229 mm |
| Weight | 656 g |
| Package depth | 219 mm |
| Package height | 67 mm |
| Package type | Box |
| Package weight | 1116 g |
| Package width | 364 mm |
| Manual | Yes |
| Model | DUAL-RTX5060TI-O8G |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.006858 cubm |
| Product Net Weight | 0.6 kg |
| Unit Calculated Weight | 1.25 kg |
| Manufacturer Code | DUAL-RTX5060TI-O8G |
| ELKO Code | 1437220 |
| Warranty | 36 |
| Processor — CUDA | Yes |
| Processor — CUDA cores | 4608 |
| Processor — Graphics processor | GeForce RTX 5060 Ti |
| Processor — Graphics processor family | NVIDIA |
| Processor — Maximum displays per videocard | 4 |
| Processor — Maximum resolution | 7680 x 4320 pixels |
| Processor — Parallel processing technology support | Not supported |
| Processor — Processor boost clock speed | 2602 MHz |
| Processor — Processor frequency (OC mode) | 2632 MHz |
| Memory — Data transfer rate | 28 Gbit/s |
| Memory — Discrete graphics card memory | 8 GB |
| Memory — Graphics card memory type | GDDR7 |
| Memory — Memory bus | 128 bit |
| Ports & interfaces — DisplayPort version | 2.1b |
| Ports & interfaces — DisplayPorts quantity | 3 |
| Ports & interfaces — HDMI ports quantity | 1 |
| Ports & interfaces — HDMI version | 2.1b |
| Ports & interfaces — Interface type | PCI Express 5.0 |
| Performance — HDCP | Yes |
| Performance — HDCP version | 2.3 |
| Performance — NPU performance up to | 759 TOPs |
| Performance — OpenGL version | 4.6 |
| Performance — Overclocked (OC) edition | Yes |
| Performance — TV tuner integrated | No |
| Design — Cooling technology | ASUS Axial-tech |
| Design — Cooling type | Active |
| Design — Number of fans | 2 fan(s) |
| Design — Number of slots | 2.5 |
| Design — Product colour | Black/Grey |
| Design — SFF ready | Yes |
| Power — Minimum system power supply | 550 W |
| Power — Supplementary power connectors | 1x 8-pin |
| Weight & dimensions — Depth | 50 mm |
| Weight & dimensions — Height | 120 mm |
| Weight & dimensions — Length | 229 mm |
| Weight & dimensions — Weight | 656 g |
| Packaging data — Package depth | 219 mm |
| Packaging data — Package height | 67 mm |
| Packaging data — Package type | Box |
| Packaging data — Package weight | 1116 g |
| Packaging data — Package width | 364 mm |
| Packaging content — Manual | Yes |
