ASUS ROG STRIX Z890-H GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Laost otsas
Laost otsas

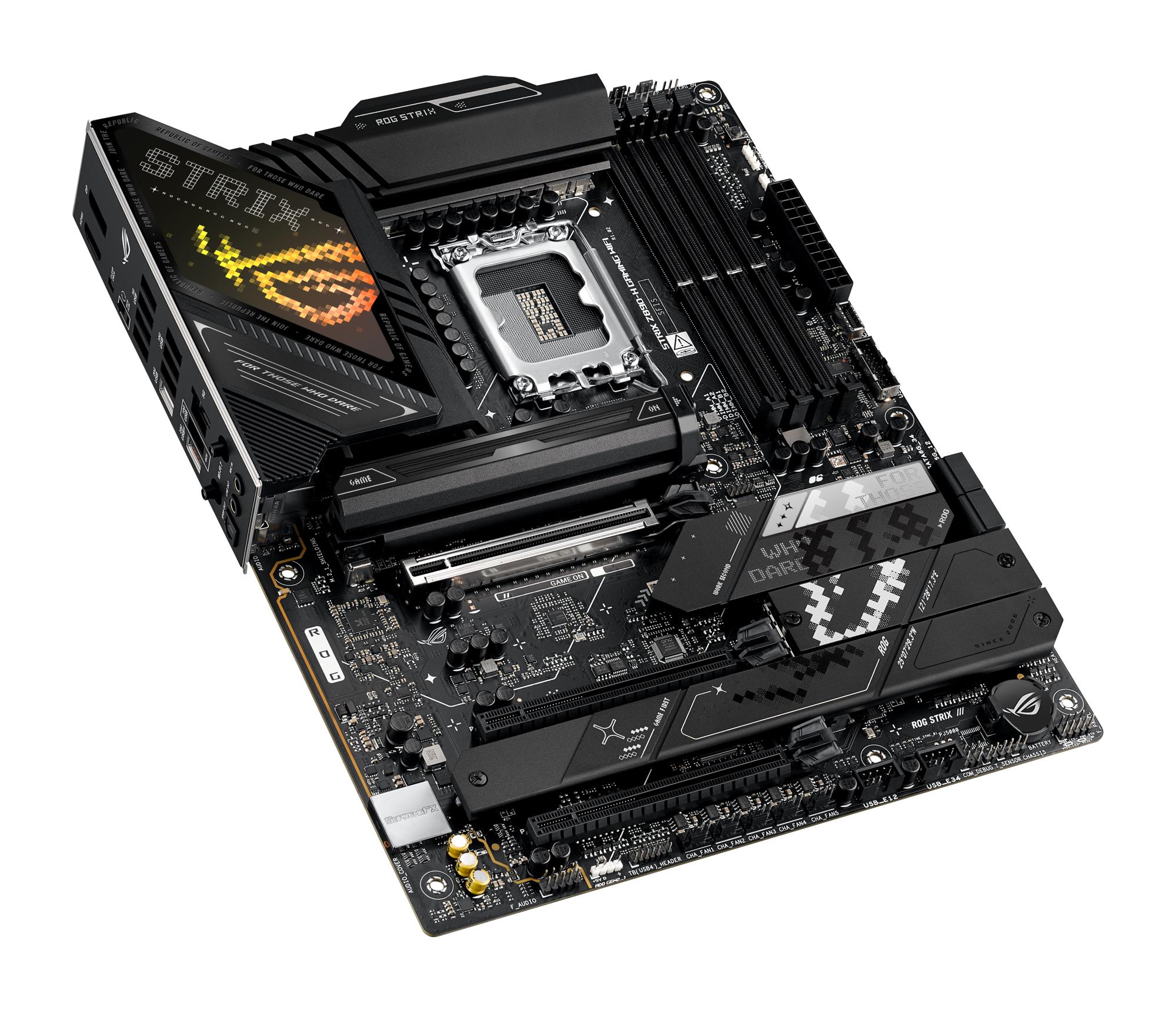

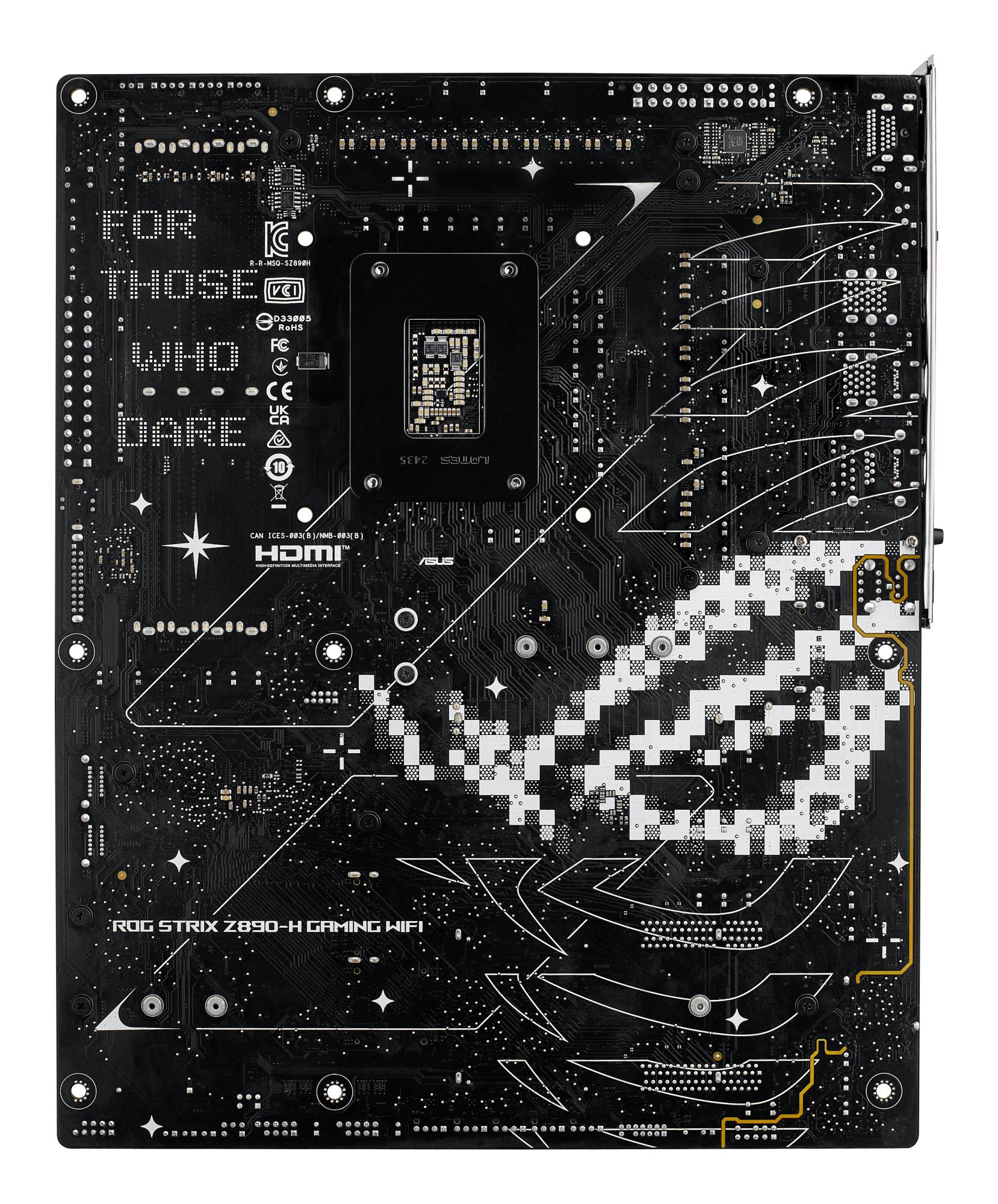

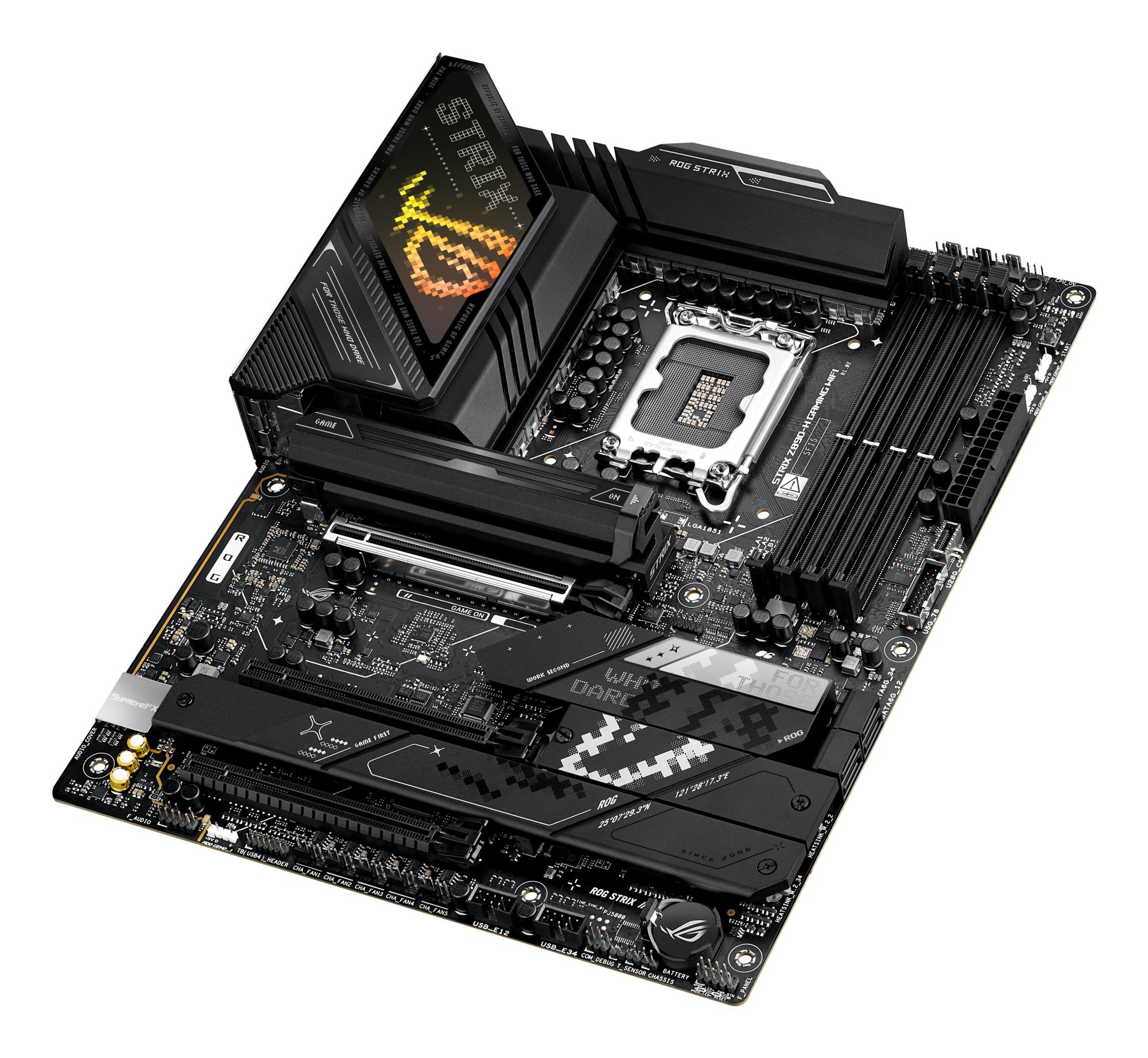

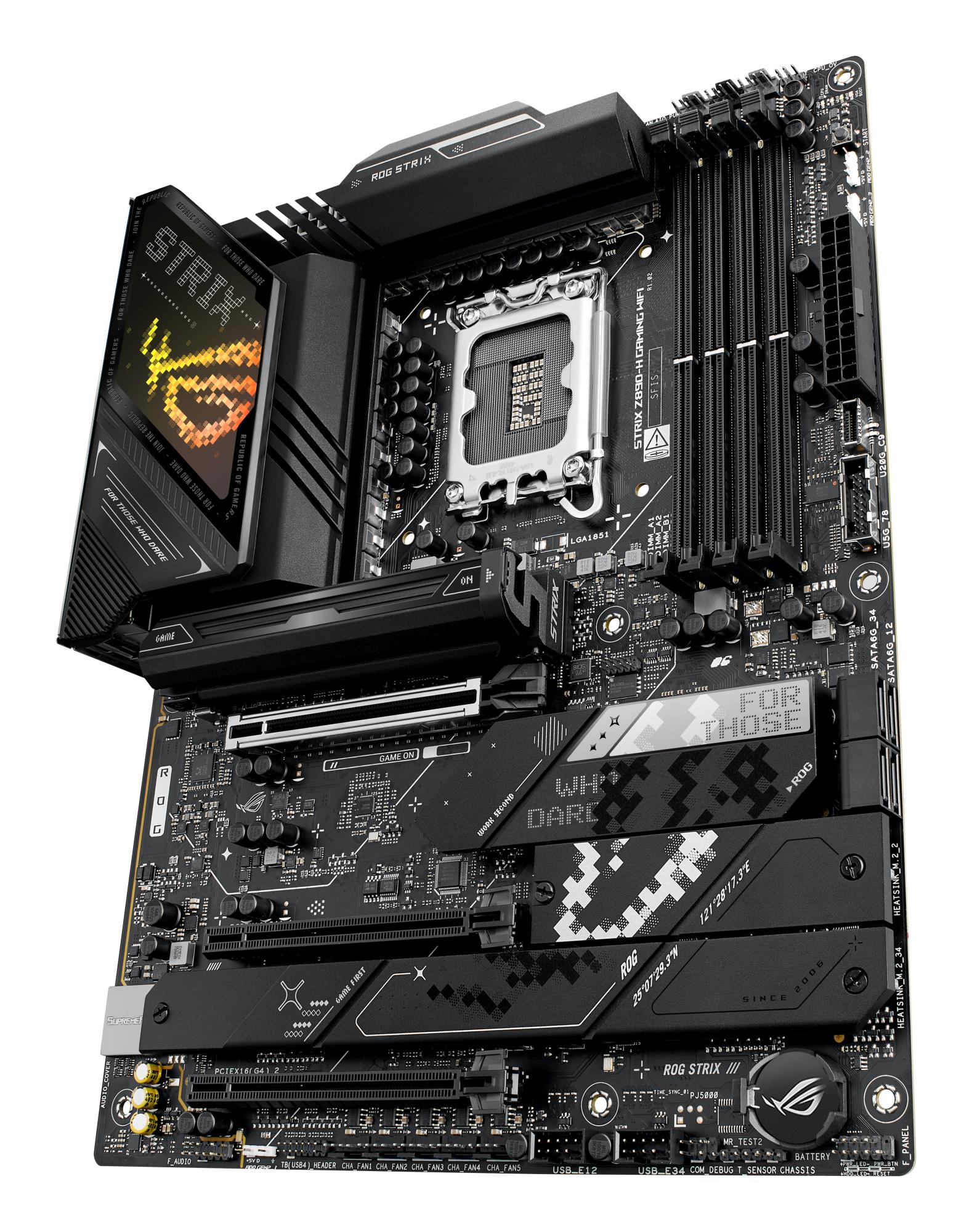

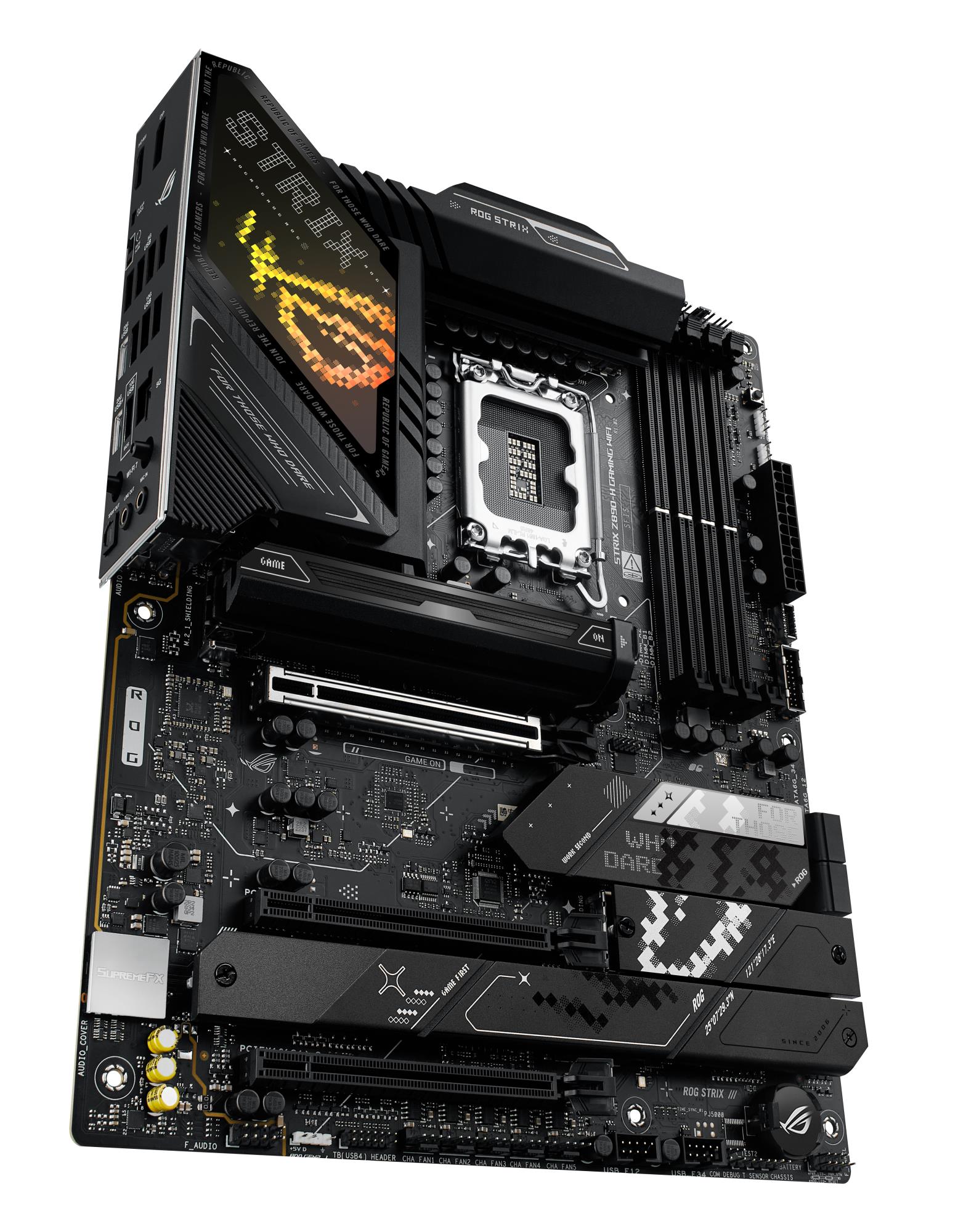

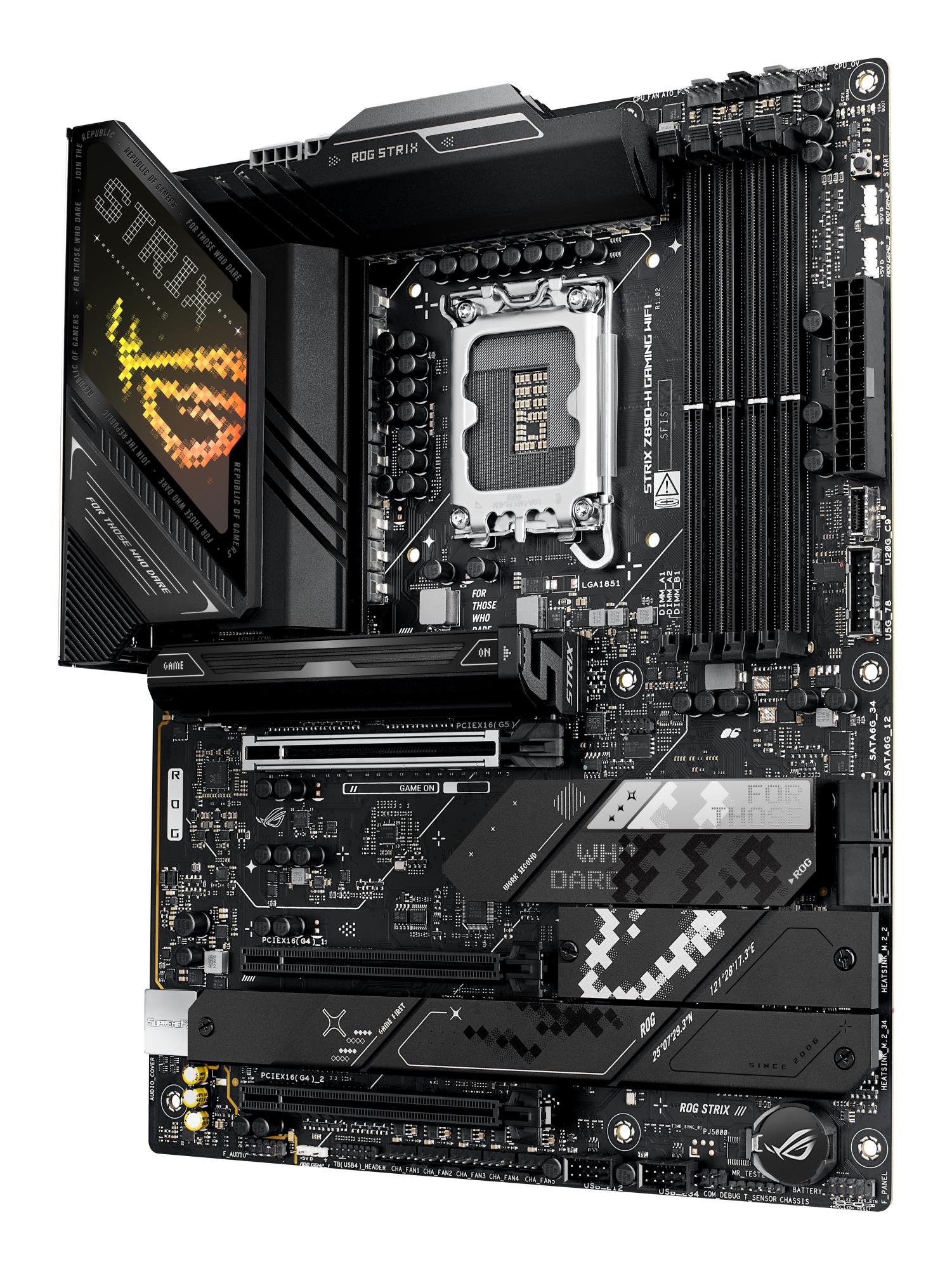

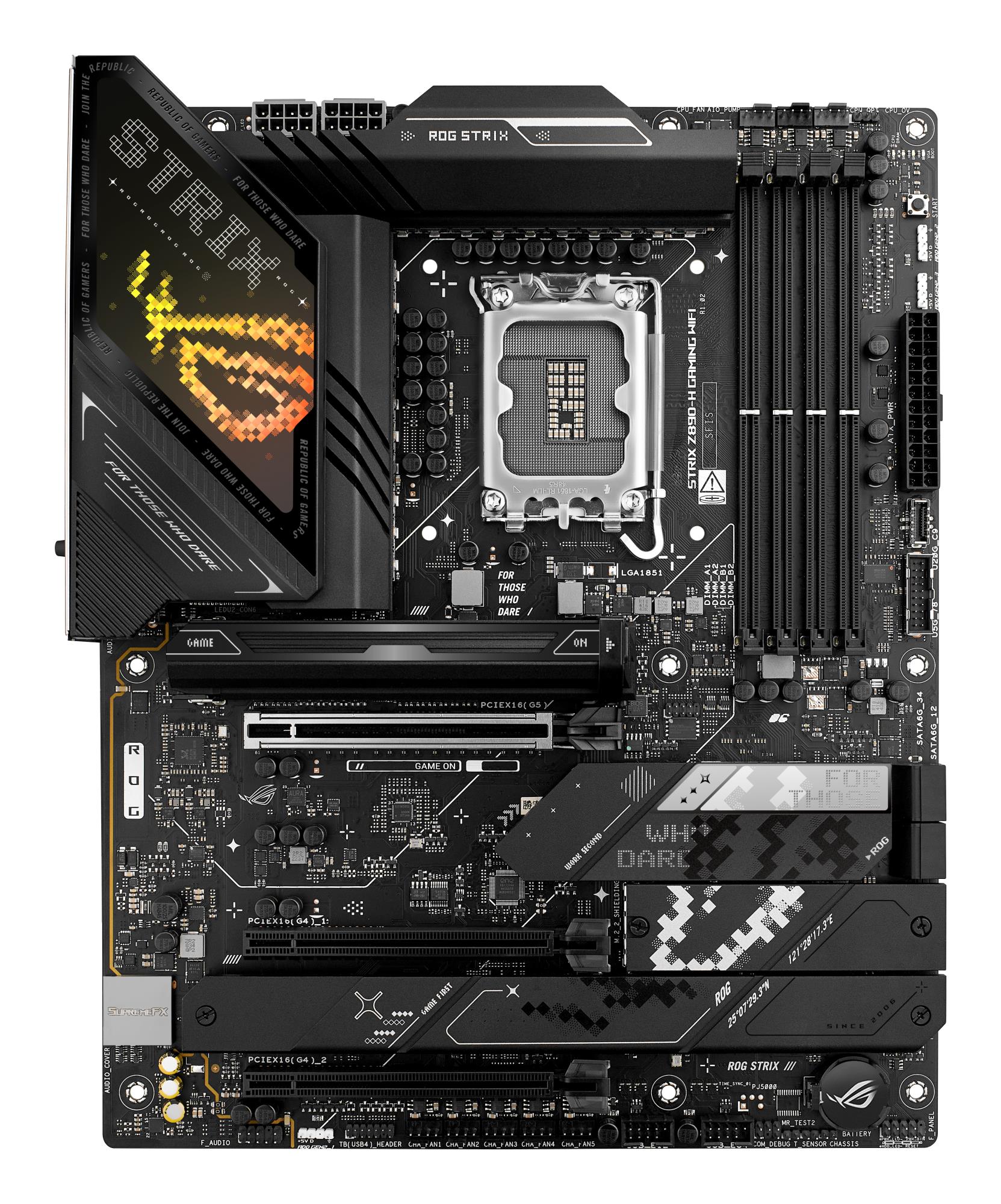

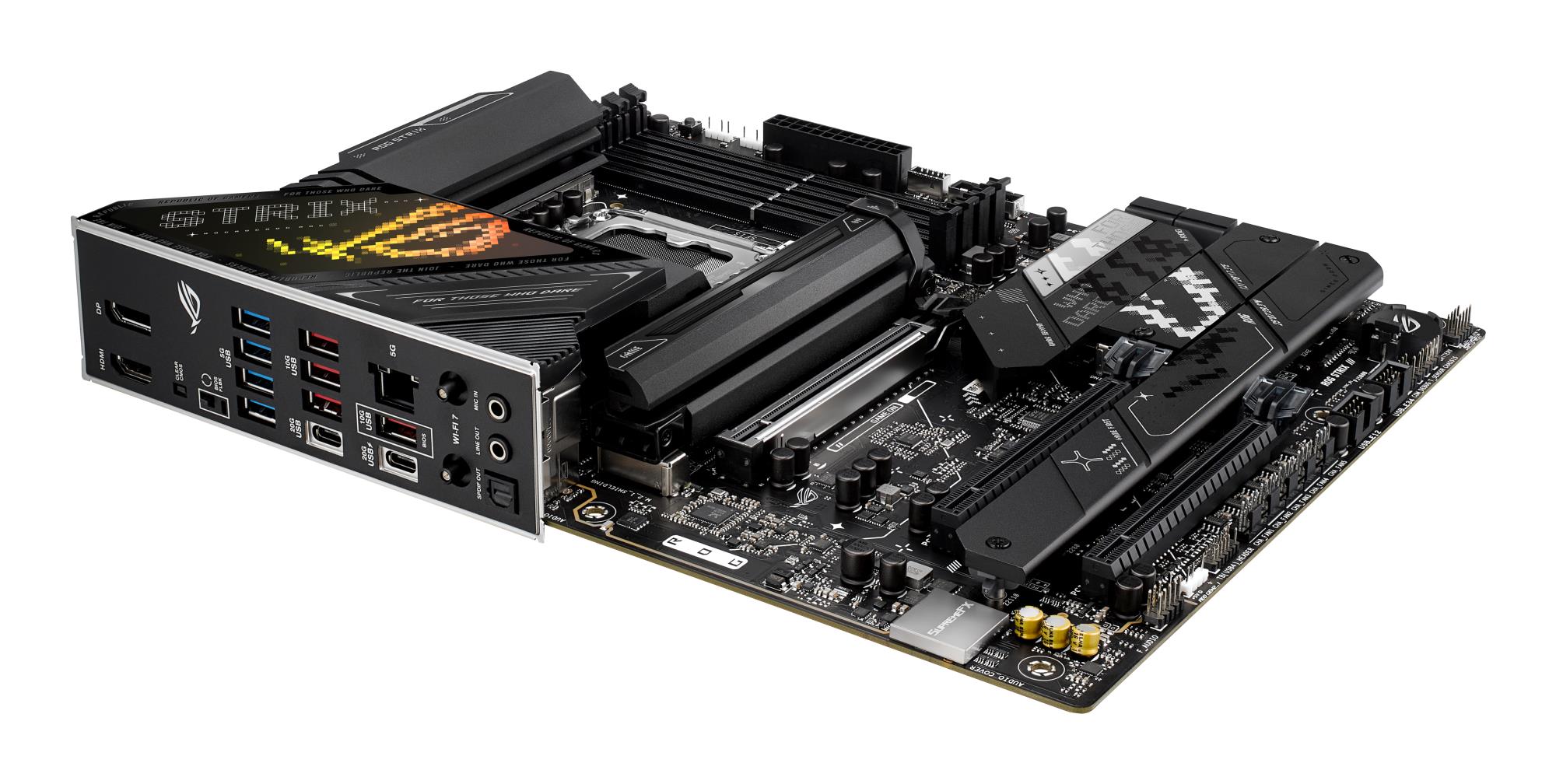

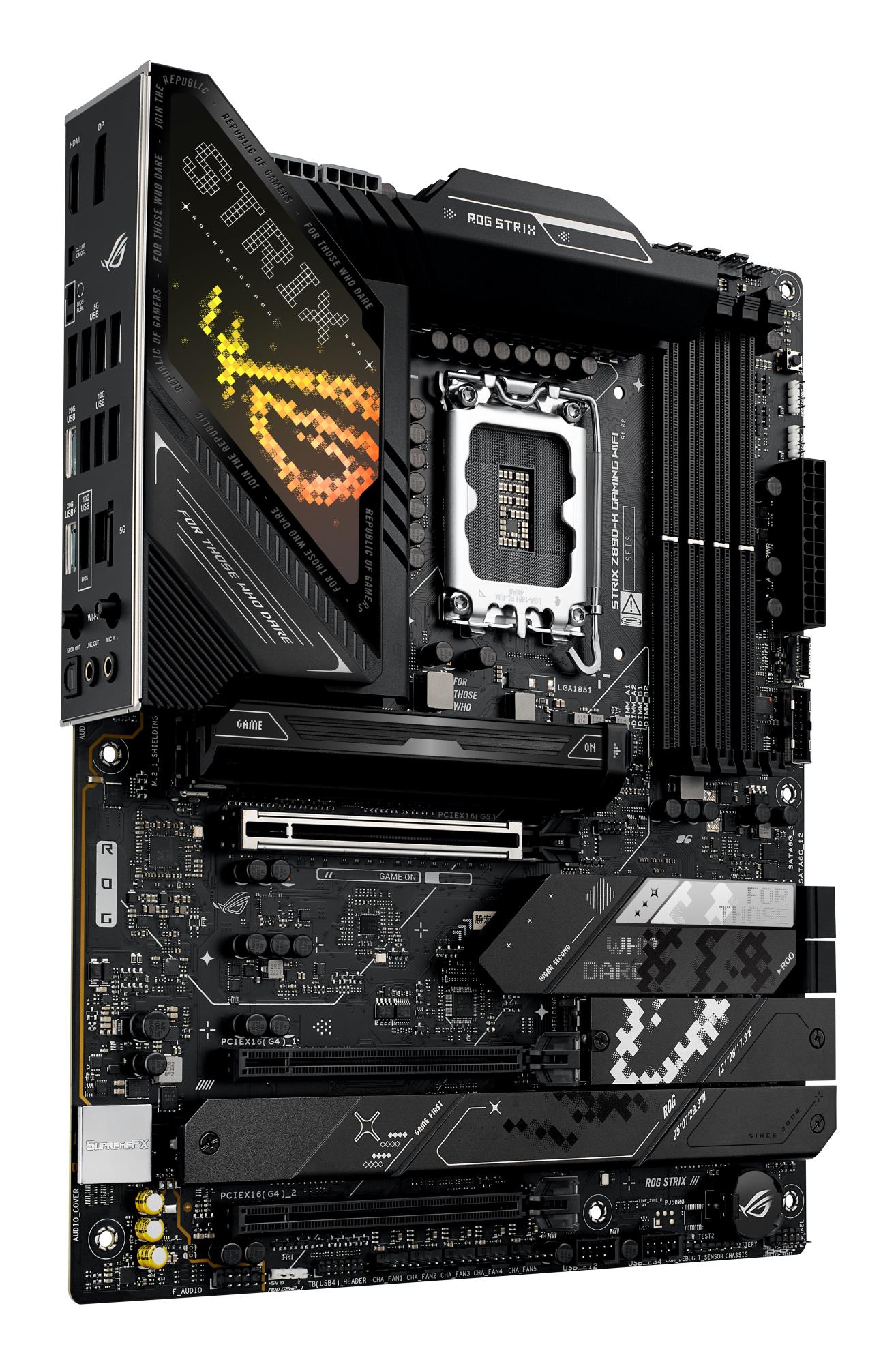

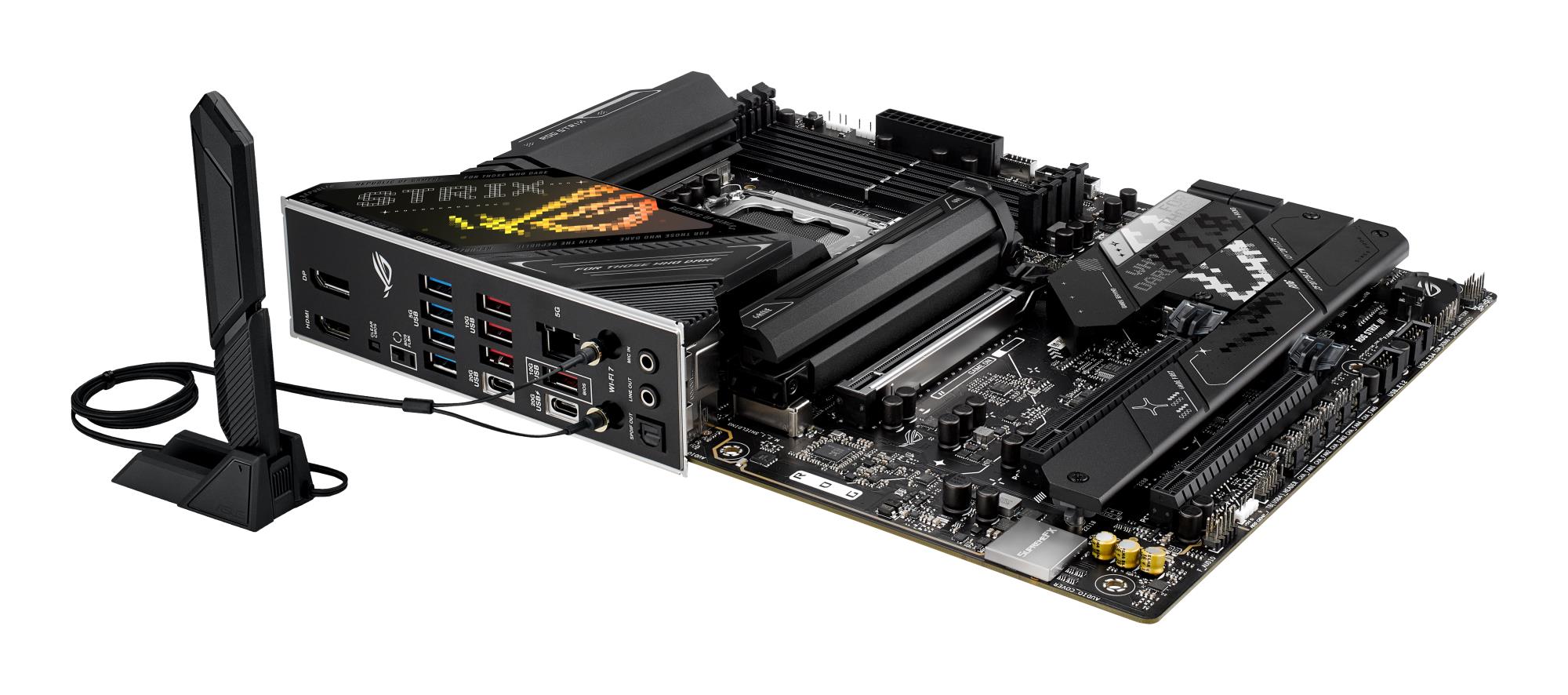

ROG STRIX Z890-H gaming wifi

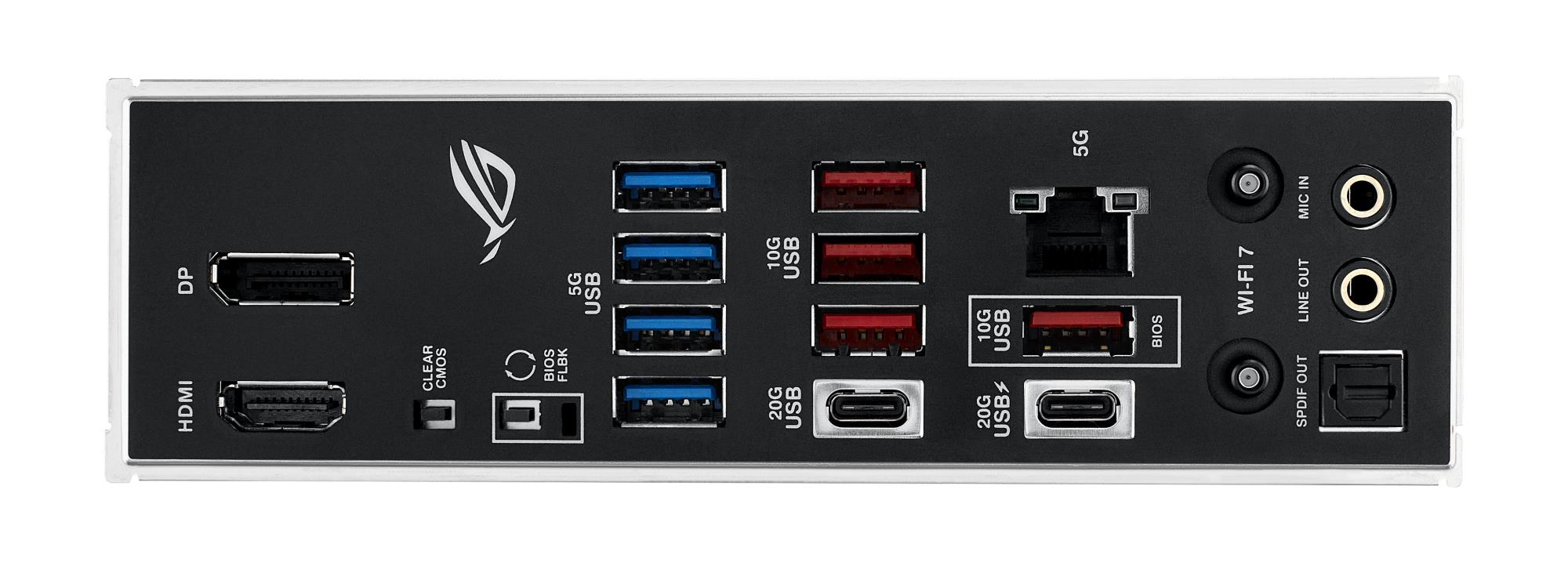

Powered advanced AI technologies and compatible with Intel processors featuring a Neural Processing Unit, the ROG STRIX Z890-H Gaming WiFi enables advanced AI PC applications. It features a USB 20Gbps Type-C® rear I/O port with up to 30-watt Power Delivery for fast charging, PCIe® 5.0 support, and Aura lighting. These capabilities provide ultra-fast data transfers, exceptional connectivity and customizable lighting that can be understated or striking.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
* Availability of ASUS AI Advisor may vary by region.
ai OVERCLOCKING
ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai cOOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.
| Kaal | 1,7 kg |
|---|---|
| Vendor | ASUS |
| M.2 | 4 |
| PCI-Express 4.0 16x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| USB 2.0 | Yes |
| USB 3.0 | Yes |
| USB 3.1 | 4 |
| USB-C | Yes |
| USB-C w/Thunderbolt | 2 |
| Bluetooth | Yes |
| SATA | Yes |
| SATA 3.0 | Yes |
| WiFi | Yes |
| Model | ROG STRIX Z890-H GAMING WIFI |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Memory slots | 4 |
| Integrated video | Yes |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC1220P |
| RAID | SATA 0, 1, 5, 10 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.0079134 cubm |
| Product Net Weight | 1.7 kg |
| Unit Calculated Weight | 2.525 kg |
| Summary | ASUS ROG STRIX Z890-H GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 5 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of SATA III connectors | 4 |
| Number of temperature sensor headers | 1 |
| Thunderbolt headers | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Bluetooth version | 5.4 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2580 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2525 g |
| Package width | 353 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Antenna included | Yes |
| Cables included | SATA |
| Manufacturer Code | ROG STRIX Z890-H GAMING WIFI |
| ELKO Code | 1447134 |
| Warranty | 36 |
| Expansion slots — M.2 | 4 |
| Expansion slots — PCI-Express 4.0 16x | 2 |
| Expansion slots — PCI-Express 5.0 16x | 1 |
| Input/Output connectors — Audio-In | 1 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — DisplayPort | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — Optical S/PDIF | 1 |
| Input/Output connectors — USB 2.0 | 2 |
| Input/Output connectors — USB 3.0 | 4 |
| Input/Output connectors — USB 3.1 | 4 |
| Input/Output connectors — USB-C | 2 |
| Input/Output connectors — USB-C w/Thunderbolt | 2 |
| Interface — Bluetooth | Yes |
| Interface — SATA | Yes |
| Interface — SATA 3.0 | Yes |
| Interface — USB 2.0 | Yes |
| Interface — USB 3.0 | Yes |
| Interface — USB-C | Yes |
| Interface — WiFi | Yes |
