ASUS ROG STRIX Z890-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
6 laos
6 laos

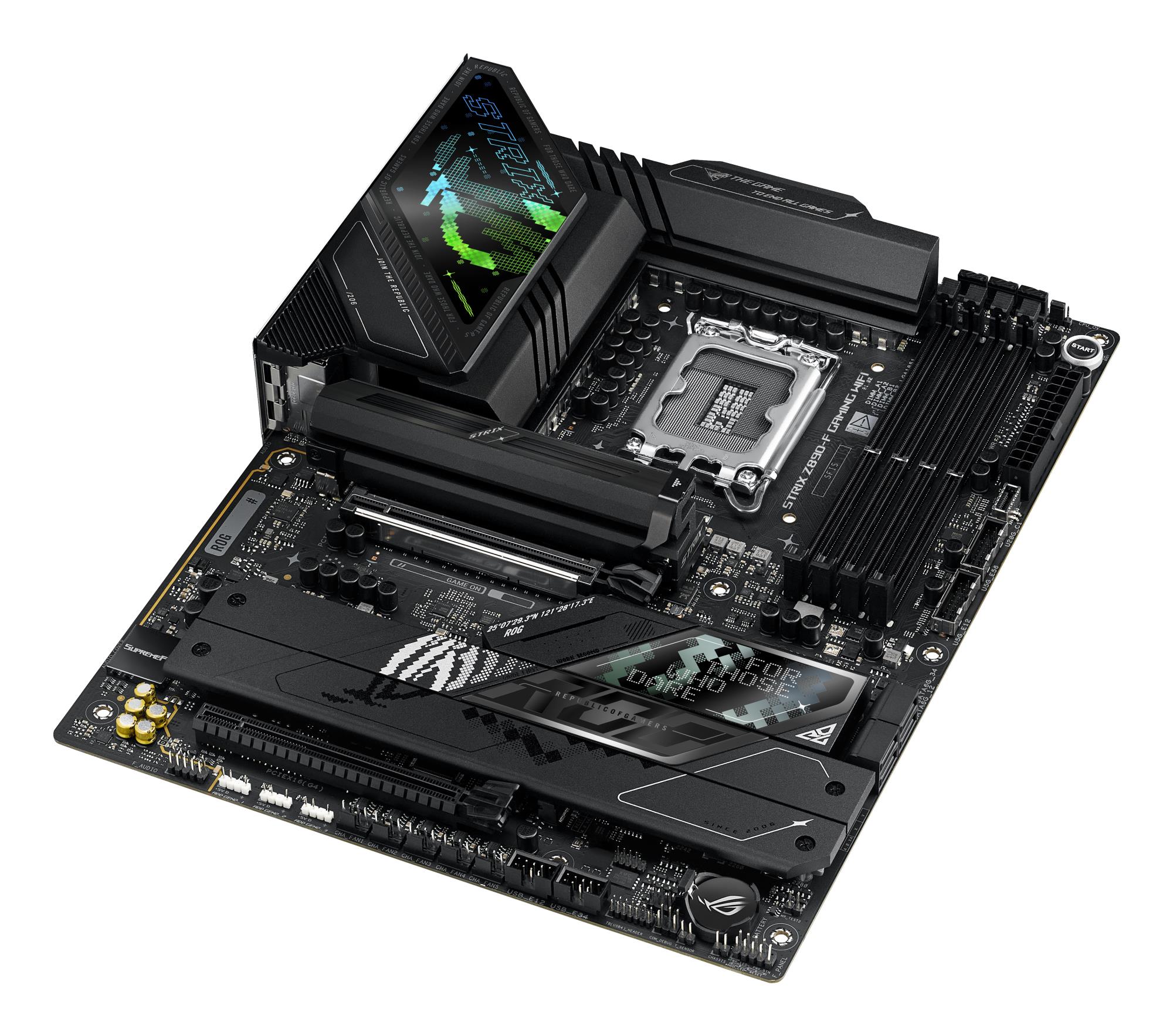

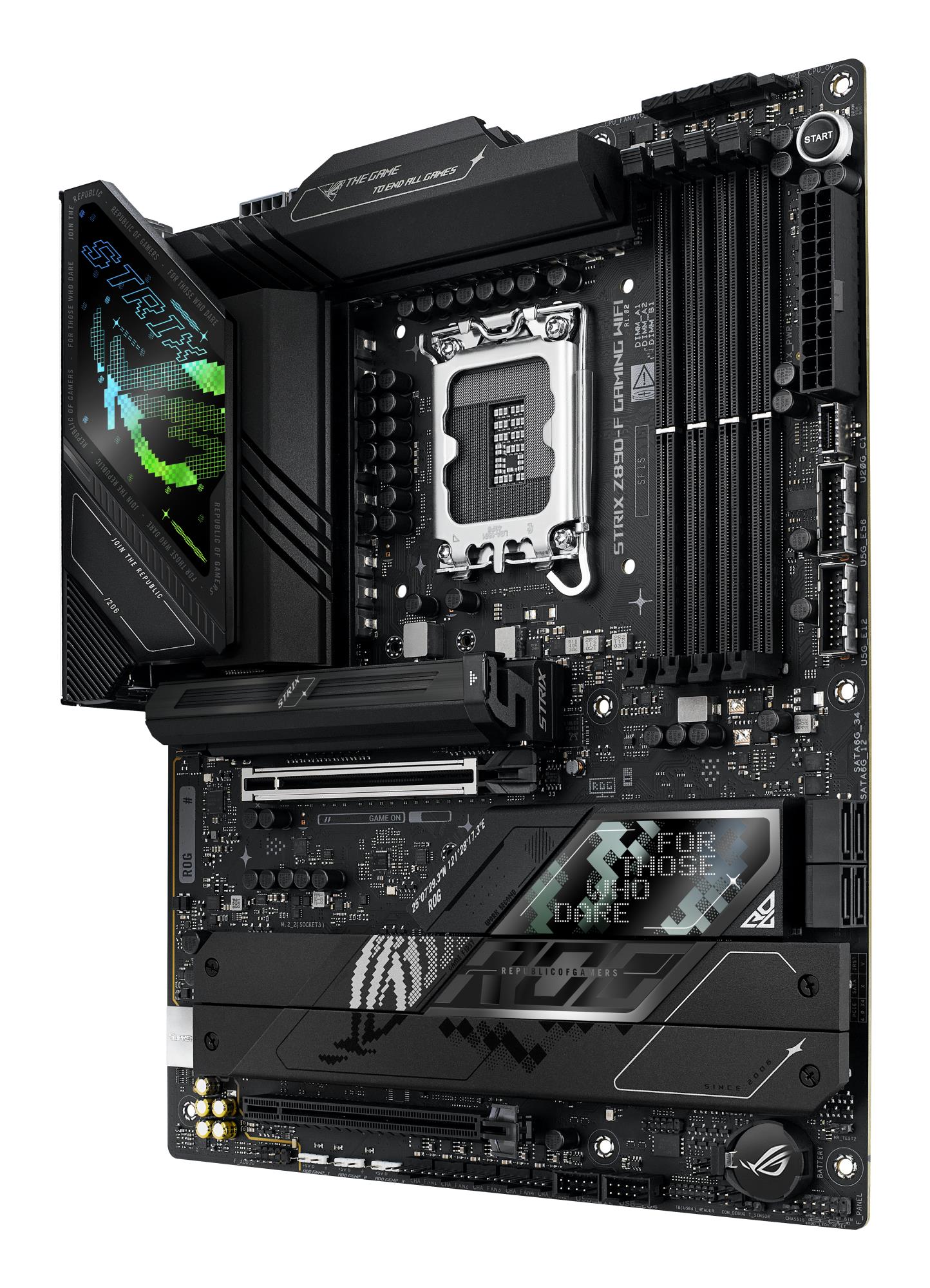

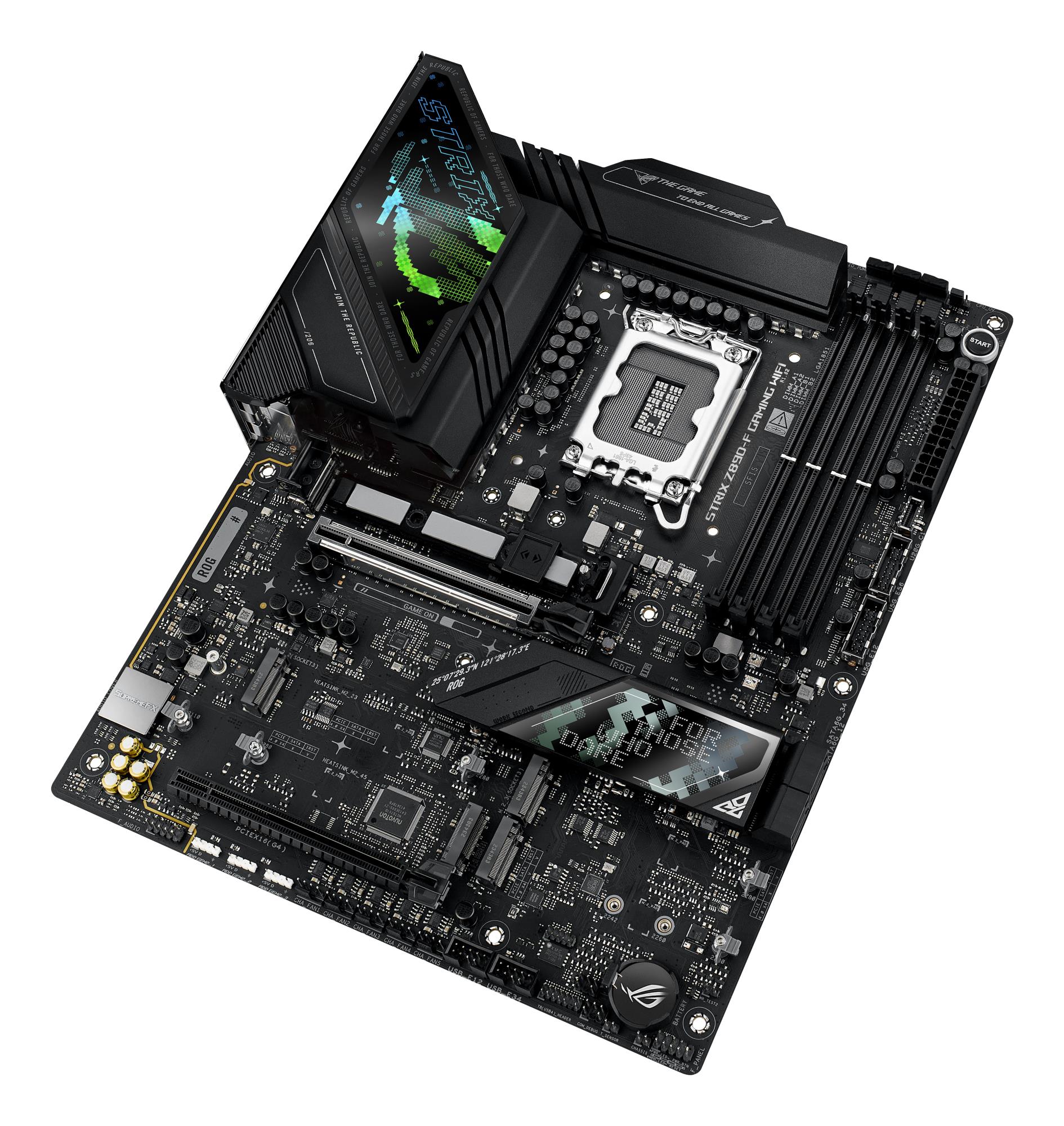

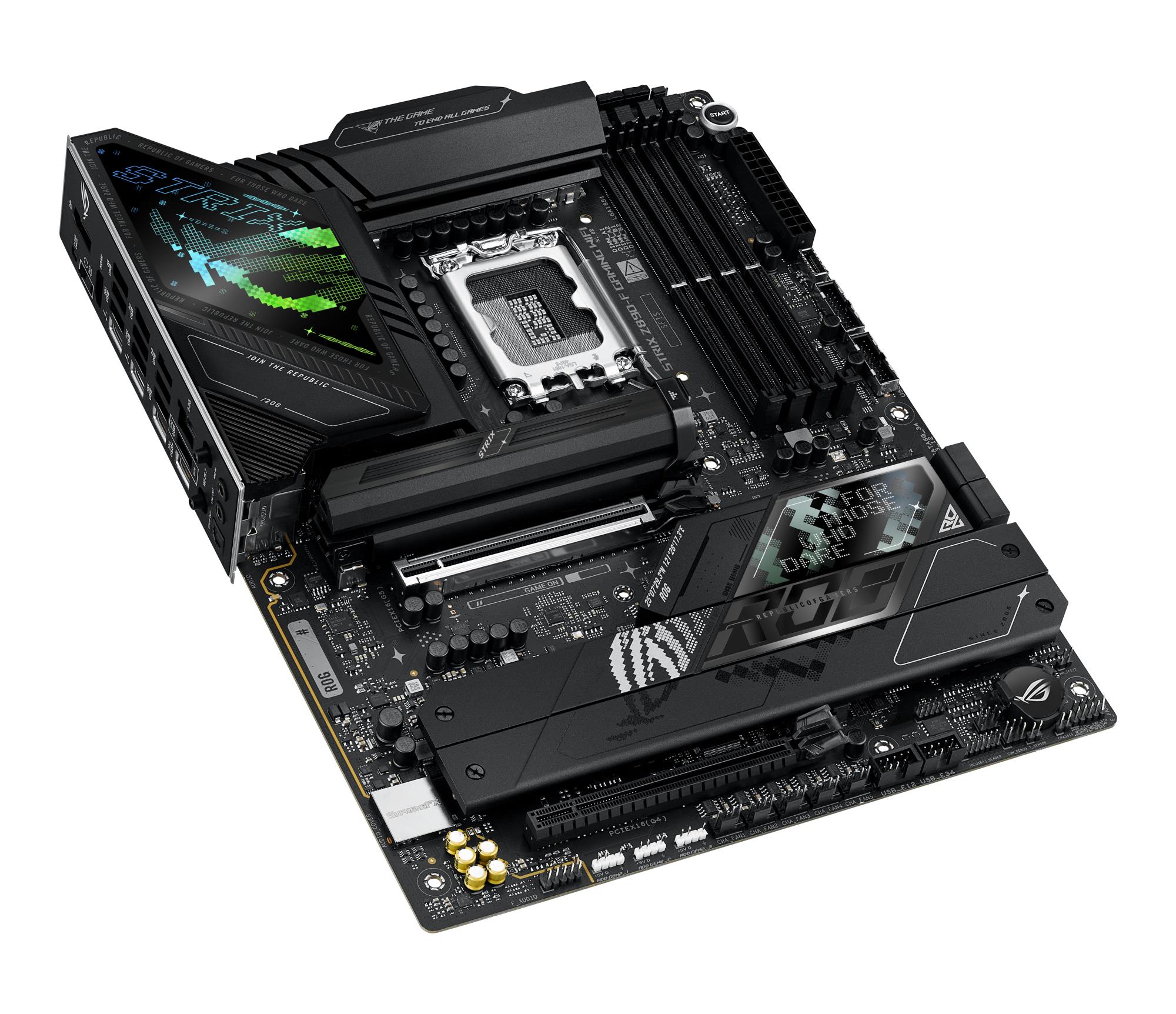

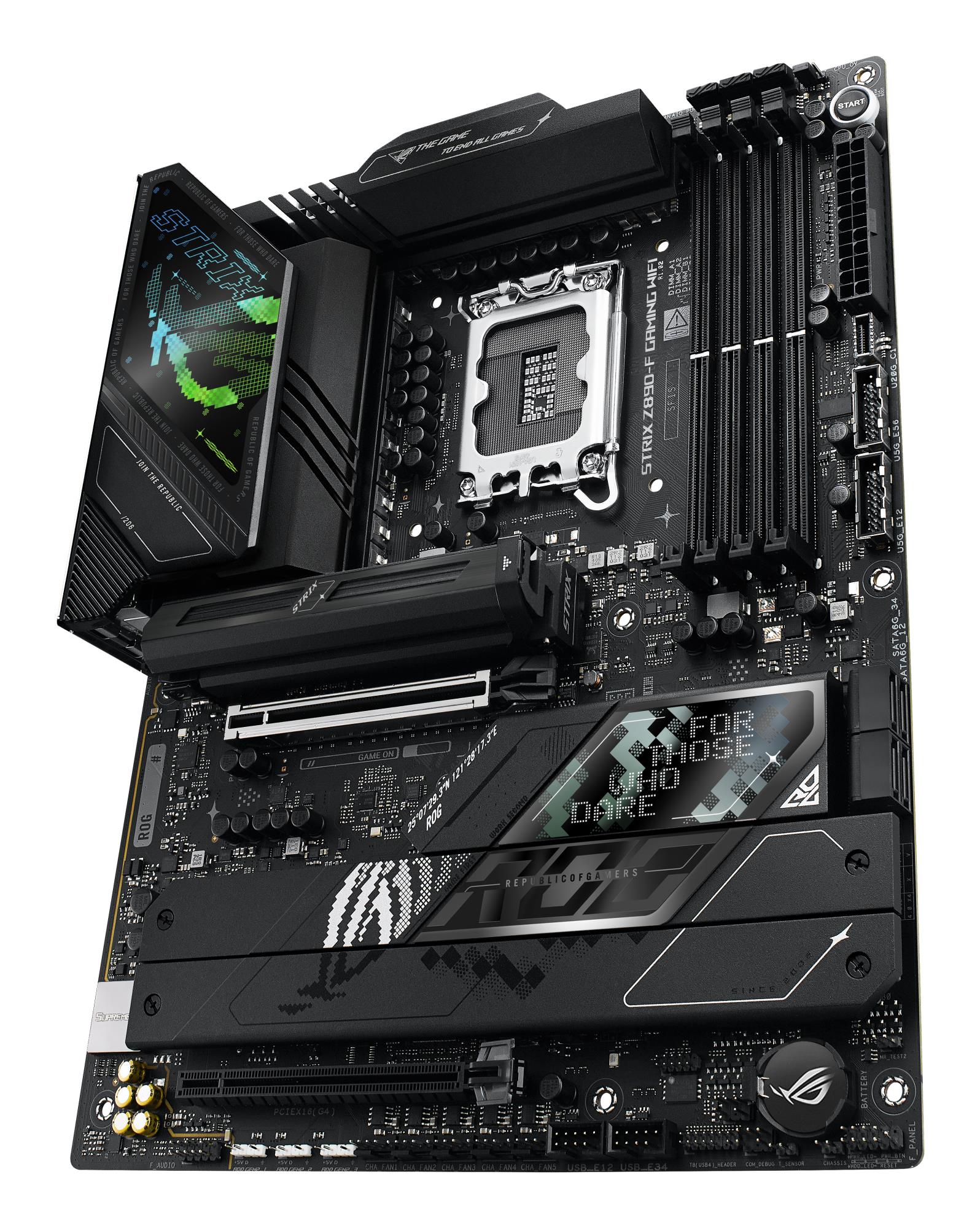

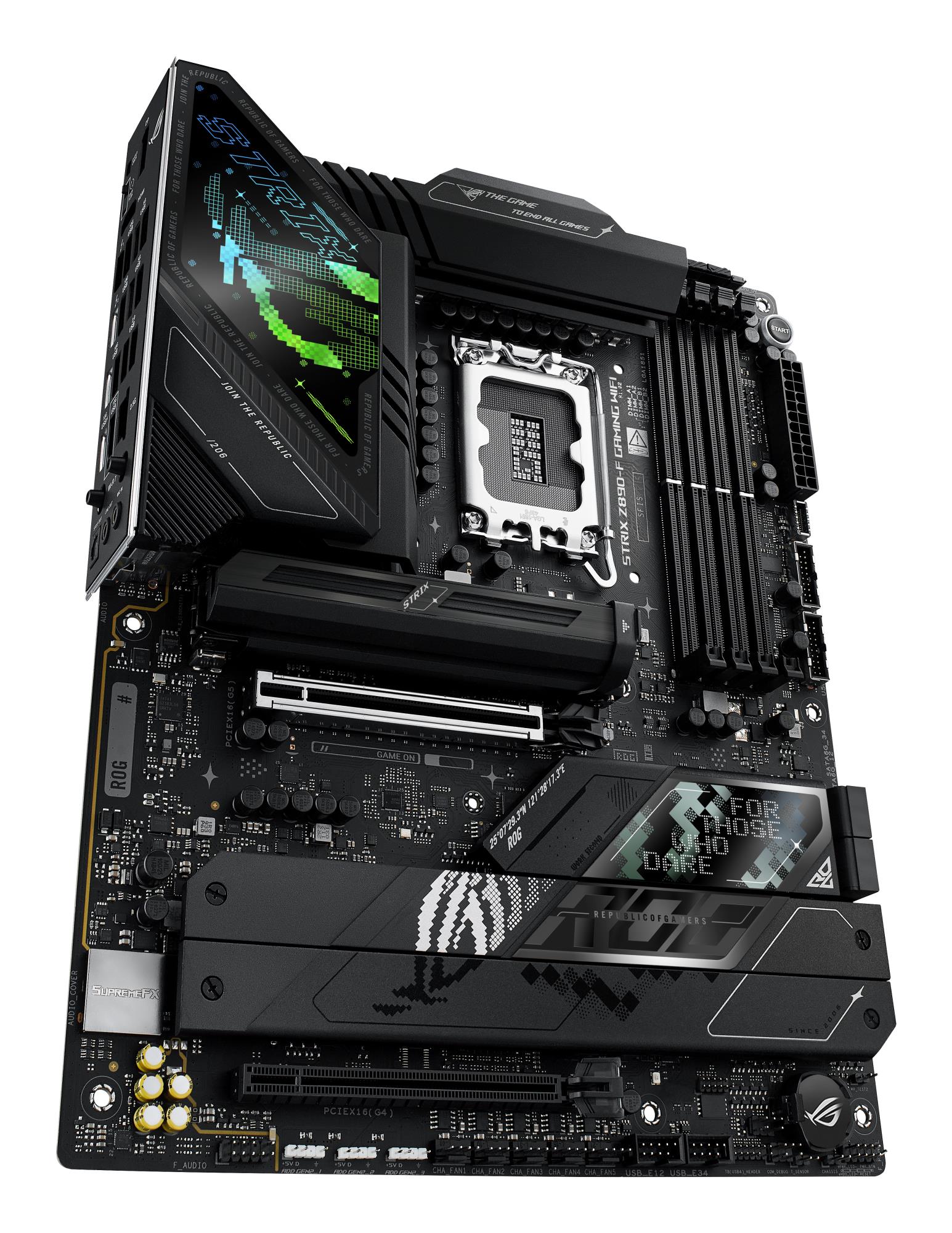

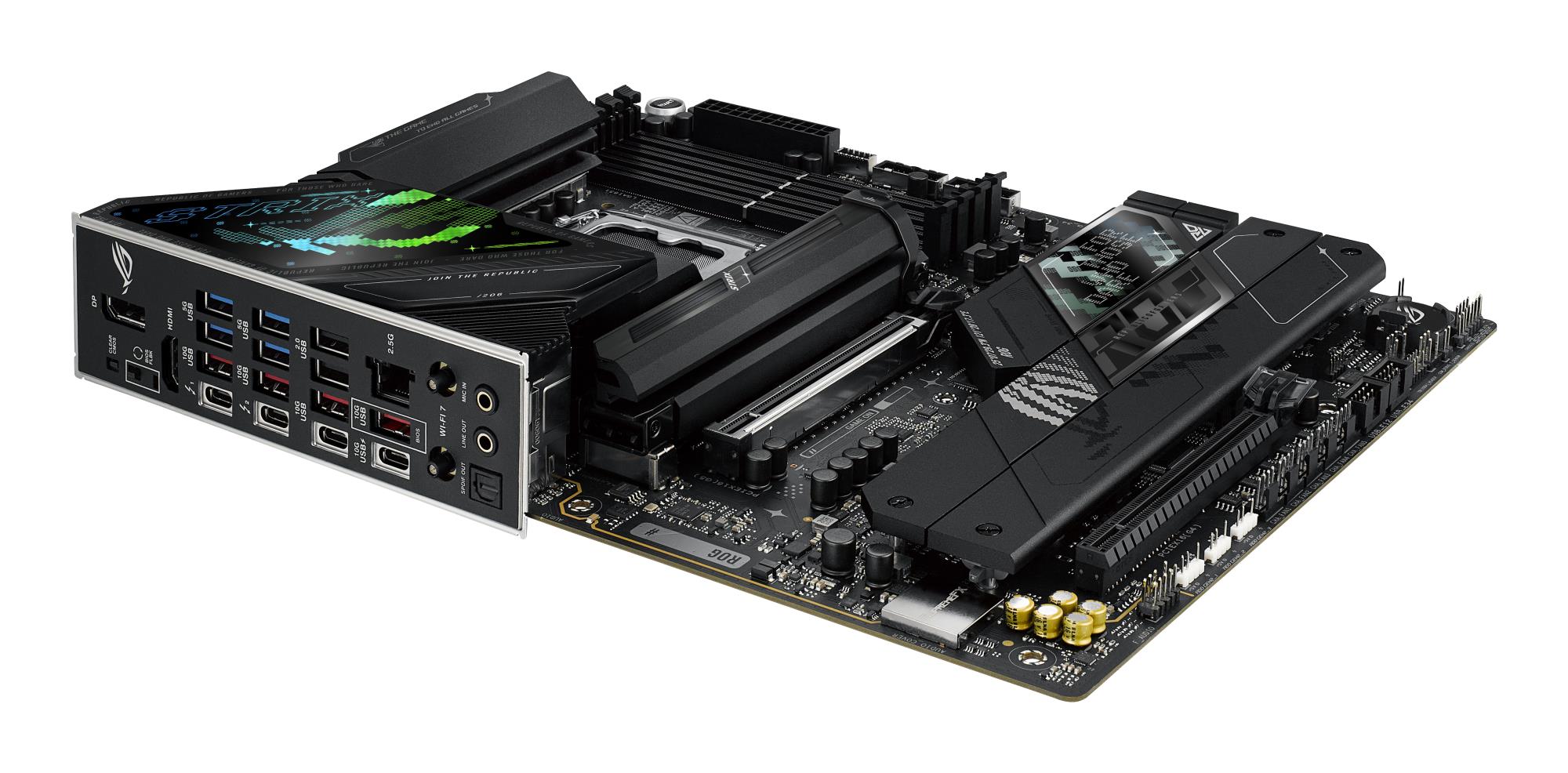

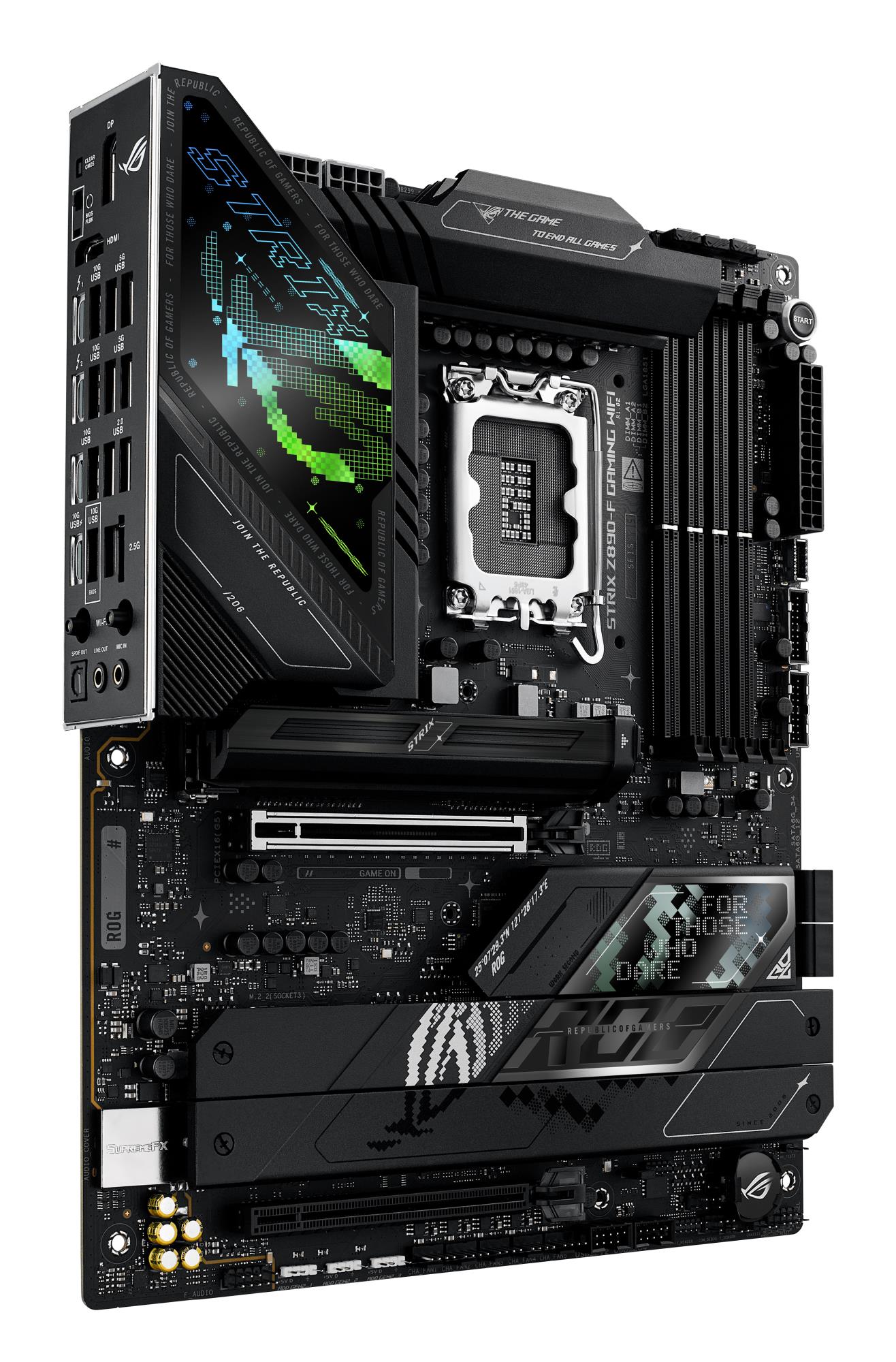

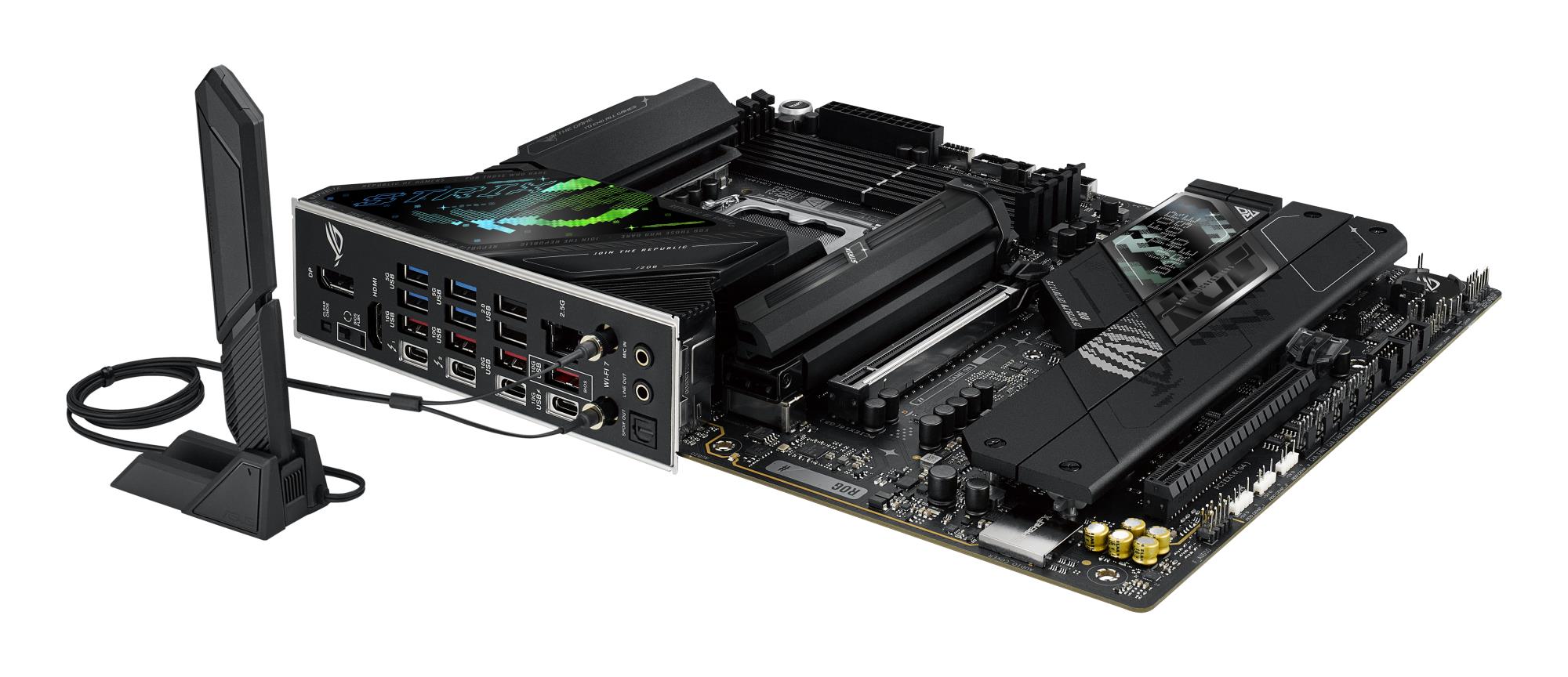

ROG STRIX Z890-F gaming wifi
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customizable aesthetic that can be either subtle or bold.
| Kaal | 1,7 kg |
|---|---|
| Vendor | ASUS |
| M.2 | 5 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.0 | Yes |
| USB 3.1 | 4 |
| USB-C | Yes |
| USB-C w/Thunderbolt | 2 |
| Bluetooth | Yes |
| SATA | Yes |
| SATA 3.0 | Yes |
| WiFi | Yes |
| Model | ROG STRIX Z890-F GAMING WIFI |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Memory slots | 4 |
| Integrated video | Yes |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC4080 |
| RAID | SATA 0, 1, 5, 10 |

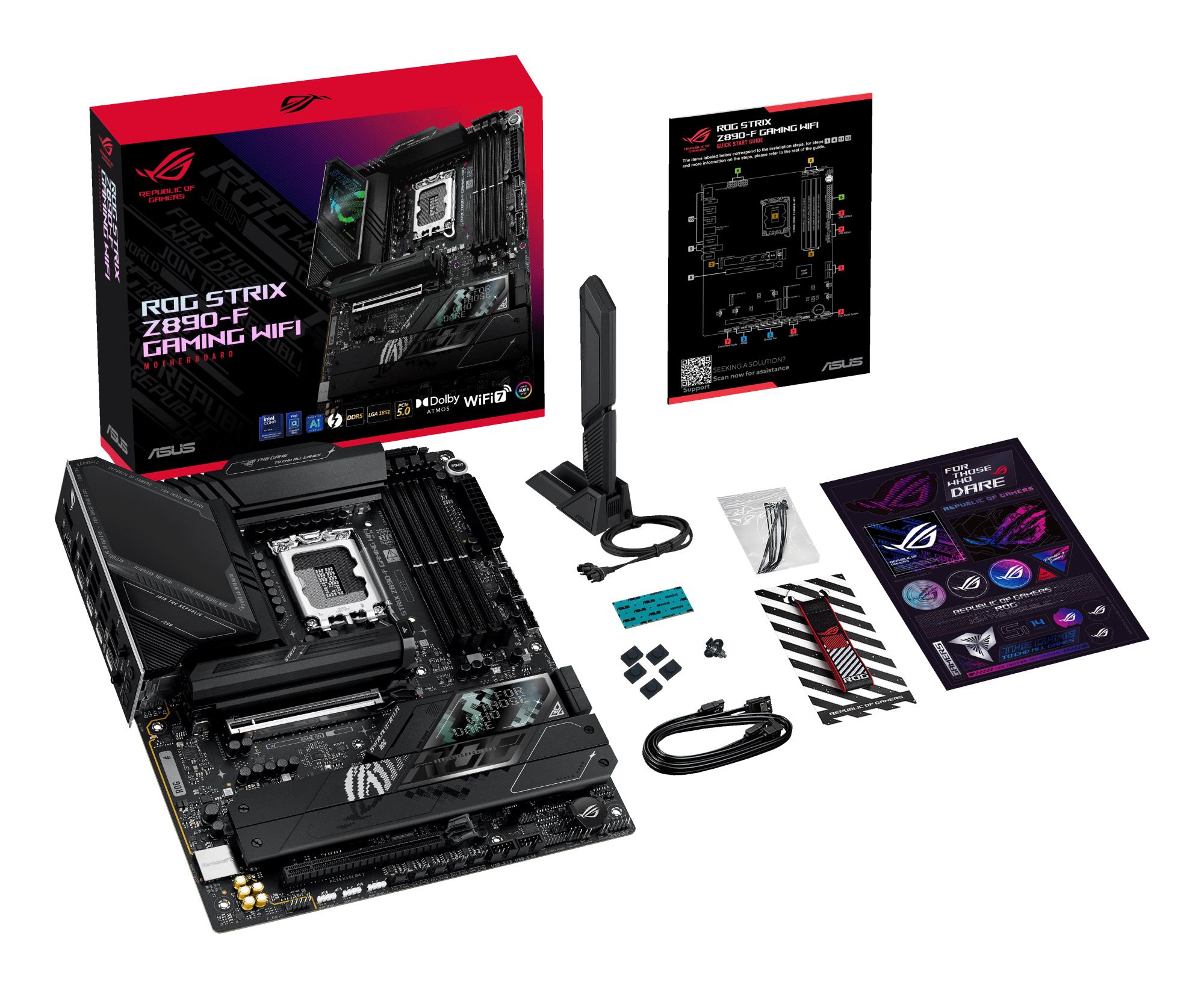

| Included Accessories | Cables: |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.008186 cubm |
| Product Net Weight | 1.7 kg |
| Unit Calculated Weight | 2.6 kg |
| Summary | ASUS ROG STRIX Z890-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8600 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 9 |
| RAID levels | 0/1/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 5 |
| Number of SATA III connectors | 4 |
| Thunderbolt headers | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel Z890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Yes |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1980 g |
| Package width | 353 mm |
| Depth | 244 mm |
| Width | 305 mm |
| Manufacturer Code | ROG STRIX Z890-F GAMING WIFI |
| ELKO Code | 1425905 |
| Warranty | 36 |
| Expansion slots — M.2 | 5 |
| Expansion slots — PCI-Express 4.0 16x | 1 |
| Expansion slots — PCI-Express 5.0 16x | 1 |

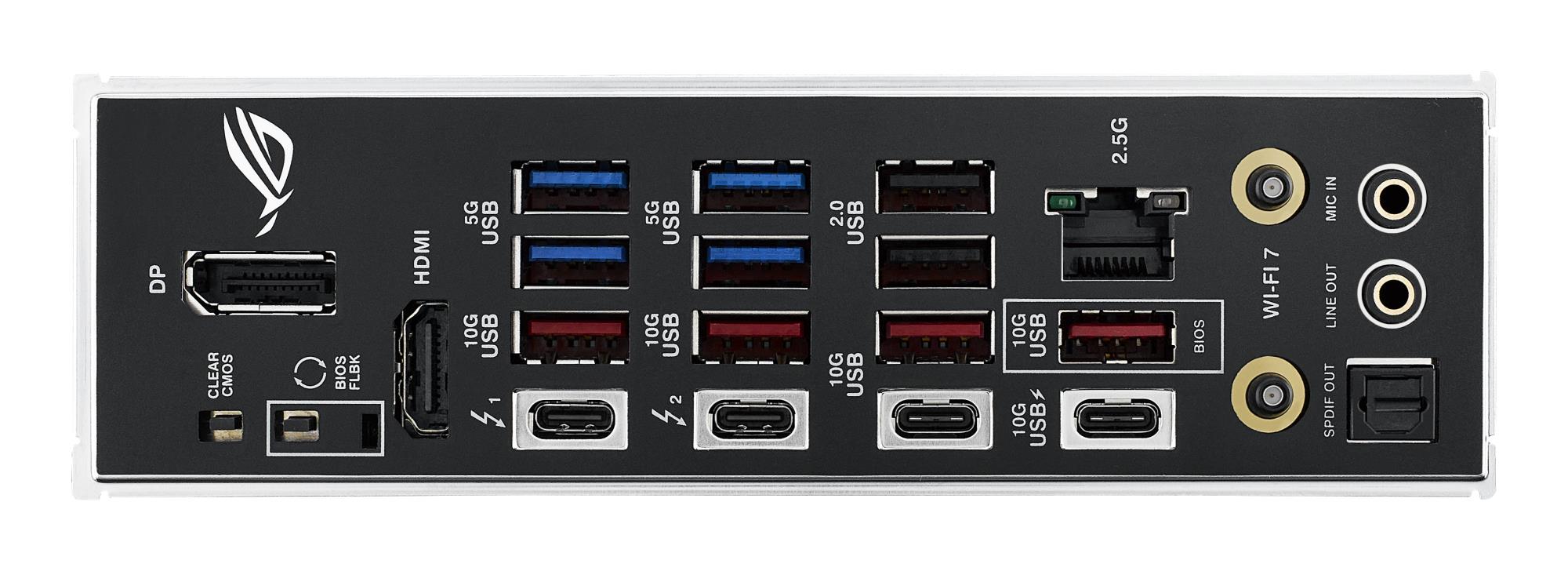

| Input/Output connectors — Audio-In | 1 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — DisplayPort | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — Optical S/PDIF | 1 |
| Input/Output connectors — RJ45 | 1 |
| Input/Output connectors — USB 2.0 | 2 |
| Input/Output connectors — USB 3.0 | 4 |
| Input/Output connectors — USB 3.1 | 4 |
| Input/Output connectors — USB-C | 2 |
| Input/Output connectors — USB-C w/Thunderbolt | 2 |
| Interface — Bluetooth | Yes |
| Interface — SATA | Yes |
| Interface — SATA 3.0 | Yes |
| Interface — USB 2.0 | Yes |
| Interface — USB 3.0 | Yes |
| Interface — USB-C | Yes |
| Interface — WiFi | Yes |
