ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
1 laos
1 laos

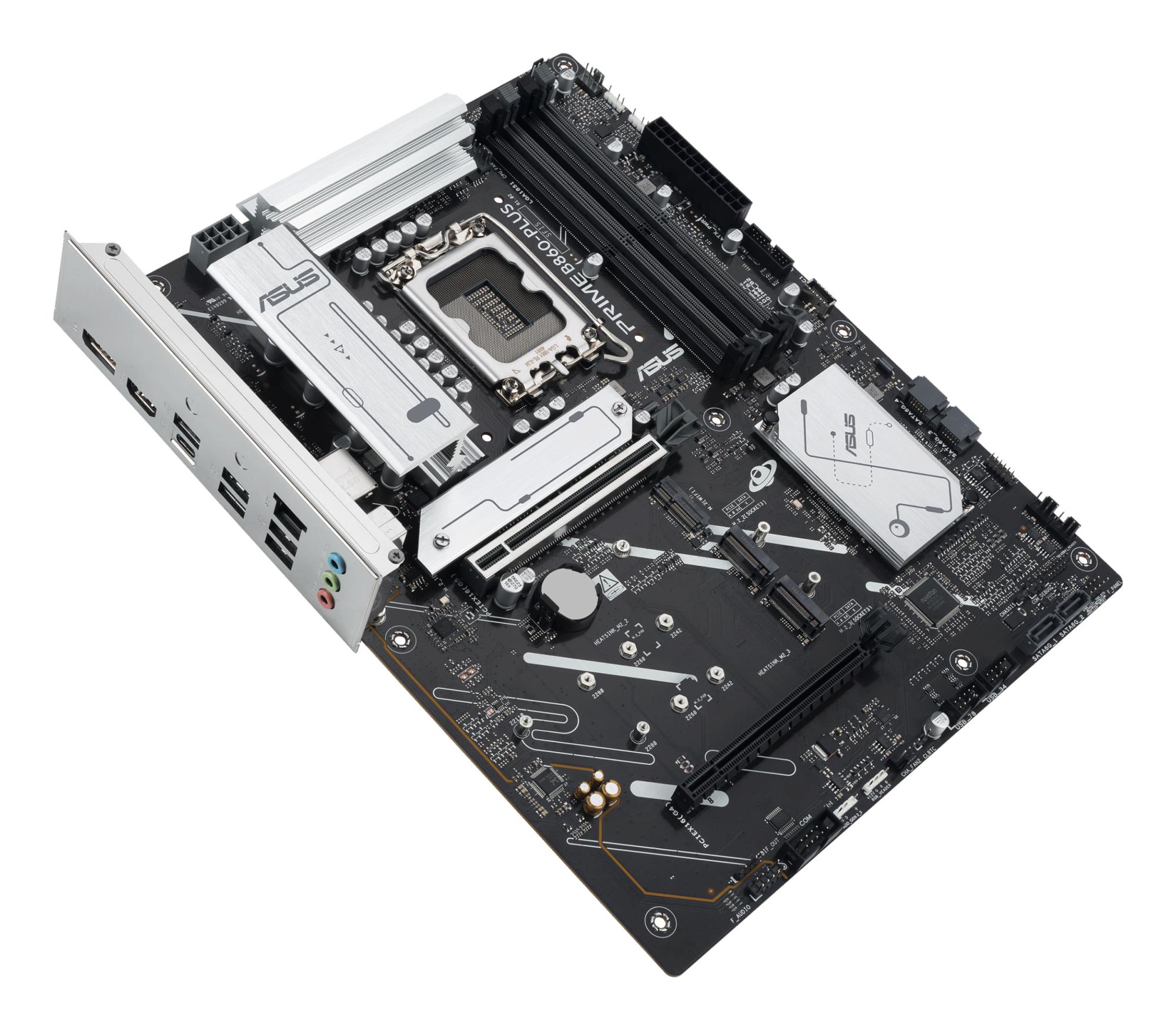

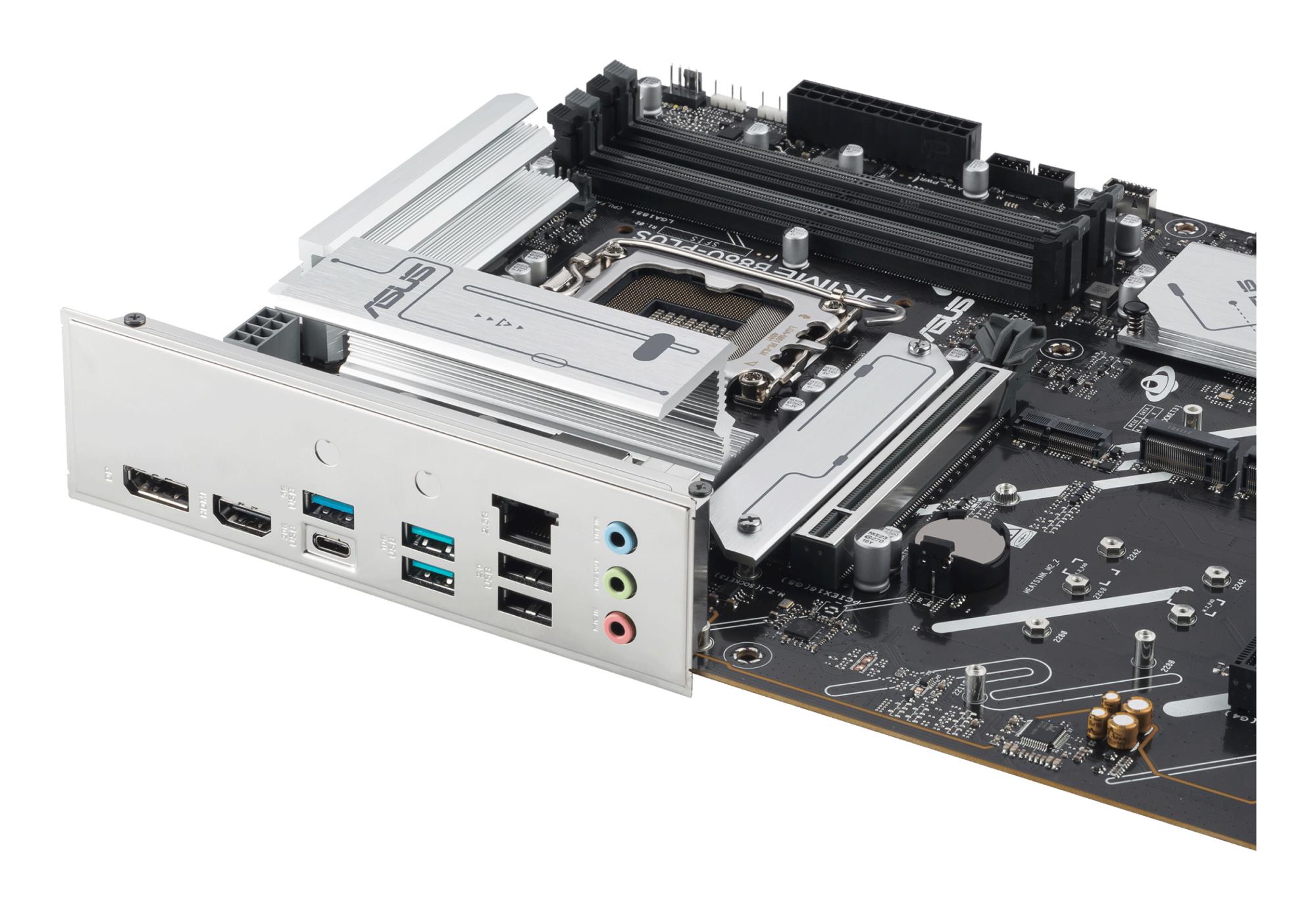

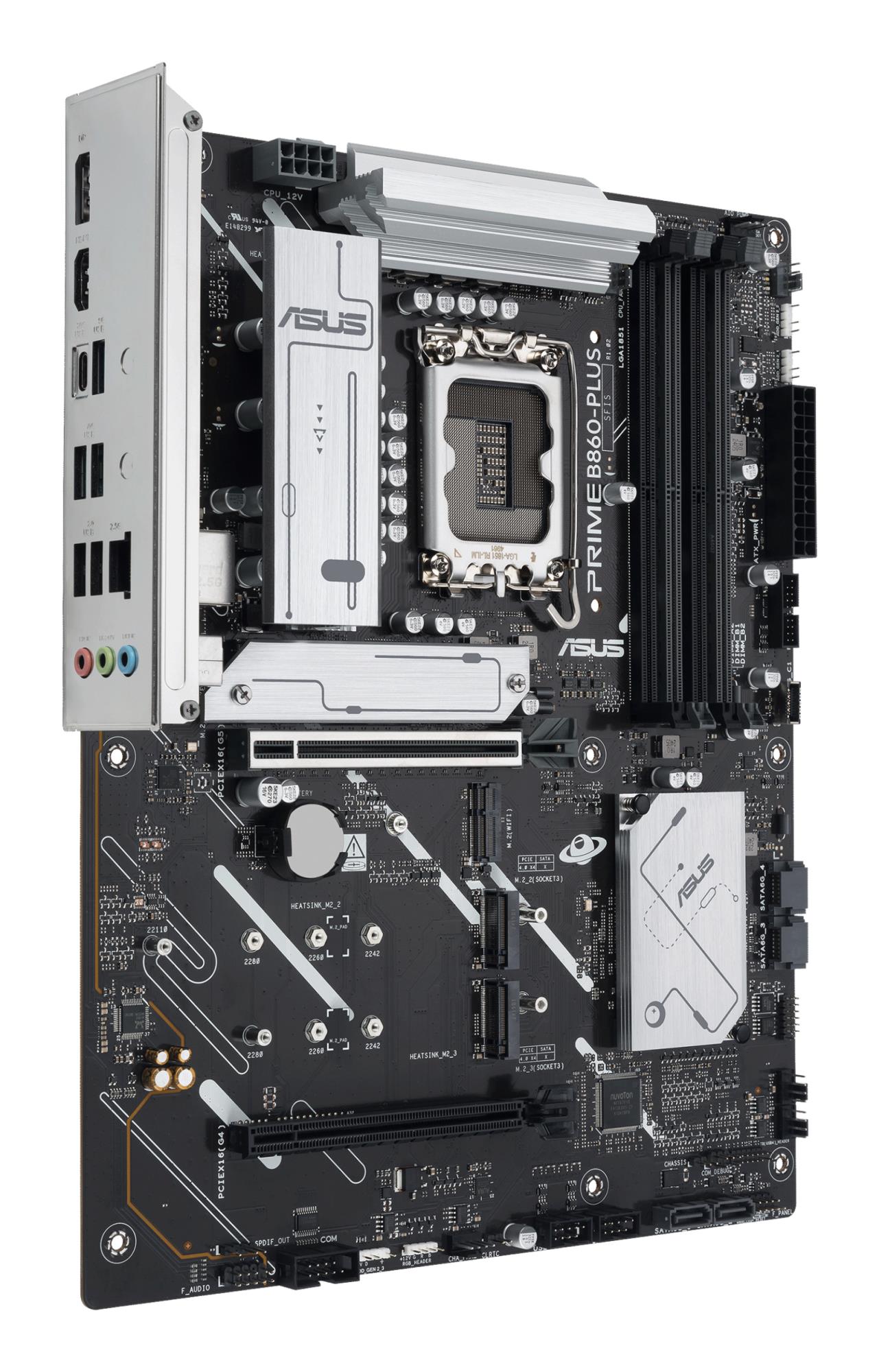

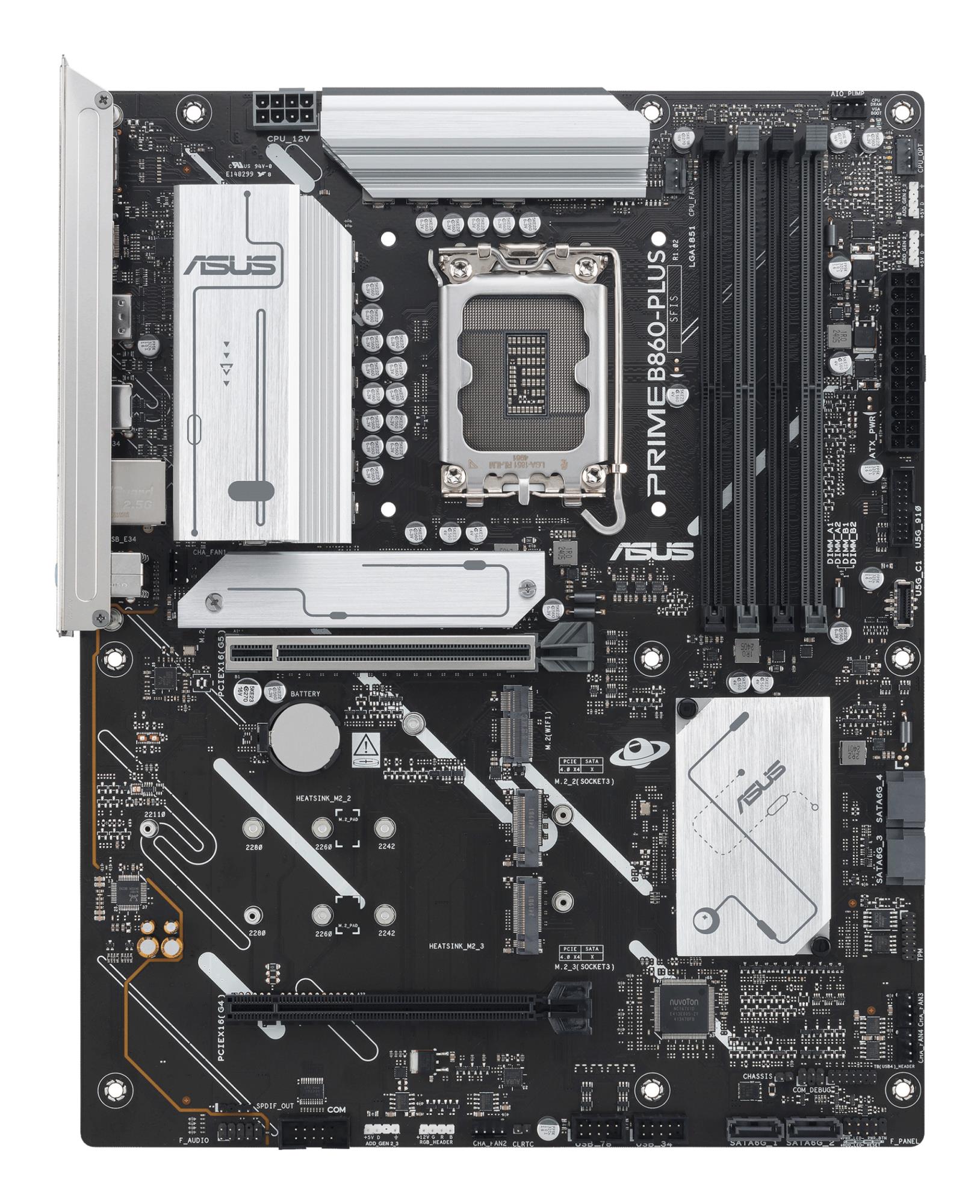

Prime B860-PLUS-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
| Vendor | ASUS |
|---|---|
| M.2 | 3 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 5.0 16x | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 3 |
| USB-C | 1 |
| SATA | Yes |
| Model | PRIME B860-PLUS-CSM |
| Chipset | Intel B860 Express |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 8666 MHz |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |

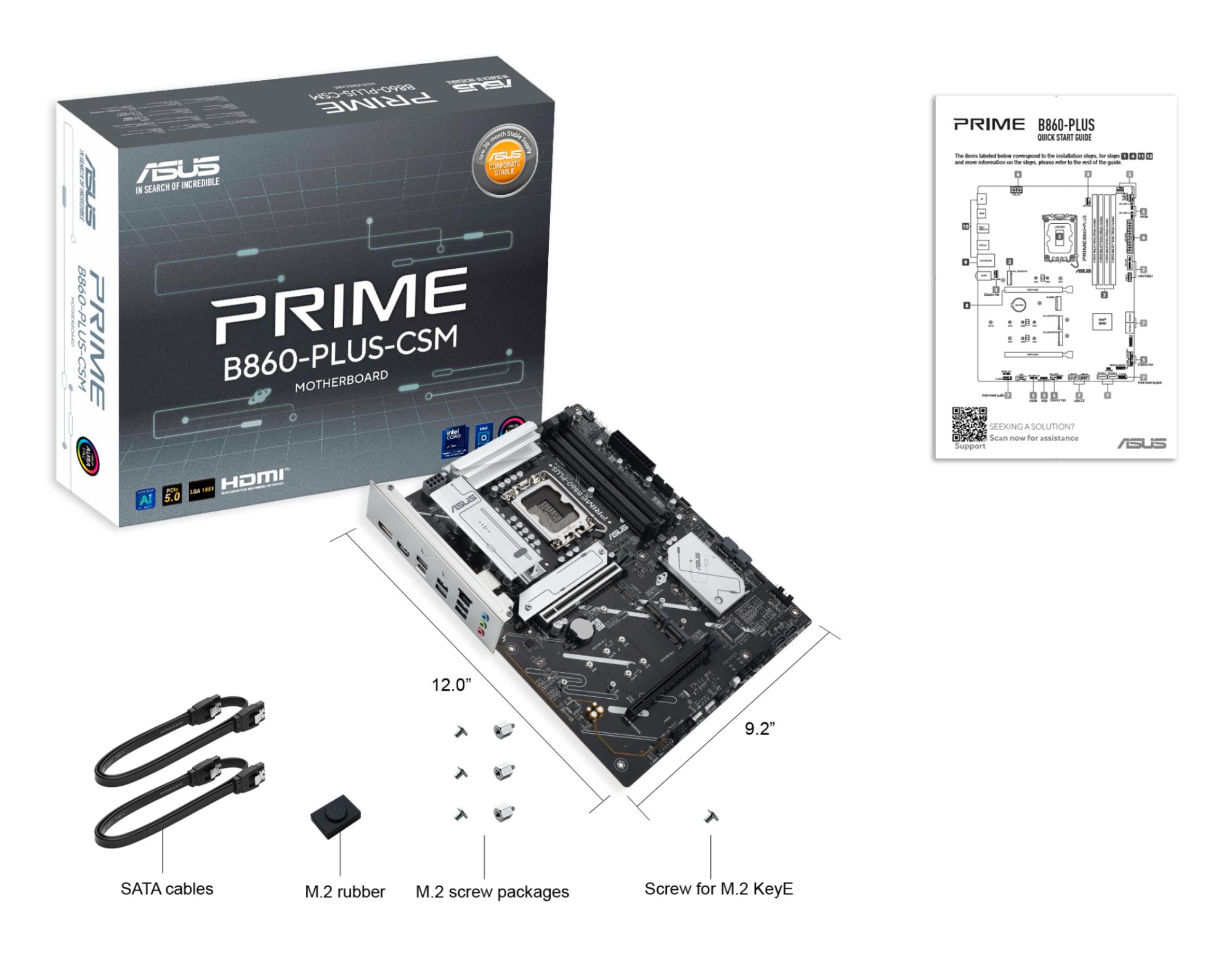

| Included Accessories | Cables |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008214 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 1.6 kg |
| Summary | ASUS PRIME B860-PLUS-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8666 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| Supported storage drive types | HDD & SSD |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Number of CPU fan connectors | 1 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| S/PDIF out connector | Yes |
| Thunderbolt headers | 1 |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |

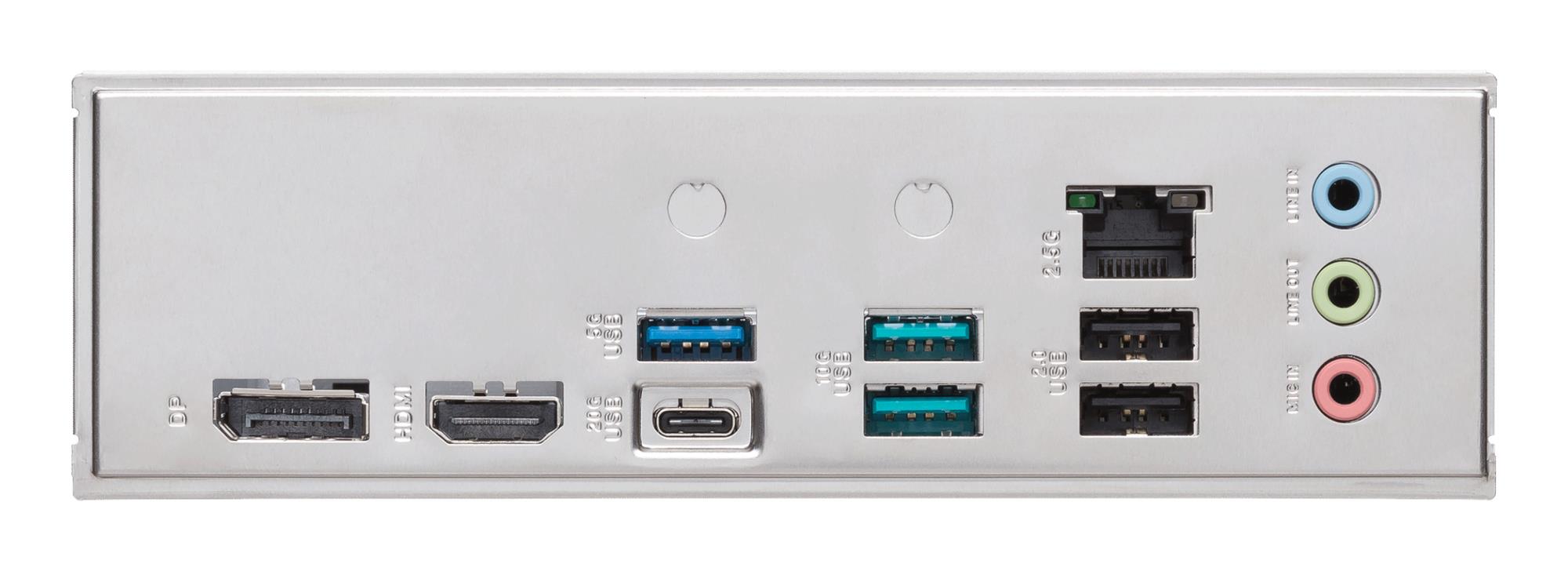

| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | Intel B860 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Product colour | Multicolour |
| Windows operating systems supported | Windows 10 x64/Windows 11 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Package depth | 372 mm |
| Package height | 302 mm |
| Package weight | 1558 g |
| Package width | 377 mm |
| Depth | 244 mm |
| Height | 49 mm |
| Width | 305 mm |
| Weight | 896 g |
| Manufacturer Code | PRIME B860-PLUS-CSM |
| ELKO Code | 1446144 |
| Warranty | 36 |
