ASUS 90MB1FY0-M0EAY0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: SSD. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Laost otsas
Laost otsas

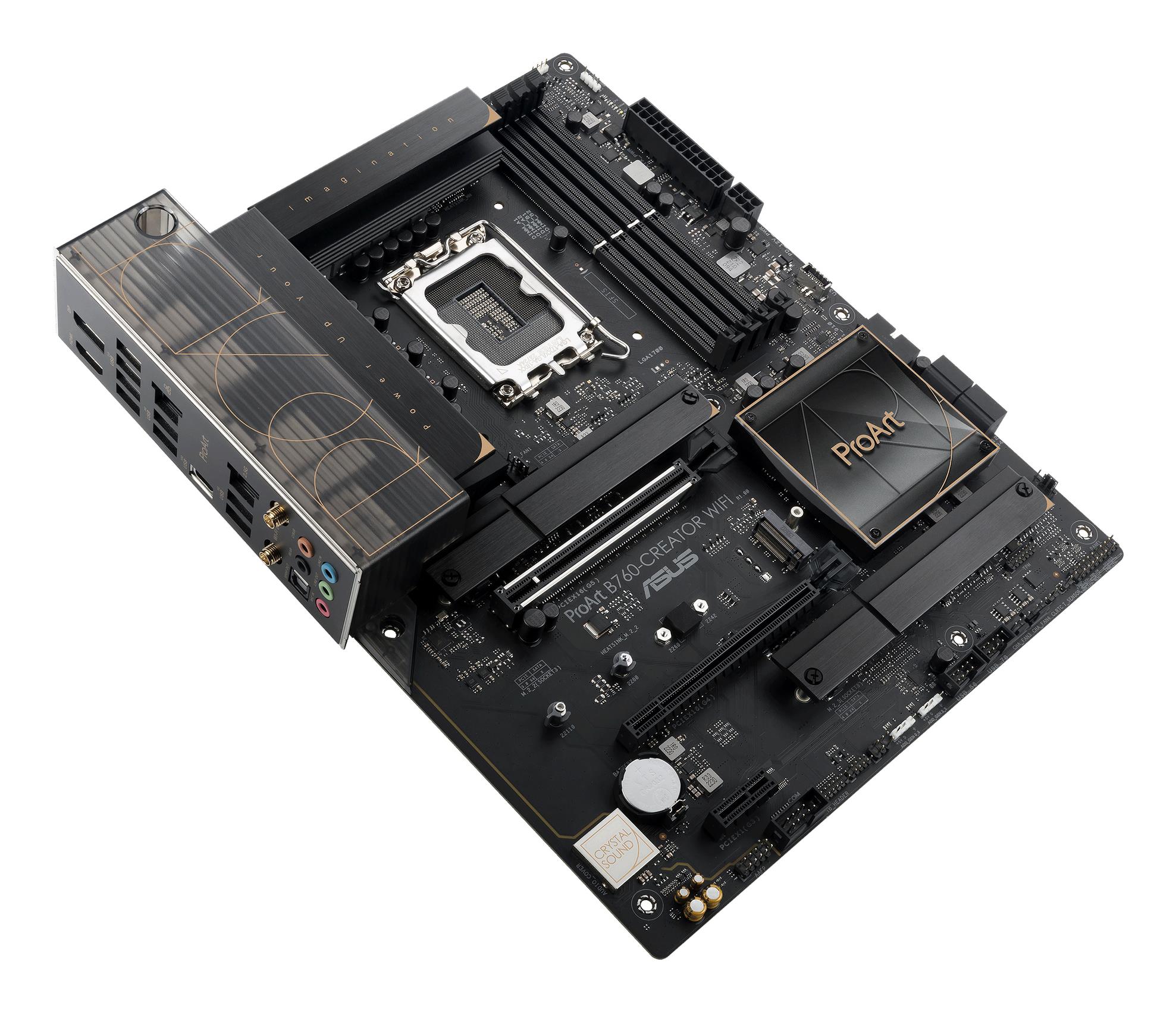

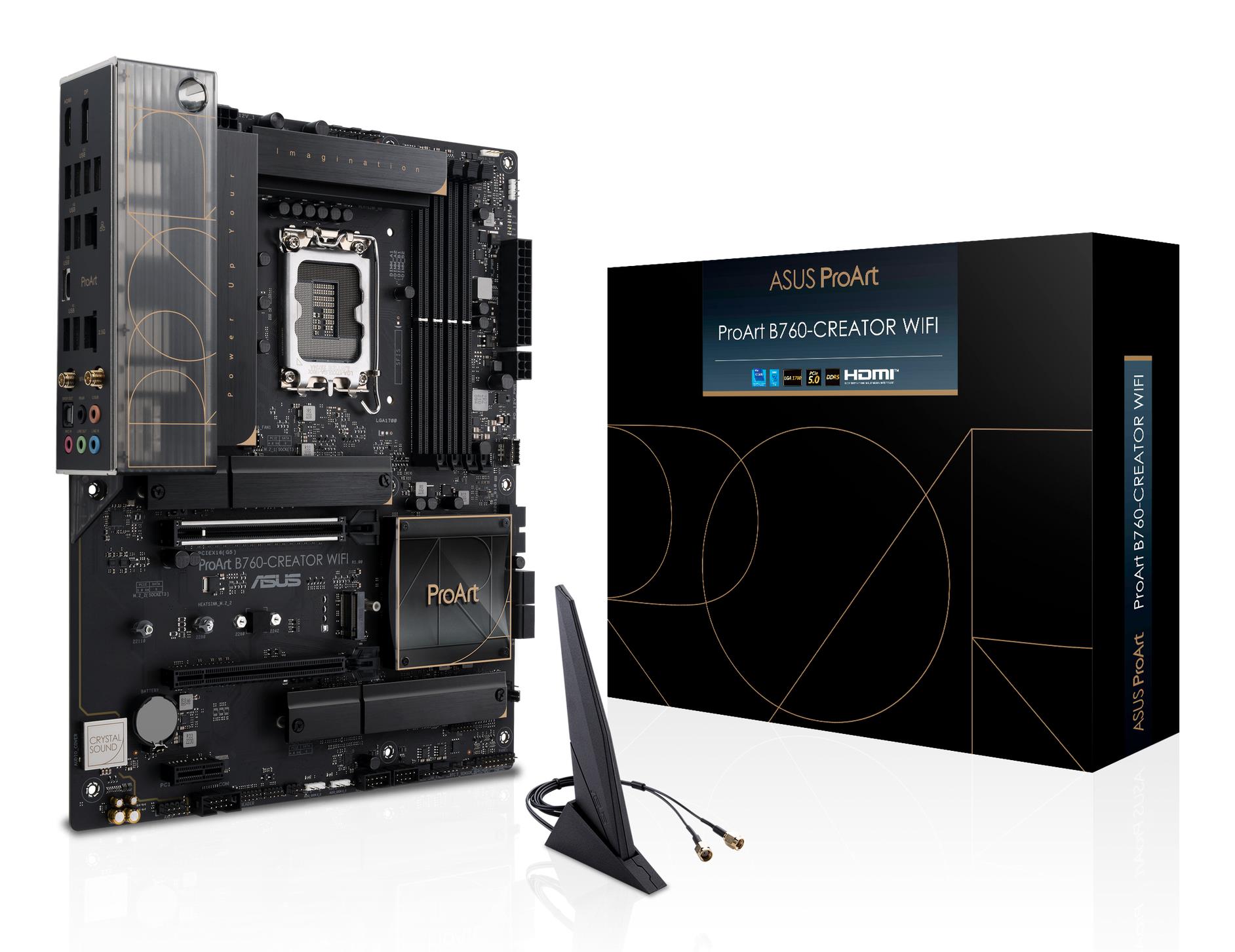

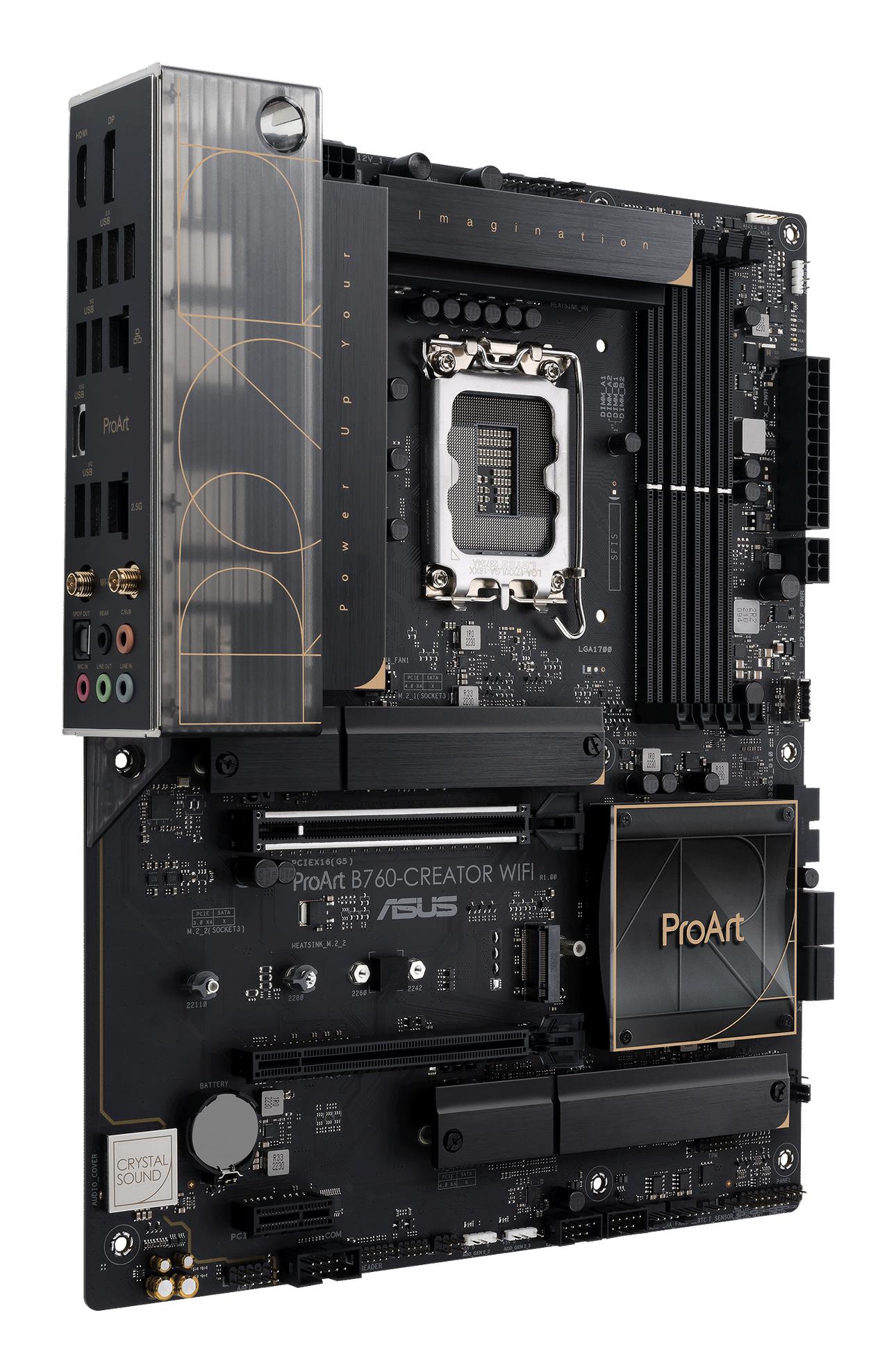

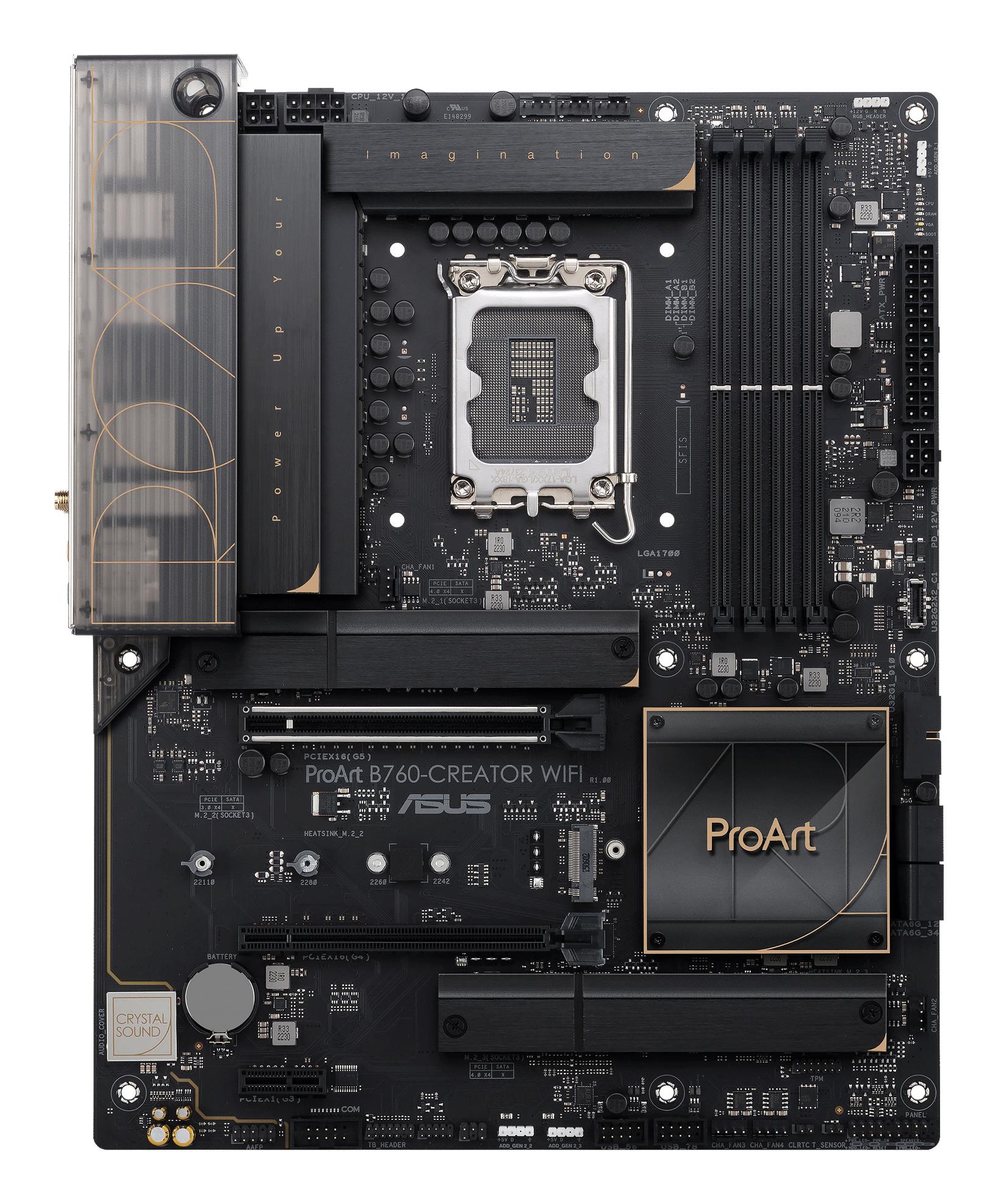

ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
| Kaal | 1,5 kg |
|---|---|
| Vendor | ASUS |
| M.2 | 3 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 2 |
| USB 2.0 | 4 |
| USB 3.2 | Yes |
| USB-C | 1 |
| SATA | Yes |
| Model | ProArt B760-CREATOR WIFI |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Included Accessories | 2 x SATA 6Gb/s cables, |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.008186 cubm |
| Product Net Weight | 1.5 kg |
| Unit Calculated Weight | 2.13 kg |
| Summary | ASUS 90MB1FY0-M0EAY0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 3.0, PCI Express 4.0, Supported storage drive types: SSD. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory | 192 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported storage drive interfaces | M.2,PCI Express 3.0,PCI Express 4.0 |
| Supported storage drive types | SSD |
| ATX Power connector (24-pin) | Yes |
| Audio connector | Yes |
| Power fan connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| Headphone outputs | 5 |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A/USB Type-C |
| Ethernet interface type | 2.5 Gigabit Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | liquid |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Manufacturer Code | PROARTB760-CREATORWIFI |
| ELKO Code | 1412306 |
| Warranty | 36 |
| Expansion slots — M.2 | 3 |
| Expansion slots — PCI-Express 3.0 1x | 1 |
| Expansion slots — PCI-Express 4.0 16x | 1 |
| Expansion slots — PCI-Express 5.0 16x | 1 |

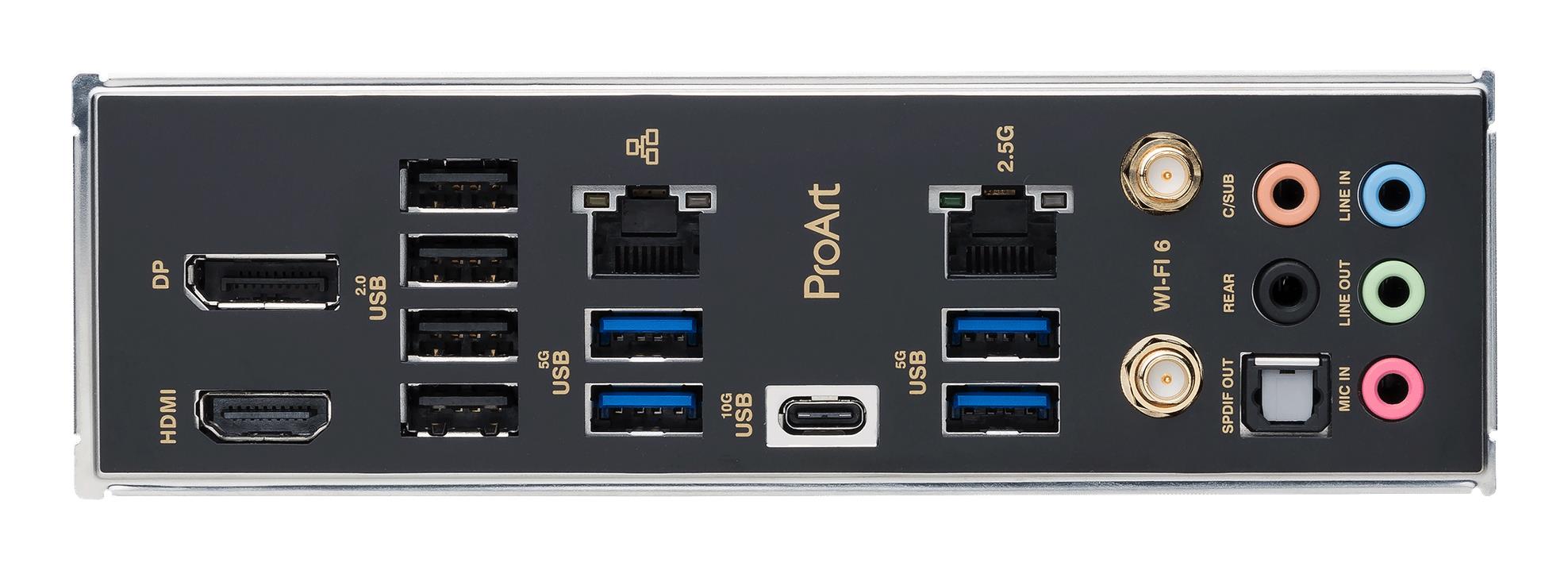

| Input/Output connectors — Audio port | 5 |
| Input/Output connectors — DisplayPort | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — Optical S/PDIF | 1 |
| Input/Output connectors — RJ45 | 2 |
| Input/Output connectors — USB 2.0 | 4 |
| Input/Output connectors — USB 3.2 | 5 |
| Input/Output connectors — USB-C | 1 |
| Interface — SATA | Yes |
| Interface — USB 3.2 | Yes |
