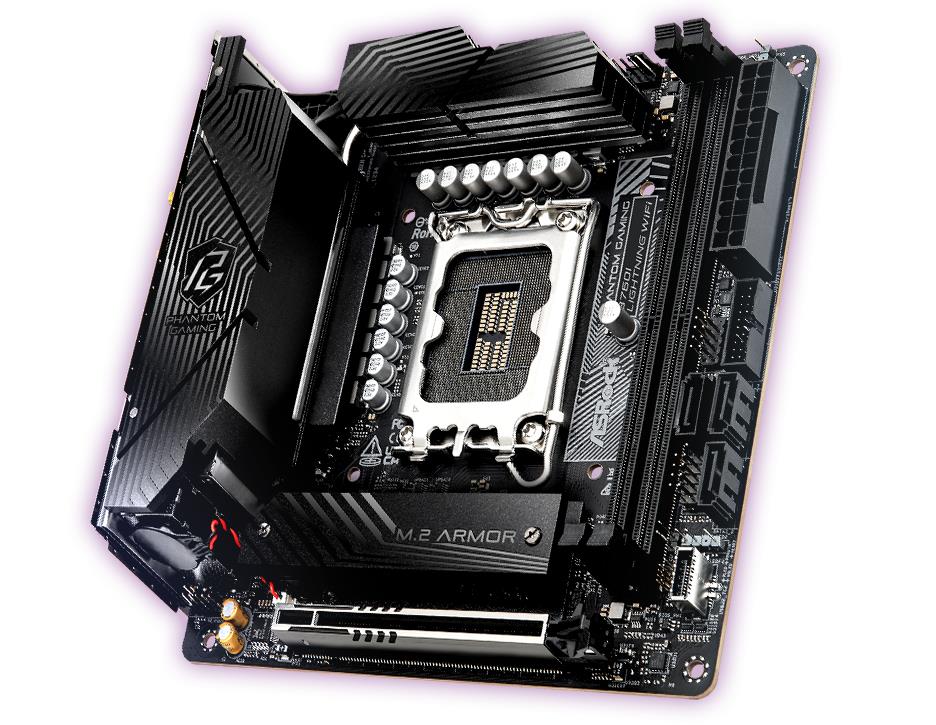

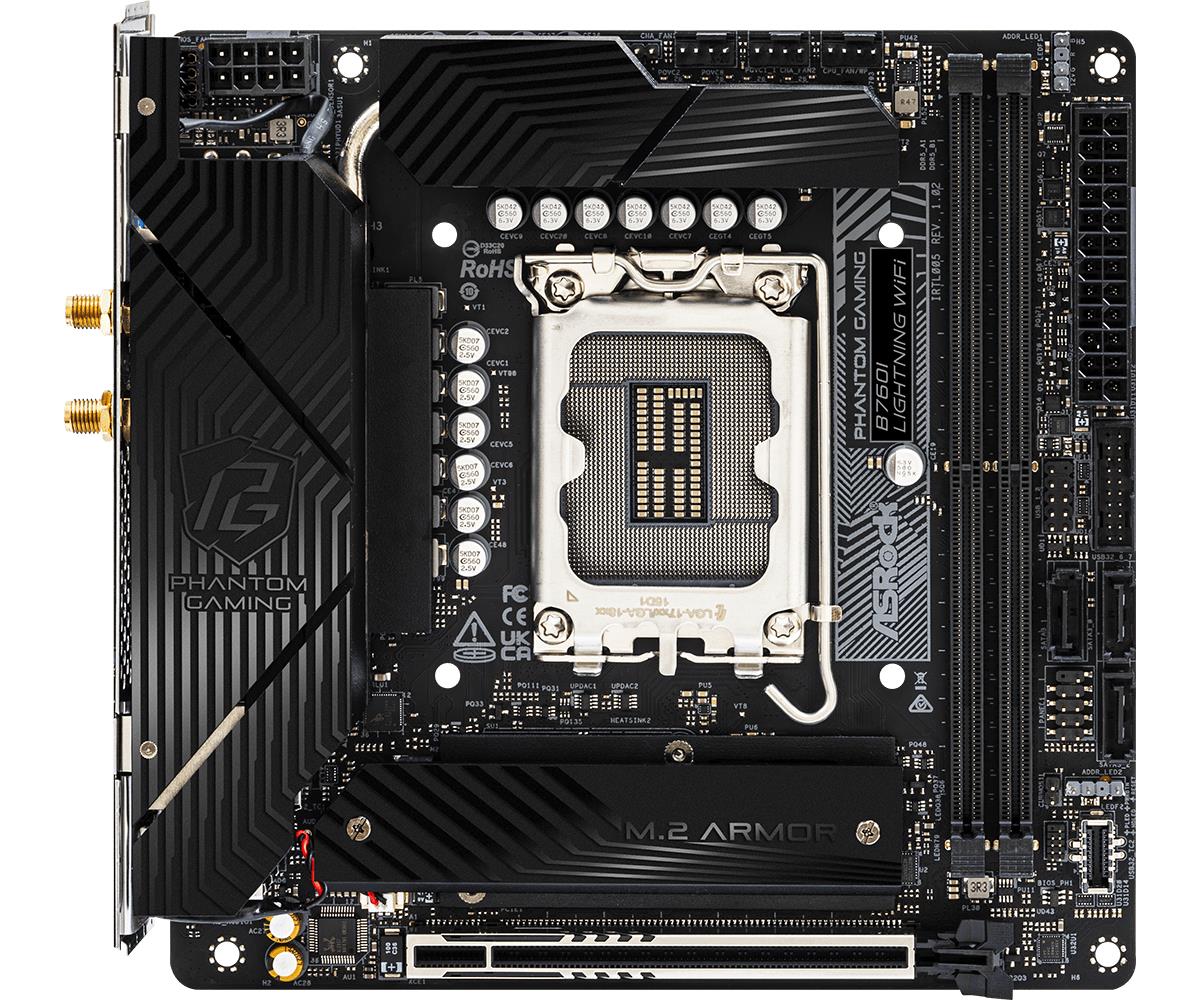

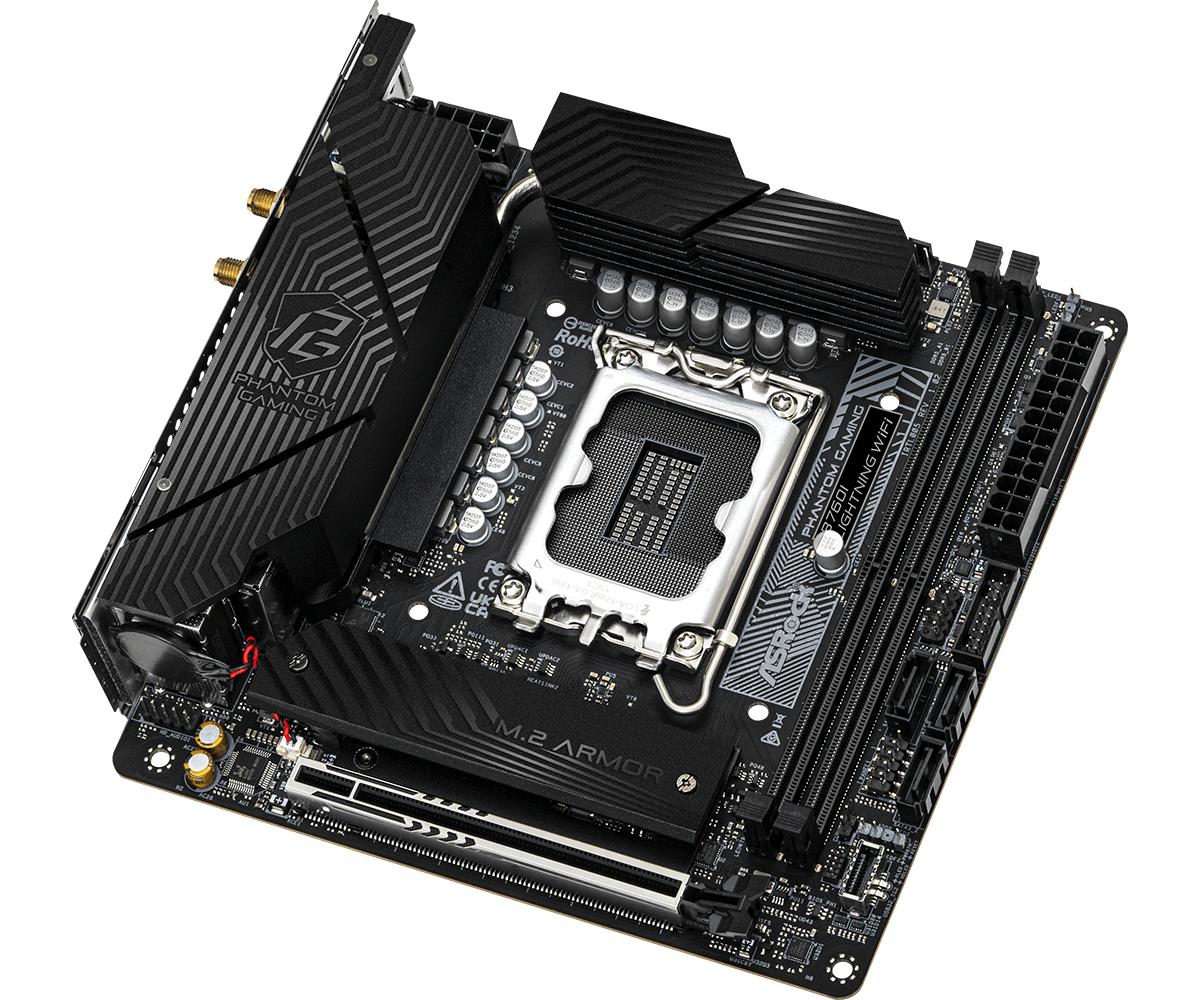

ASROCK Intel B760 Express LGA1700 Mini-ITX Memory DDR5 Memory slots 2 1x PCI-Express 5.0 16x 3x M.2 1x HDMI 1x Display Port 5x USB 3.2 1x USB-C 1x Optical S/PDIF 1x RJ45 2x Audio port B760ILIGHTNINGWIFI

Kirjeldus

Lightning series stands as a symbol of both speed and power. The design employs linear and angular elements, evoking the imagery of lightning – a spectacle of raw energy and breathtaking speed.

FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

14+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

POLYCHROME RGB
This motherboard features onboard addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

• Supports 14th, 13th & 12th Gen Intel® Core™ Processors
• 14+1+1 Phase Power Design, 110A SPS for VCore+GT
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 8600+ (OC)
• 1 PCIe 5.0 x16
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
• 2 Hyper M.2 (PCIe Gen4 x4), 2 SATA3

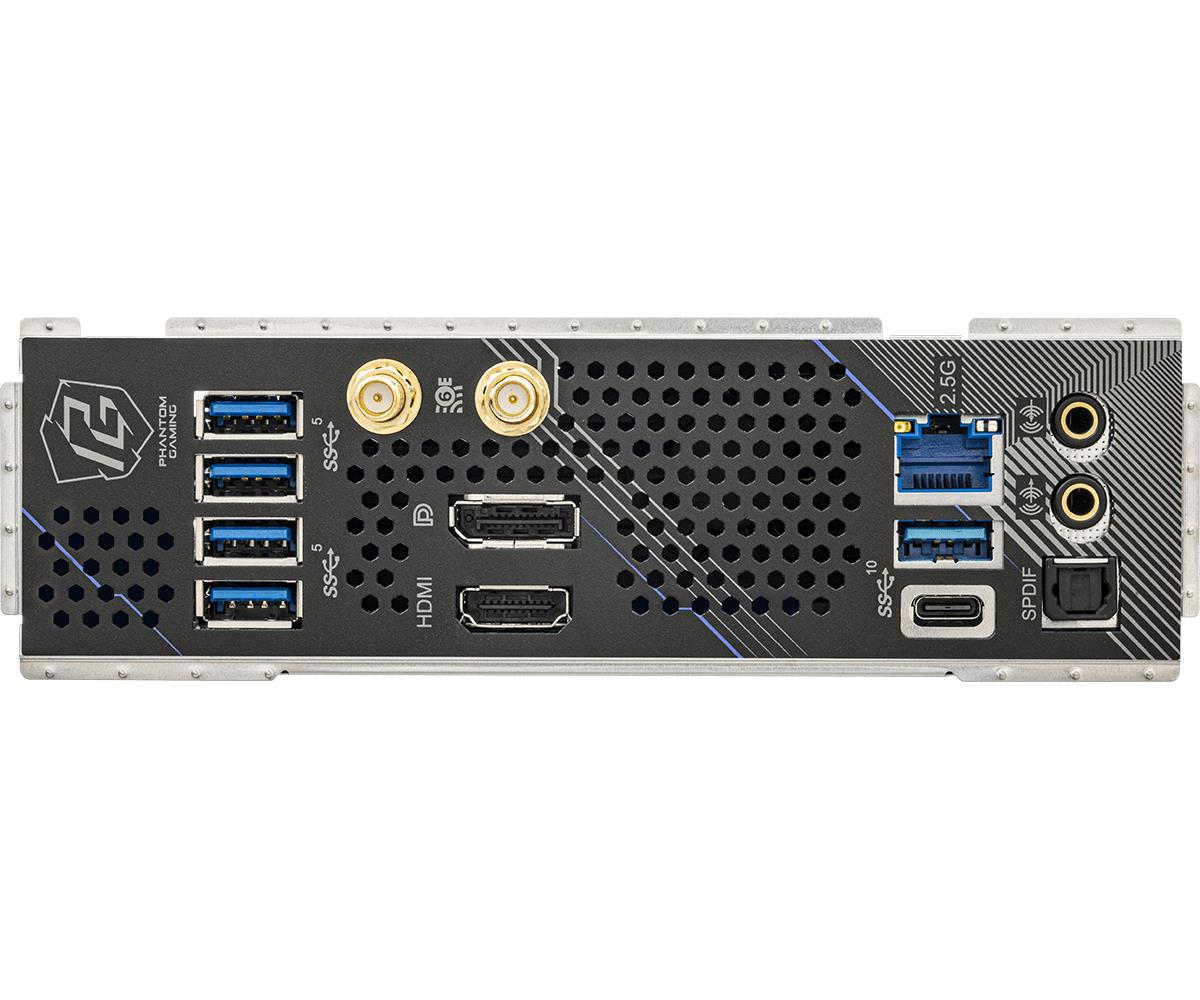

• 1 USB 3.2 Gen2 Type-C (Rear)
• 1 USB 3.2 Gen2 Type-A (Rear)
• 1 USB 3.2 Gen1 Type-C (Front)
• 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
• 2 USB 2.0 (Front)
• Phantom Gaming 2.5G LAN
• 802.11axe Wi-Fi 6E + Bluetooth
