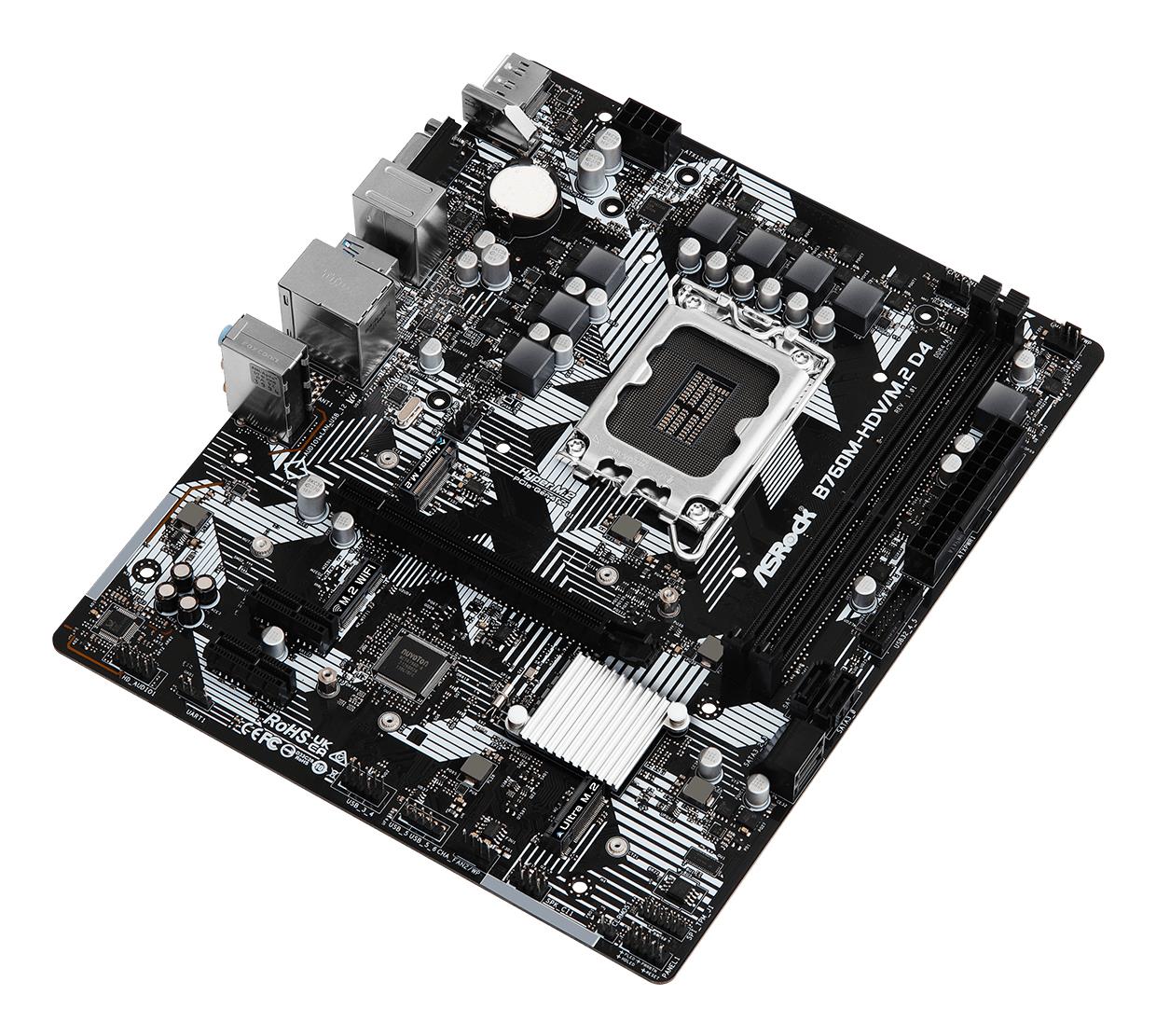

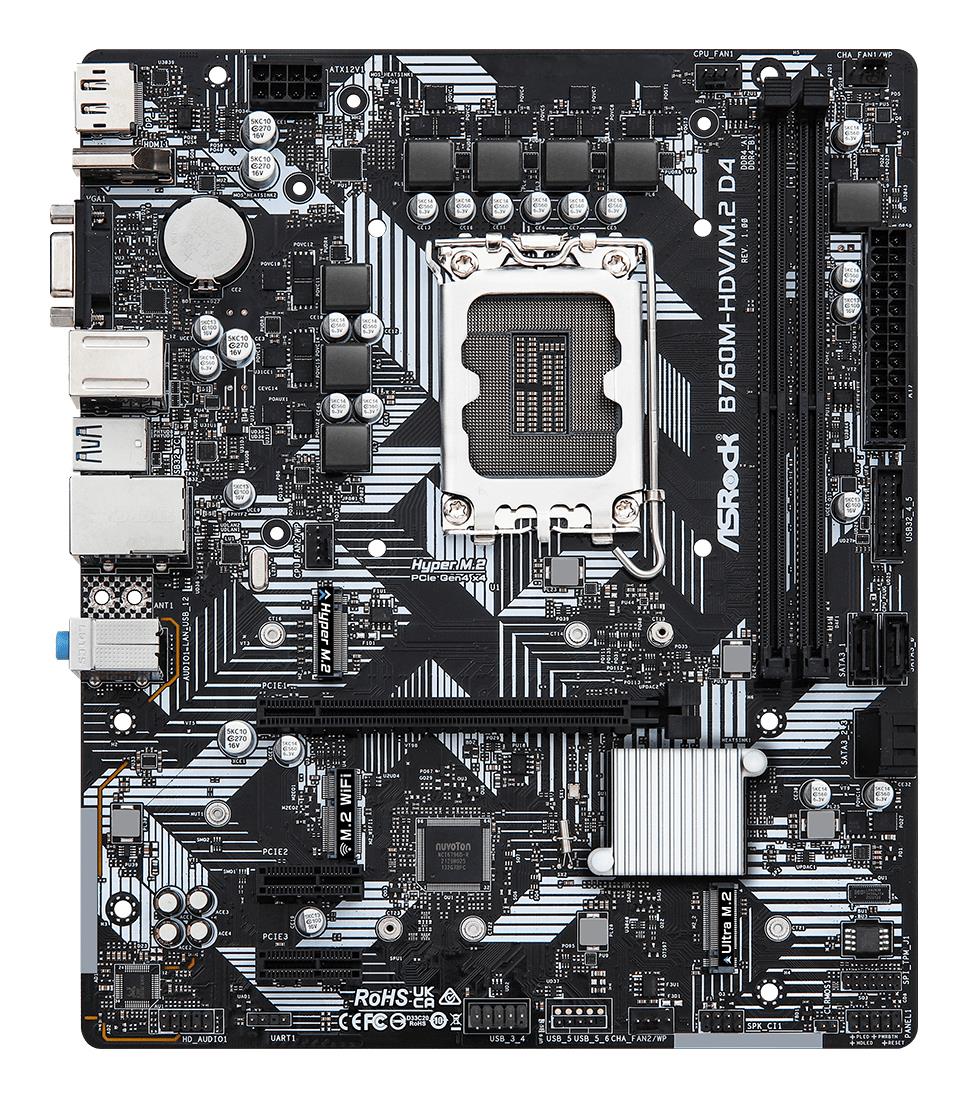

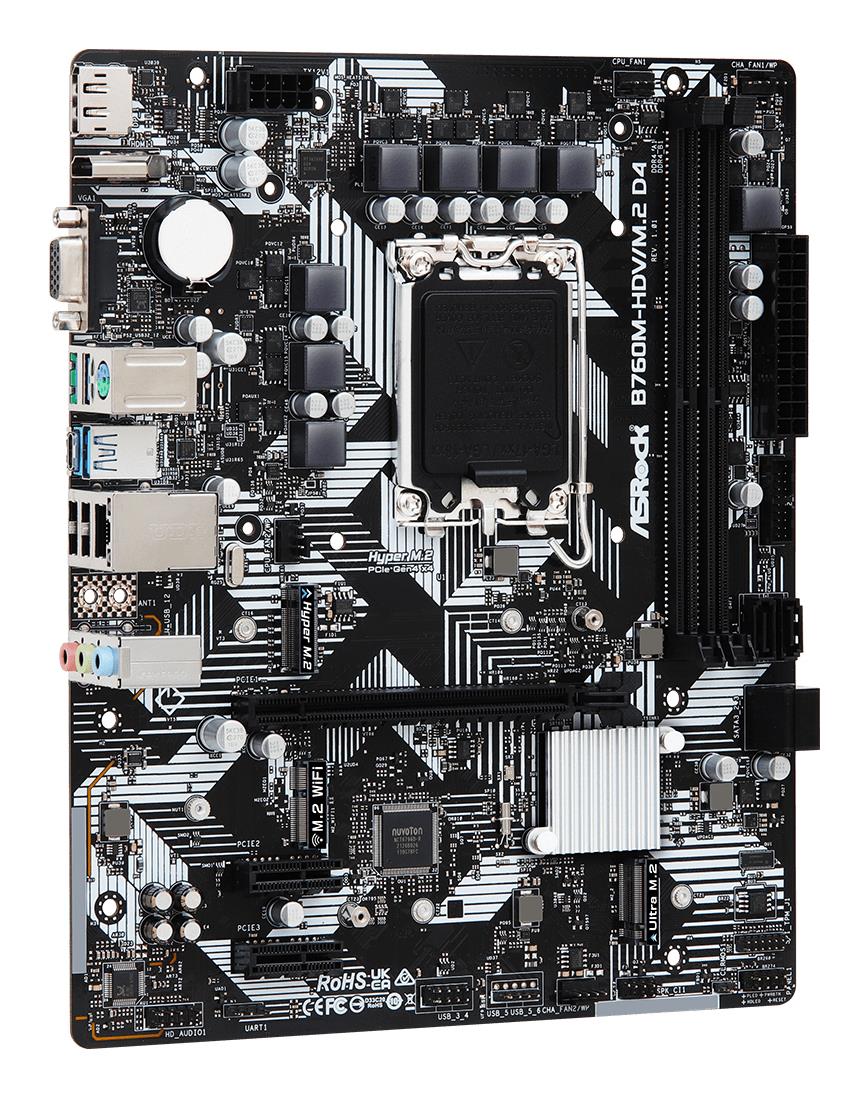

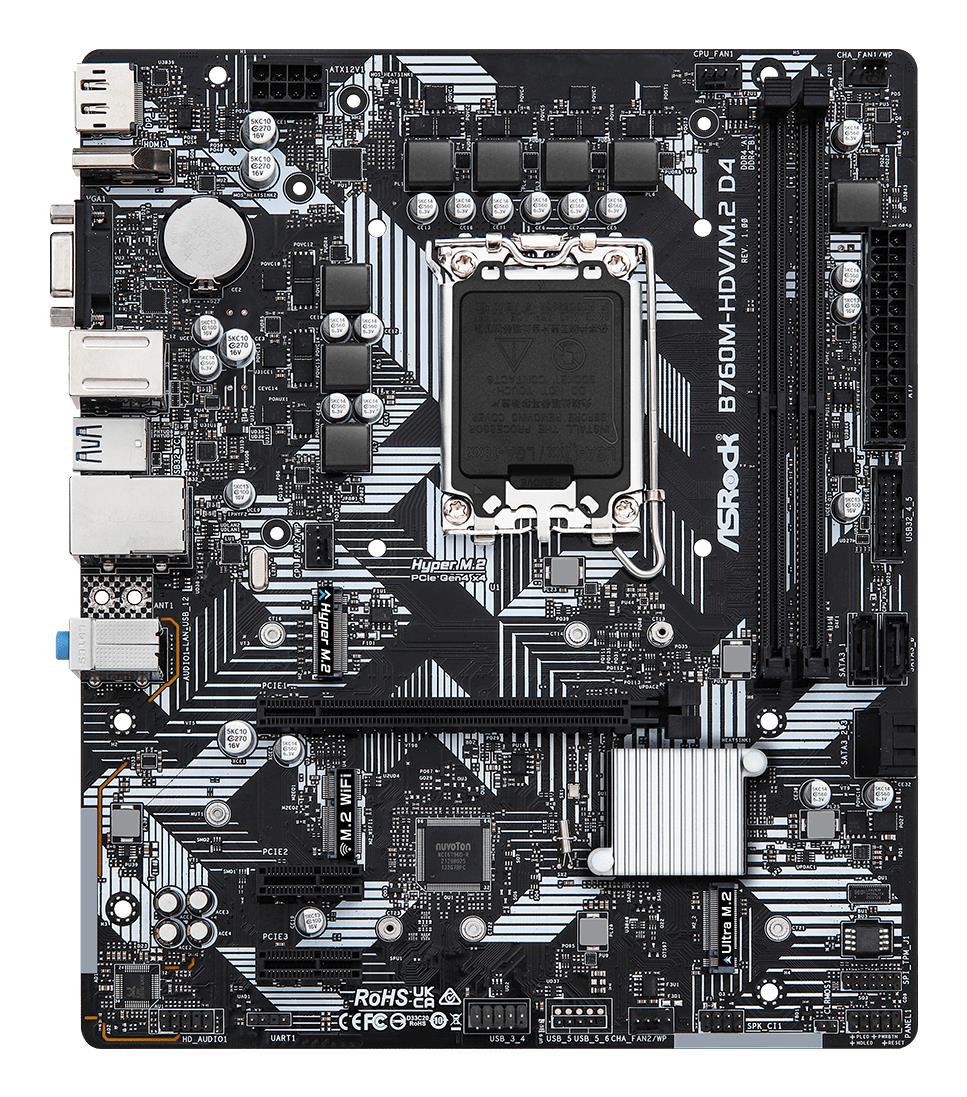

Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Laost otsas
Laost otsas
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
| Kaal | 0,65 kg |
|---|---|
| Vendor | ASROCK |
| M.2 | 2 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | 1 |
| SATA | Yes |
| Model | B760M-HDV/M.2 D4 |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 5333 MHz |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated LAN | Gigabit |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004066 cubm |
| Product Net Weight | 0.65 kg |
| Unit Calculated Weight | 0.76 kg |
| Summary | Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel |
| Compatible processor series | Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 3200/4400/5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Unbuffered memory | Yes |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel connector | Yes |
| Number of SATA III connectors | 4 |
| TPM connector | Yes |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Certification | – FCC, CE |
| Component for | PC |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 Education x64/Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Depth | 201 mm |
| Width | 244 mm |
| Cables included | SATA |
| Manufacturer Code | B760M-HDV/M.2D4 |
| ELKO Code | 1393844 |
| Warranty | 36 |
| Expansion slots — M.2 | 2 |
| Expansion slots — PCI-Express 3.0 1x | 2 |
| Expansion slots — PCI-Express 4.0 16x | 1 |
| Input/Output connectors — 15pin D-sub | 1 |
| Input/Output connectors — Audio port | 3 |
| Input/Output connectors — DisplayPort | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — PS/2 | 1 |
| Input/Output connectors — RJ45 | 1 |
| Input/Output connectors — USB 2.0 | 2 |
| Input/Output connectors — USB 3.2 | 3 |
| Input/Output connectors — USB-C | 1 |
| Interface — SATA | Yes |
| Interface — USB 2.0 | Yes |
| Interface — USB 3.2 | Yes |
